Gearshift Boot

REMOVAL
1. Remove shifter knob. Refer to gearshift knob removal and installation.

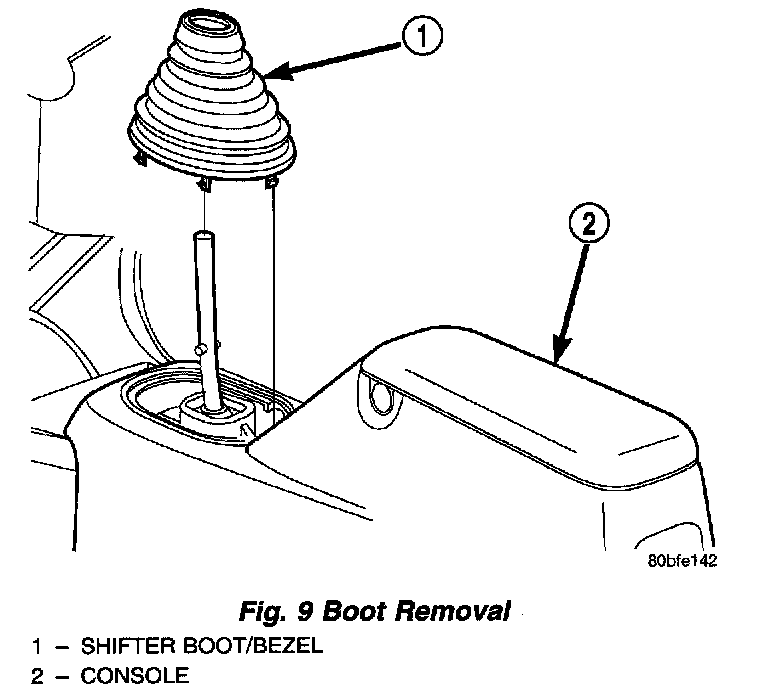

Fig. 9:

2. Remove shifter boot/bezel assembly from console. (Fig. 9).


INSTALLATION
1. Install boot/bezel assembly to console. Apply hand pressure until retaining clips are seated to the console assembly.
2. Install shifter knob.
