Transmission Oil Cooler

REMOVAL
1. Remove the upper radiator crossmember.
2. Remove the fan module.
3. Loosen the cooler line bracket on the left side of radiator.

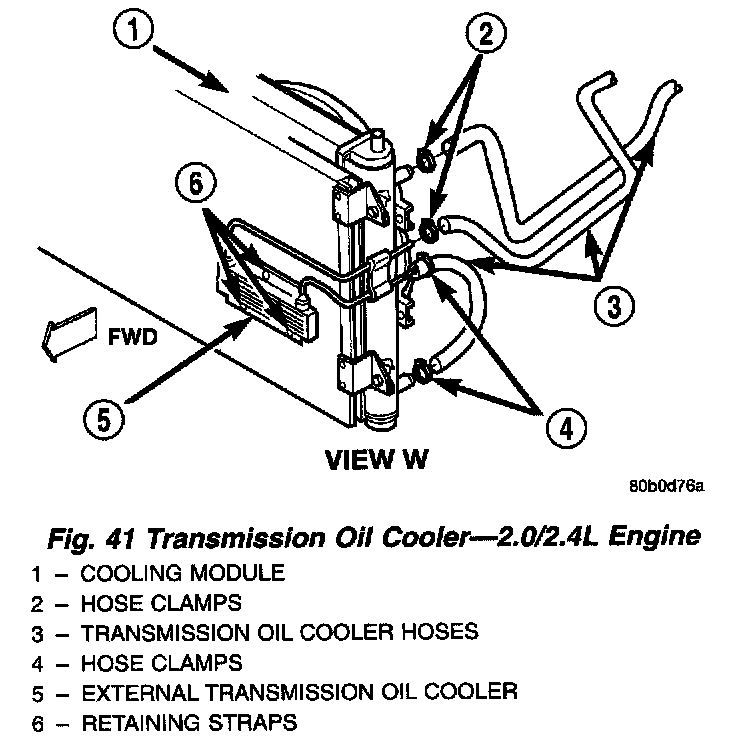

Fig. 41

4. Disconnect cooler lines from cooler (Fig. 41).
5. Remove cooler.

INSTALLATION
1. Install cooler.
2. Connect cooler lines.
3. Tighten cooler line support bracket.
4. Install cooling fan module.
5. Install upper radiator crossmember.
6. Check and adjust transmission oil level.
