Automatic Transmission/Transaxle: Tools and Equipment

SPECIAL TOOLS

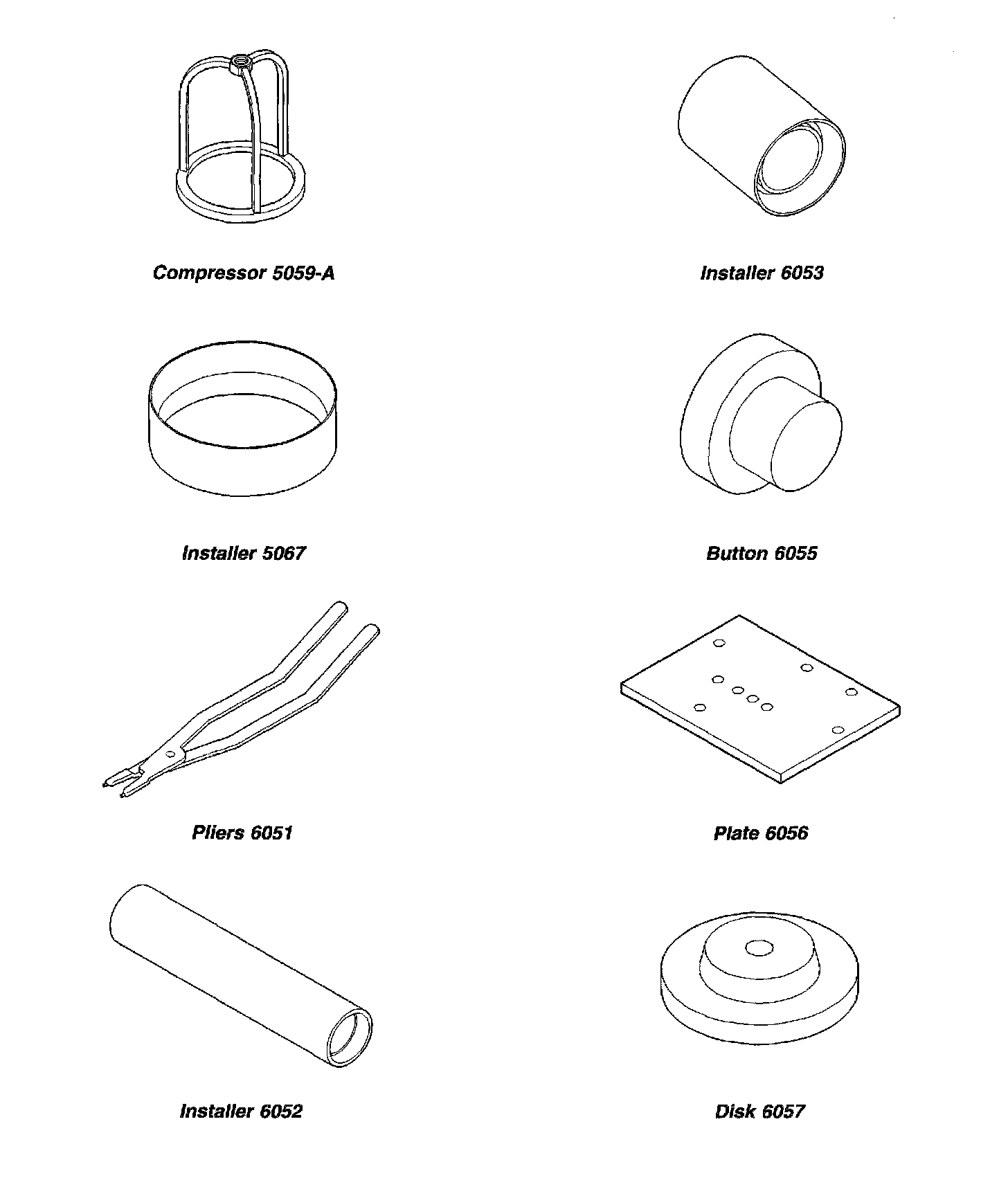

Special Tool Illustrations (Part 1 Of 7):

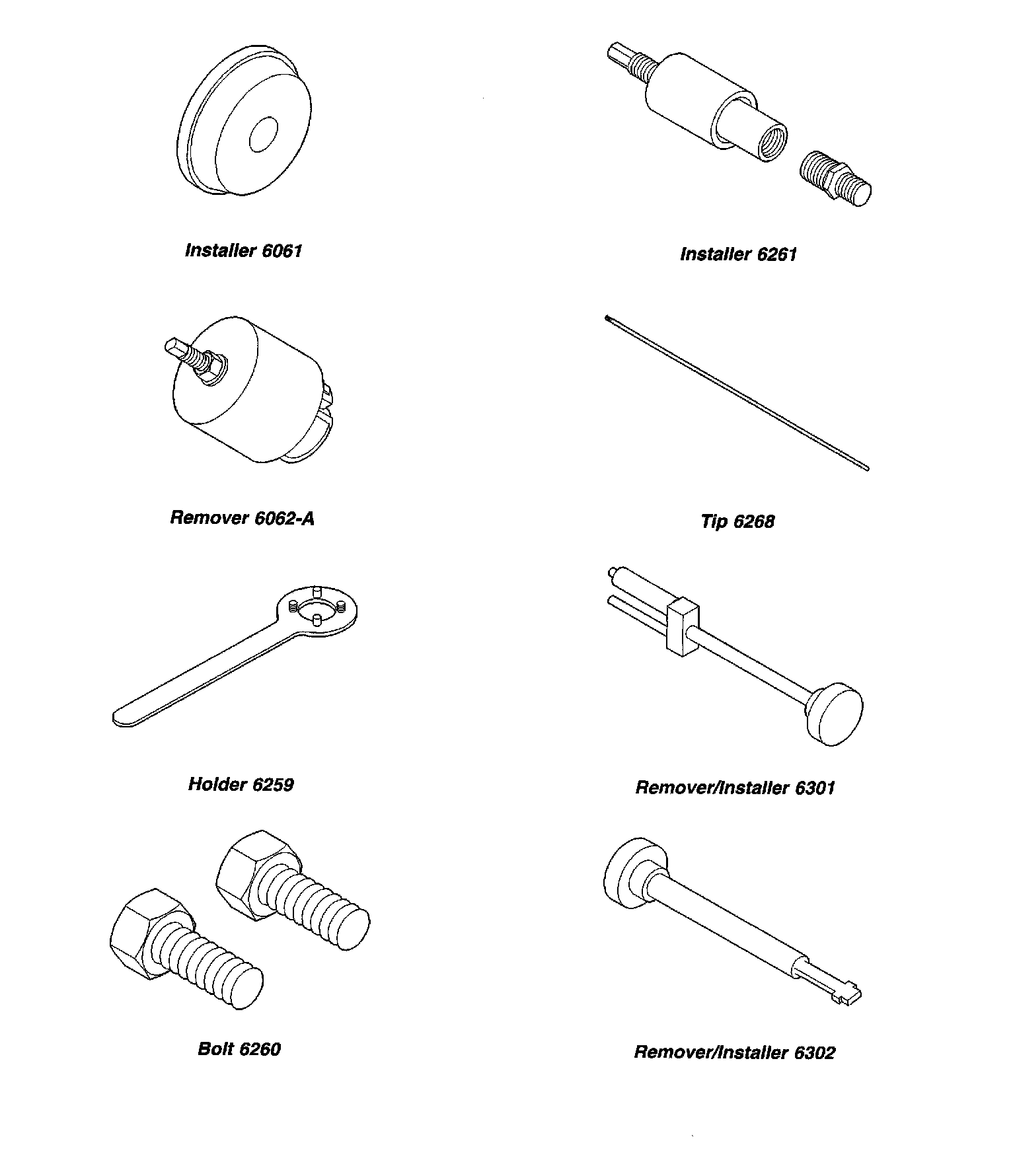

Special Tool Illustrations (Part 2 Of 7):

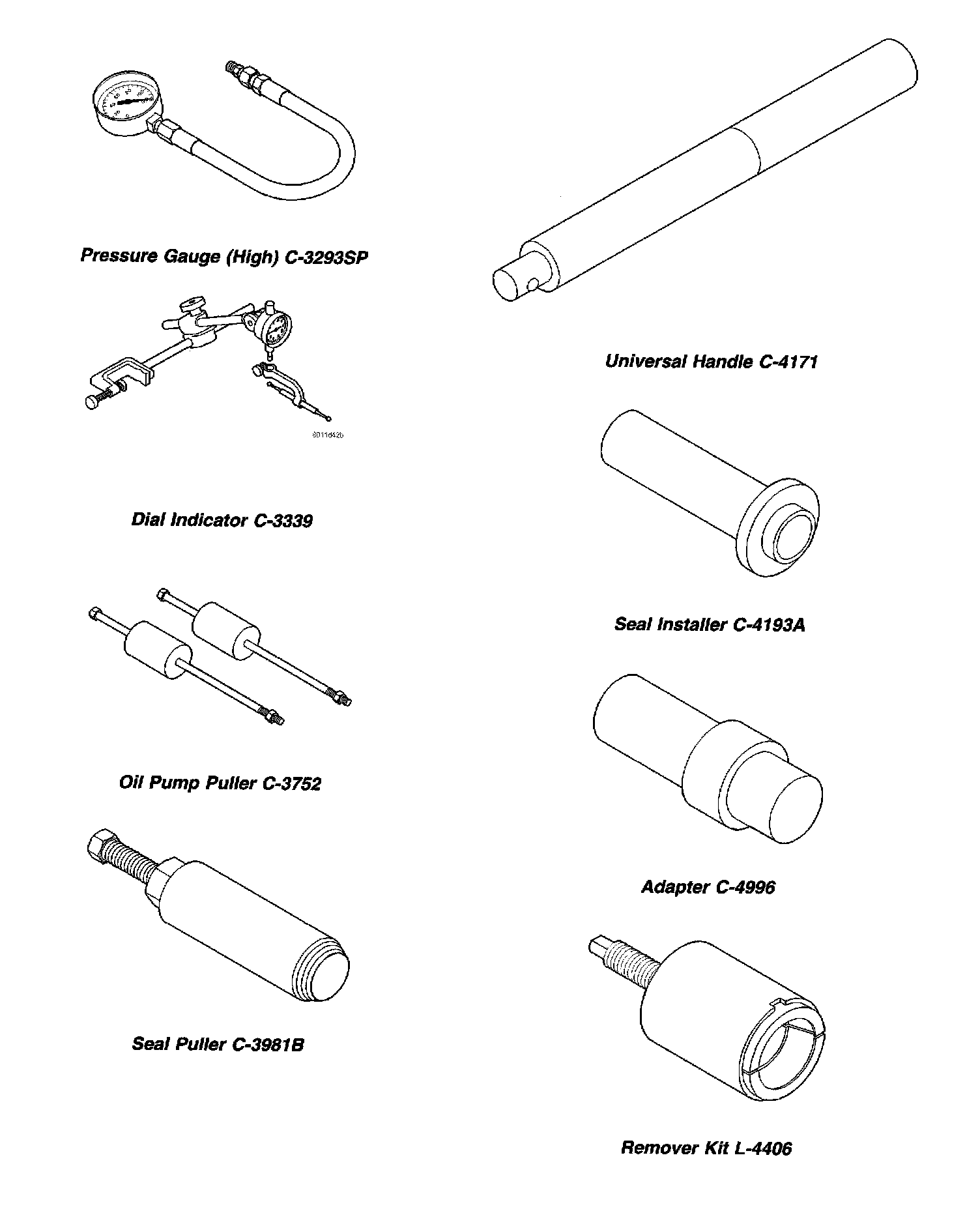

Special Tool Illustrations (Part 3 Of 7):

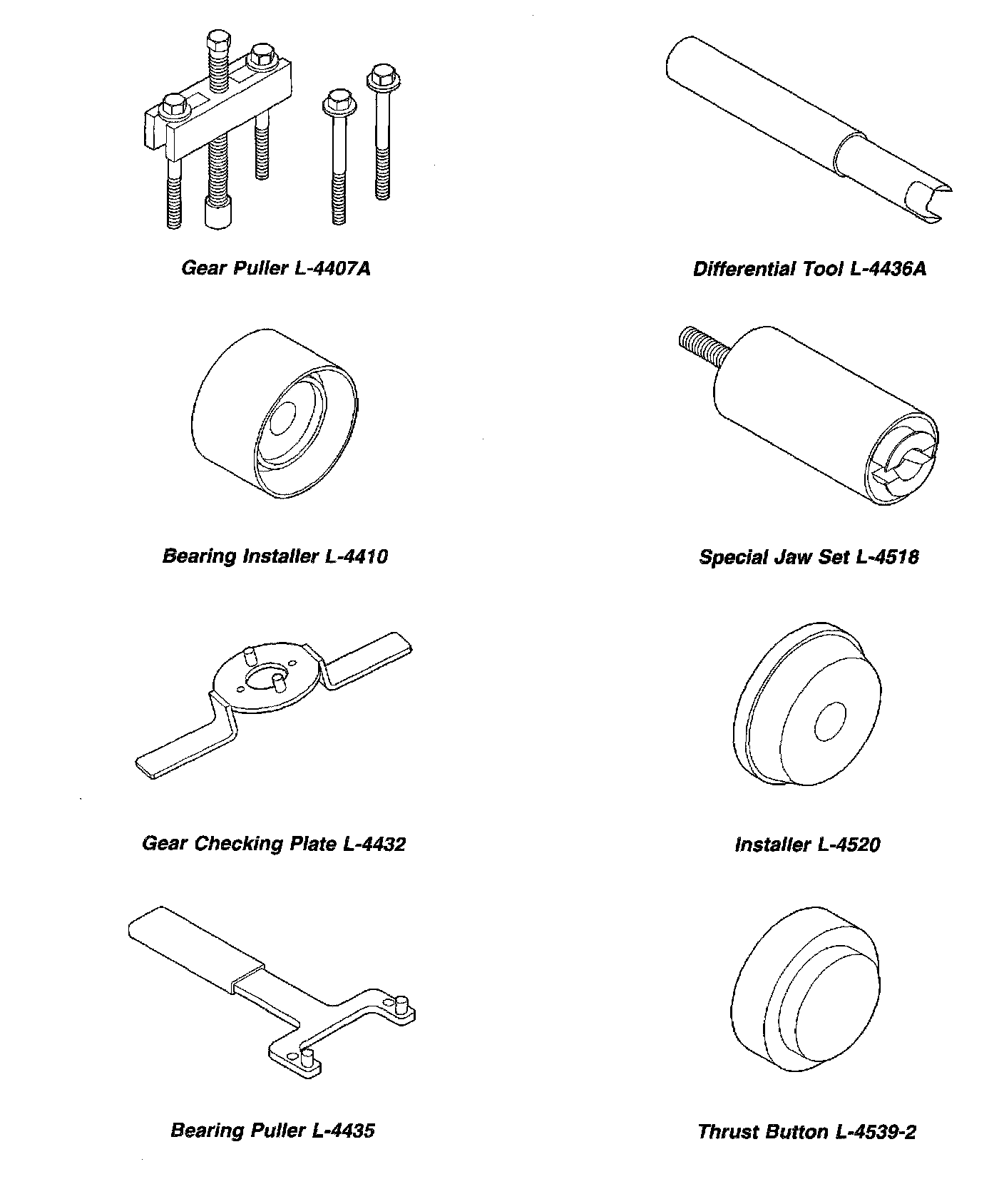

Special Tool Illustrations (Part 4 Of 7):

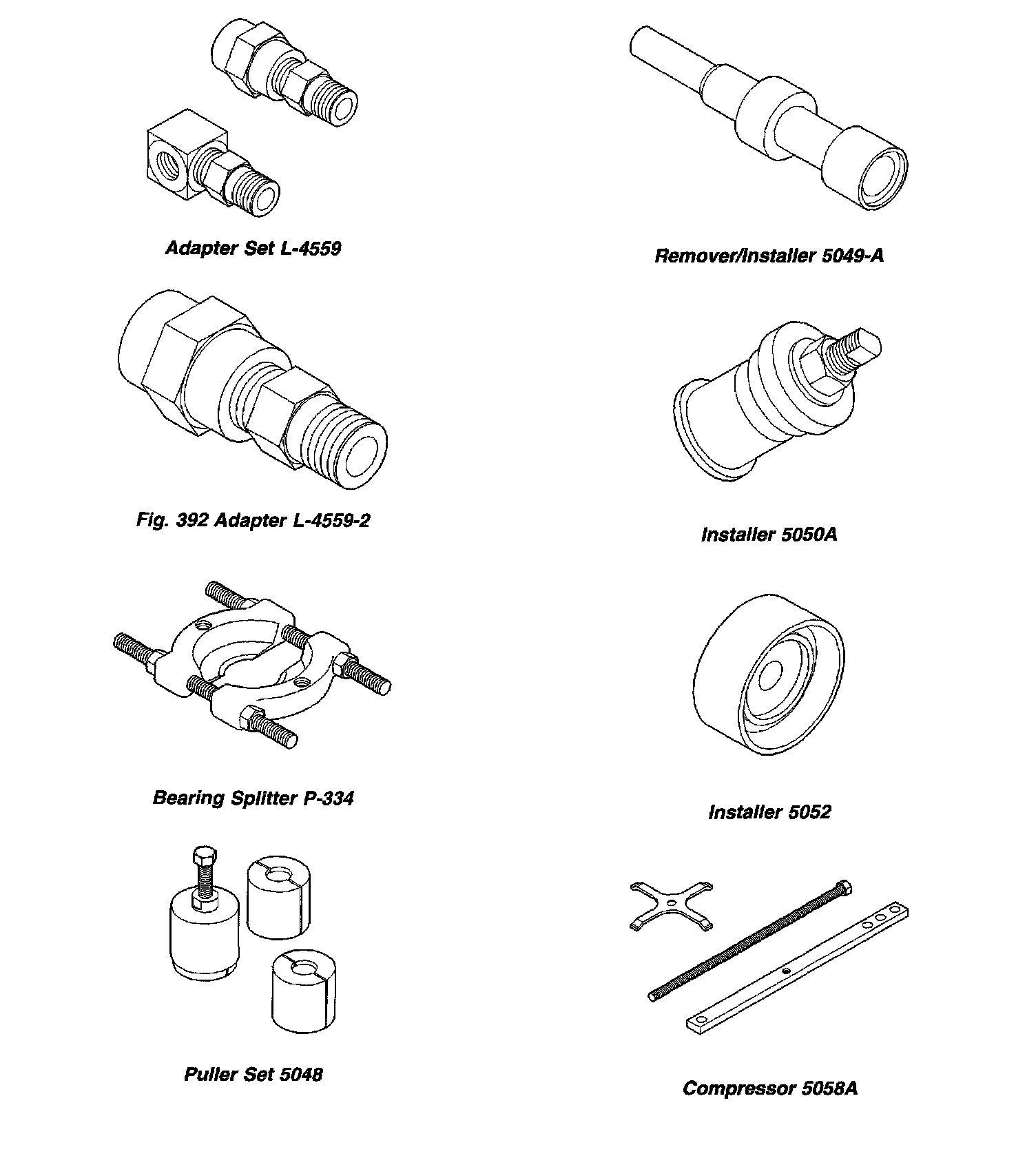

Special Tool Illustrations (Part 5 Of 7):

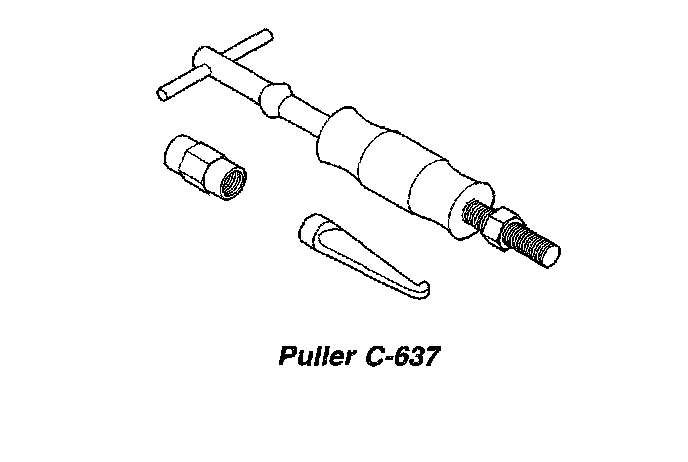

Special Tool Illustrations (Part 6 Of 7):

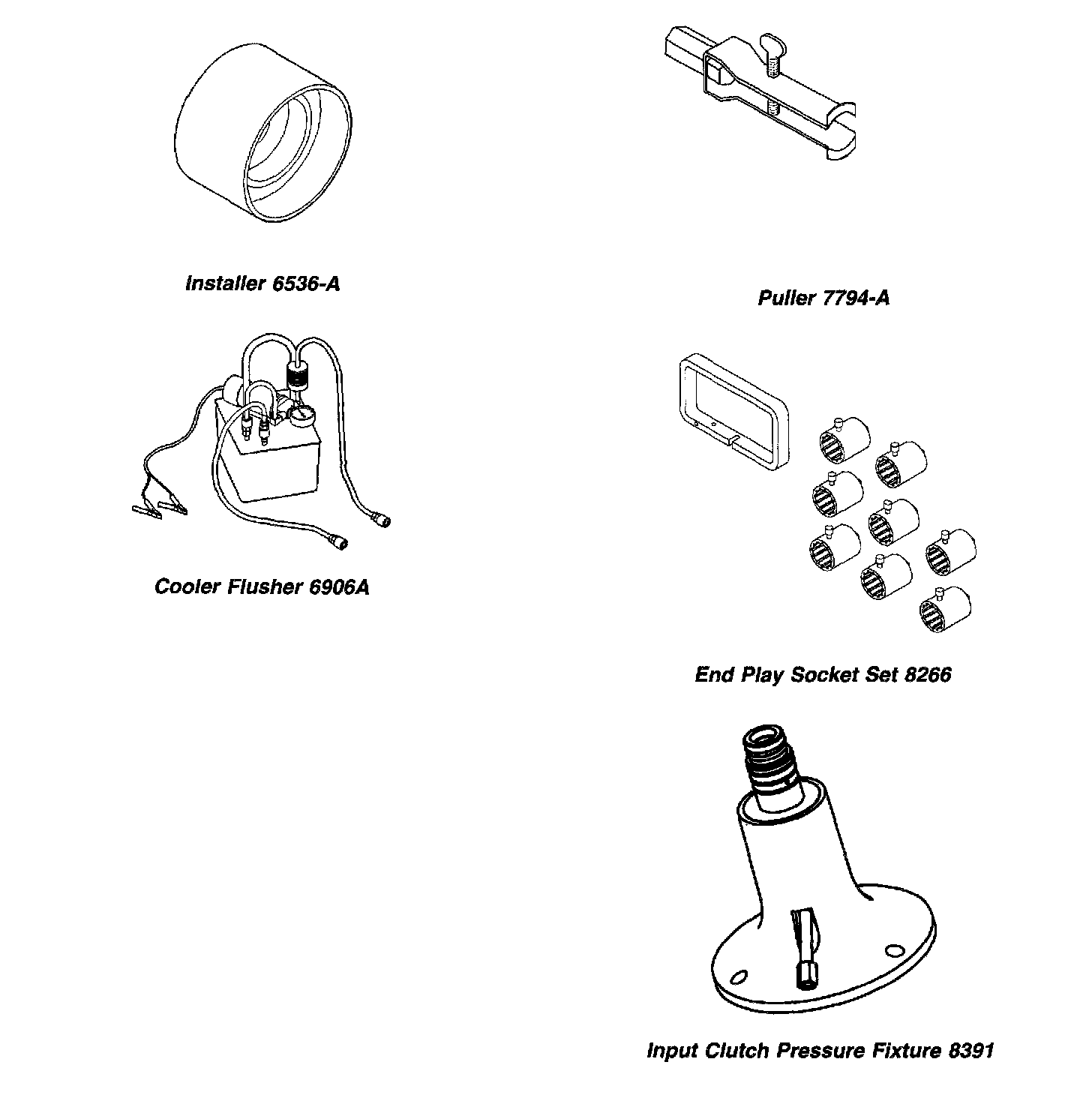

Special Tool Illustrations (Part 7 Of 7):
