Automatic Transmission/Transaxle: Diagrams

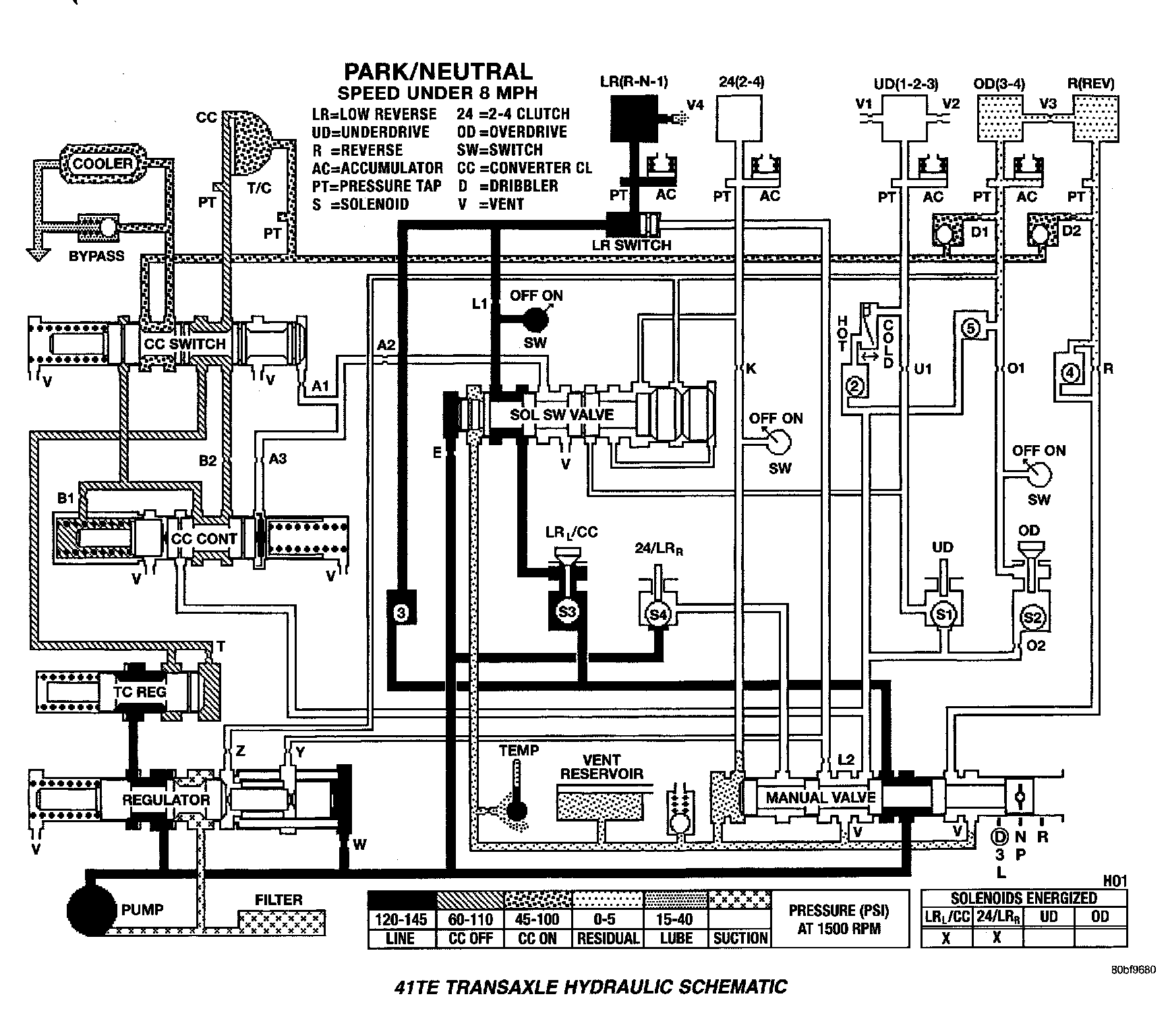

Park/Neutral, Speed Under 8 MPH:

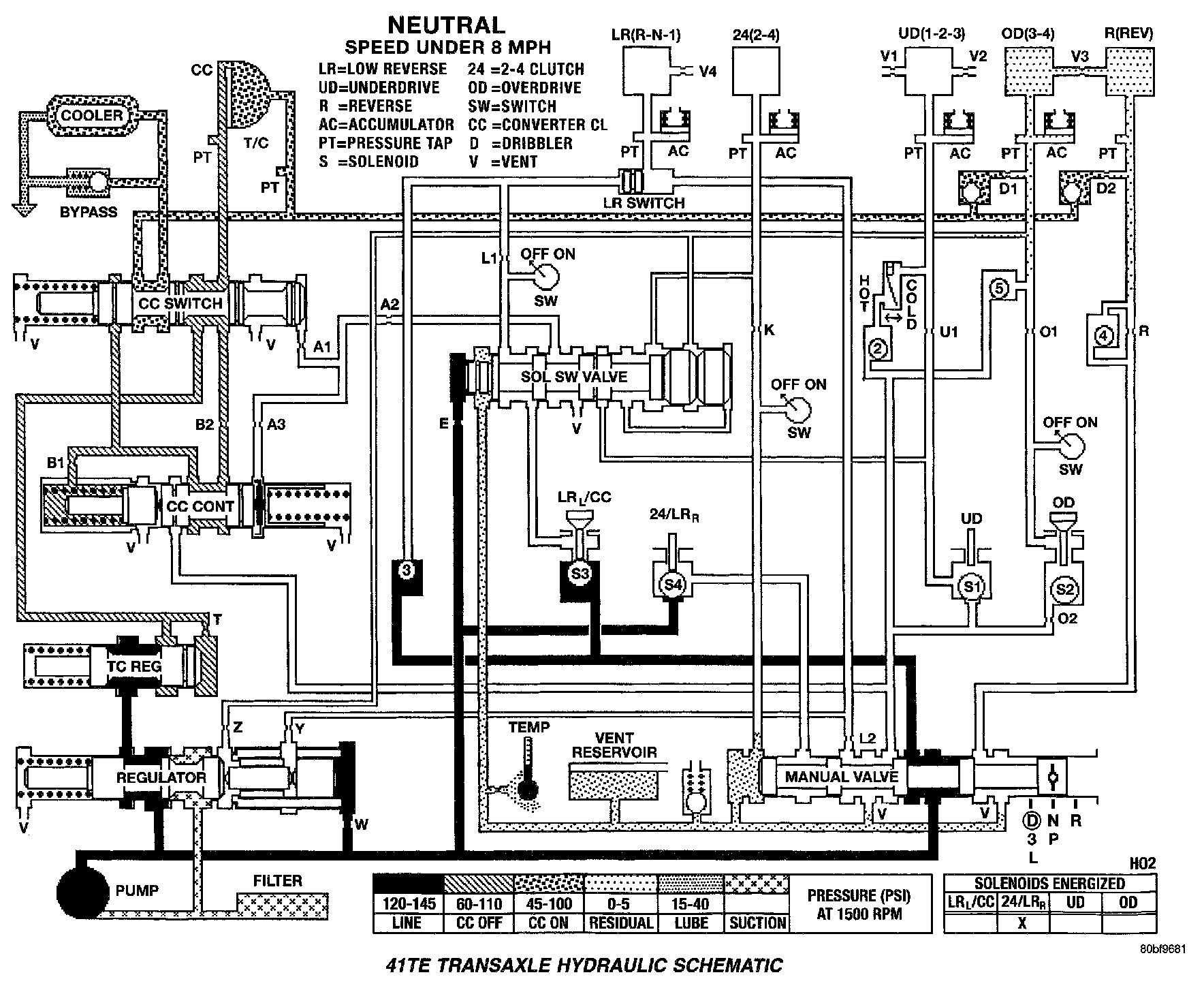

Neutral, Speed Under 8 MPH:

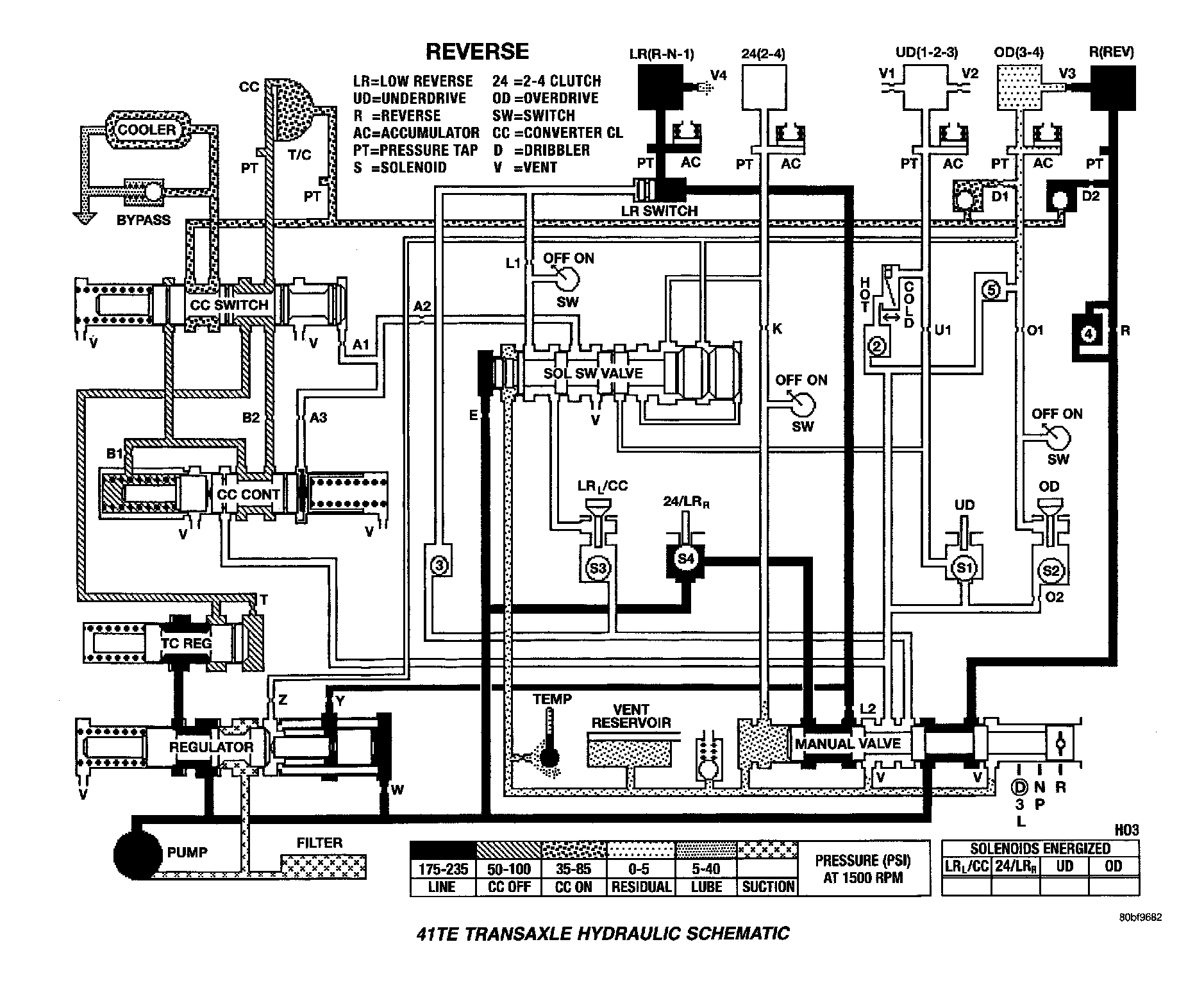

Reverse:

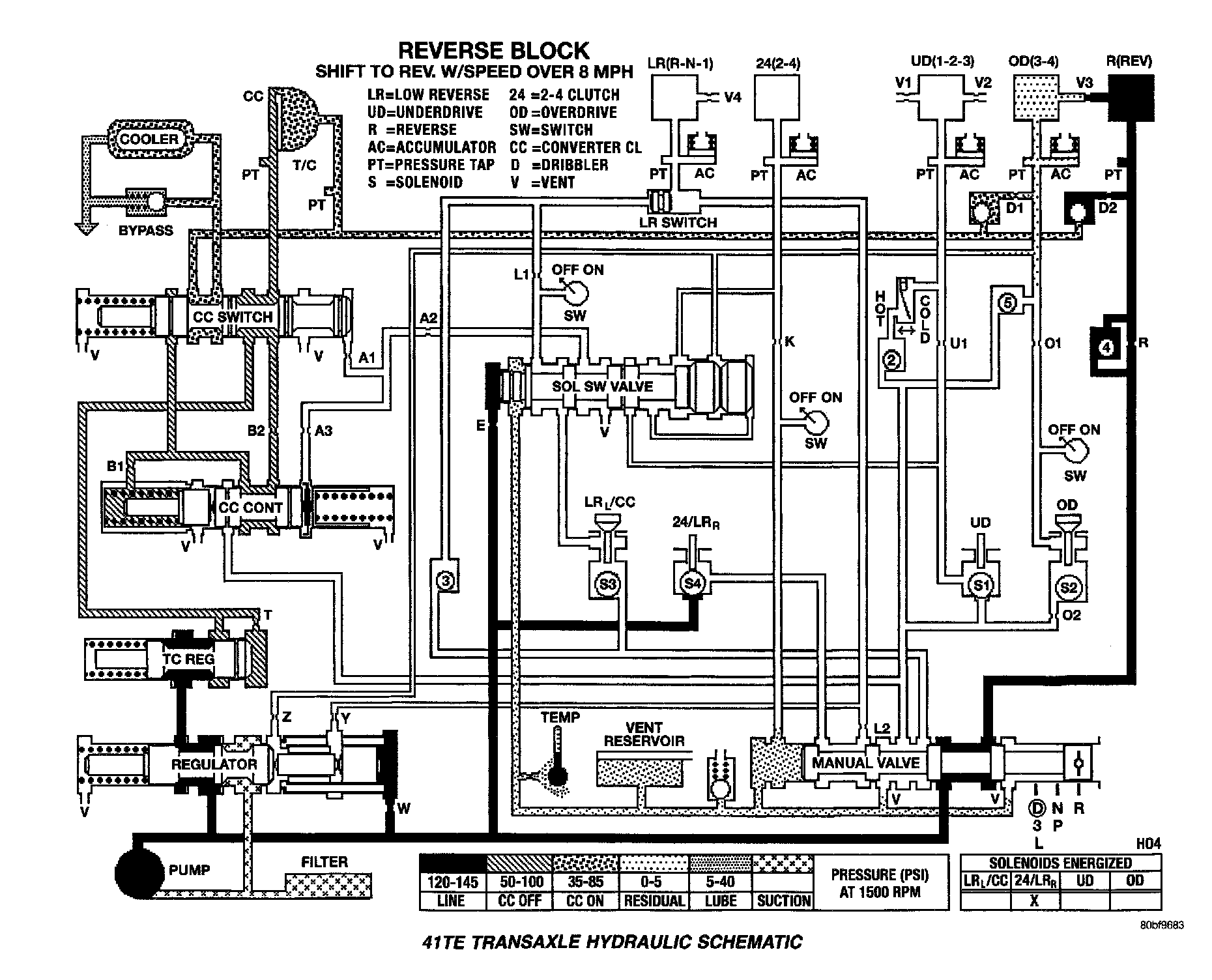

Reverse Block, Shift To Reverse With Speed Over 8 MPH:

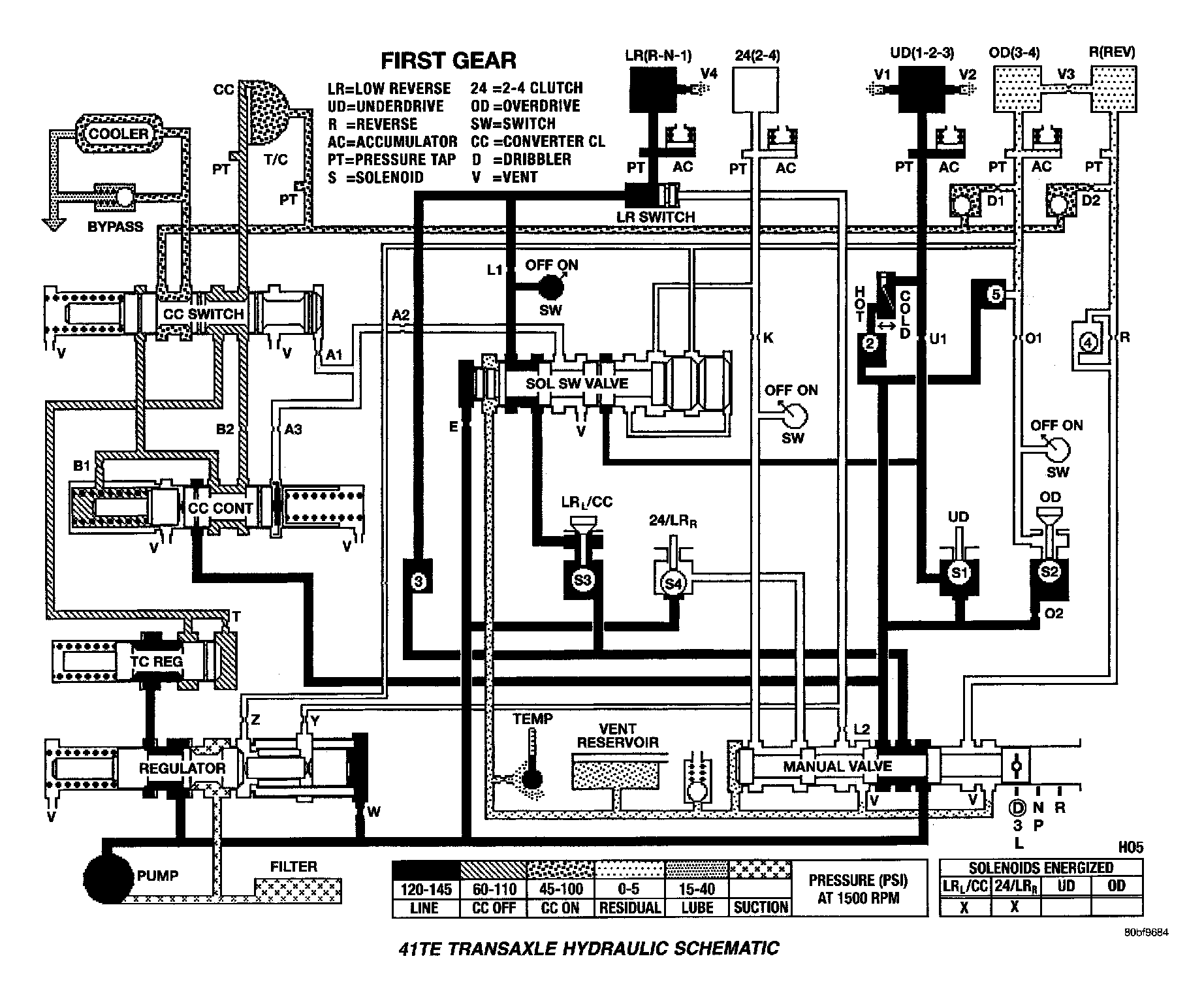

First Gear:

Second Gear:

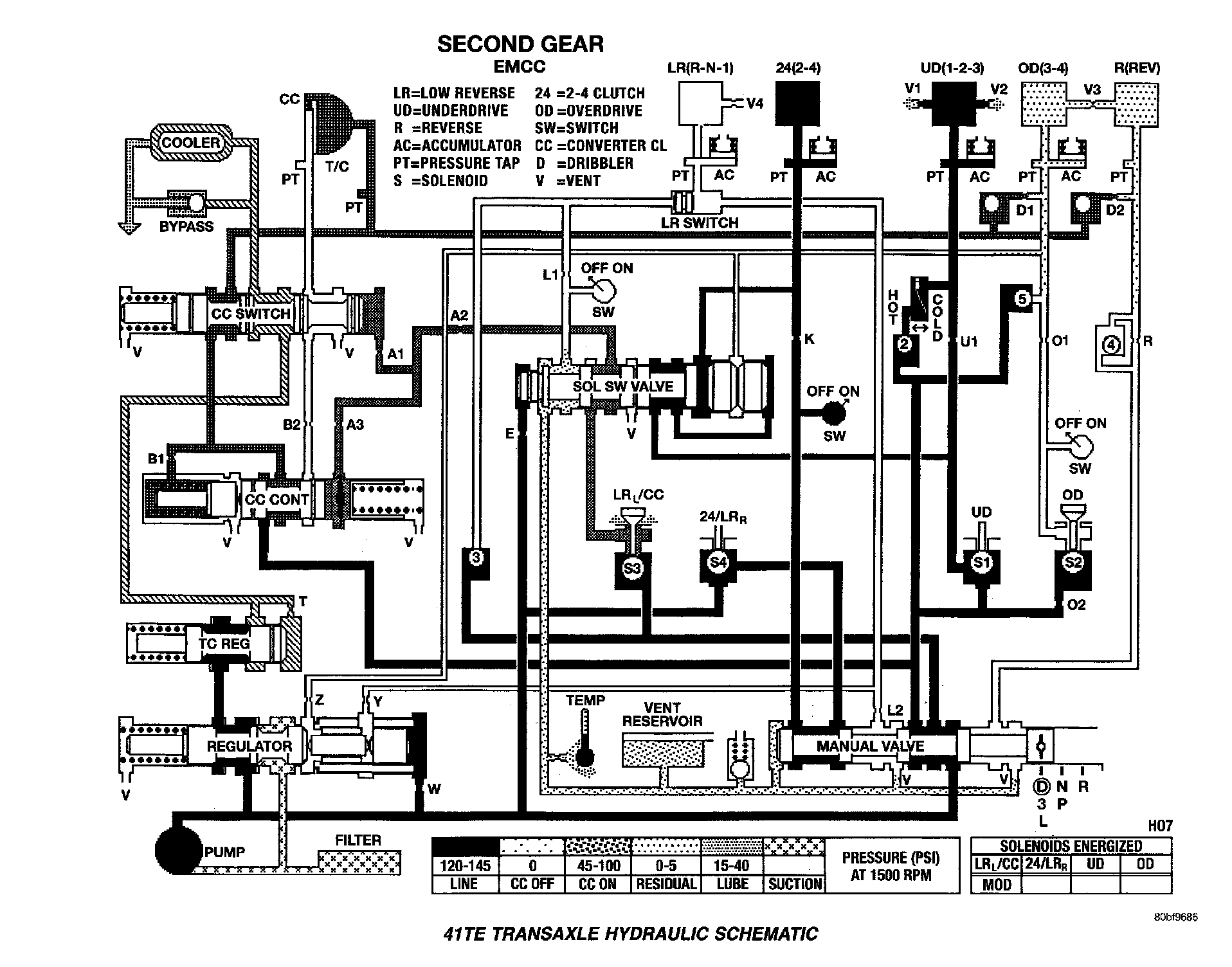

Second Gear, EMCC:

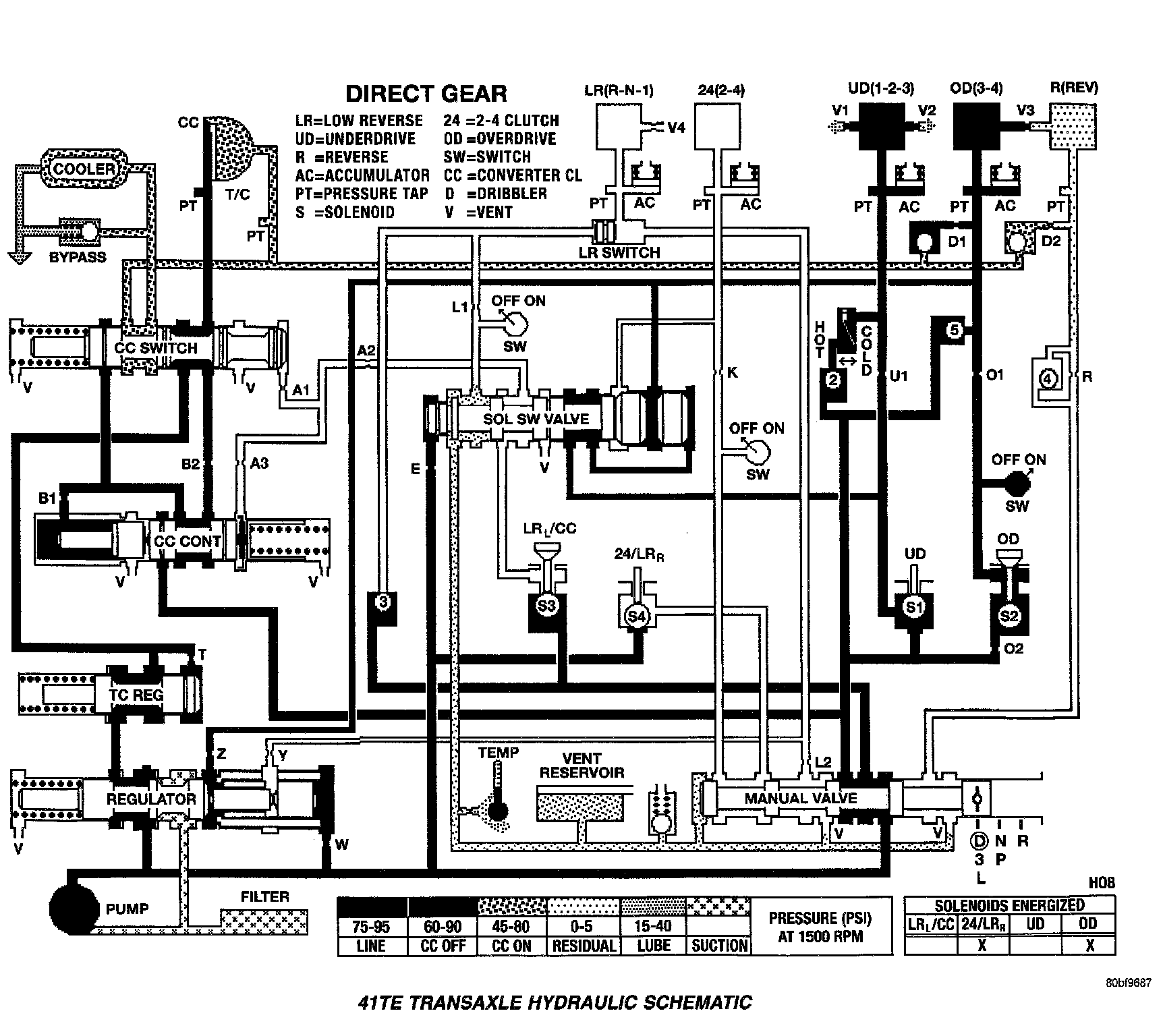

Direct Gear:

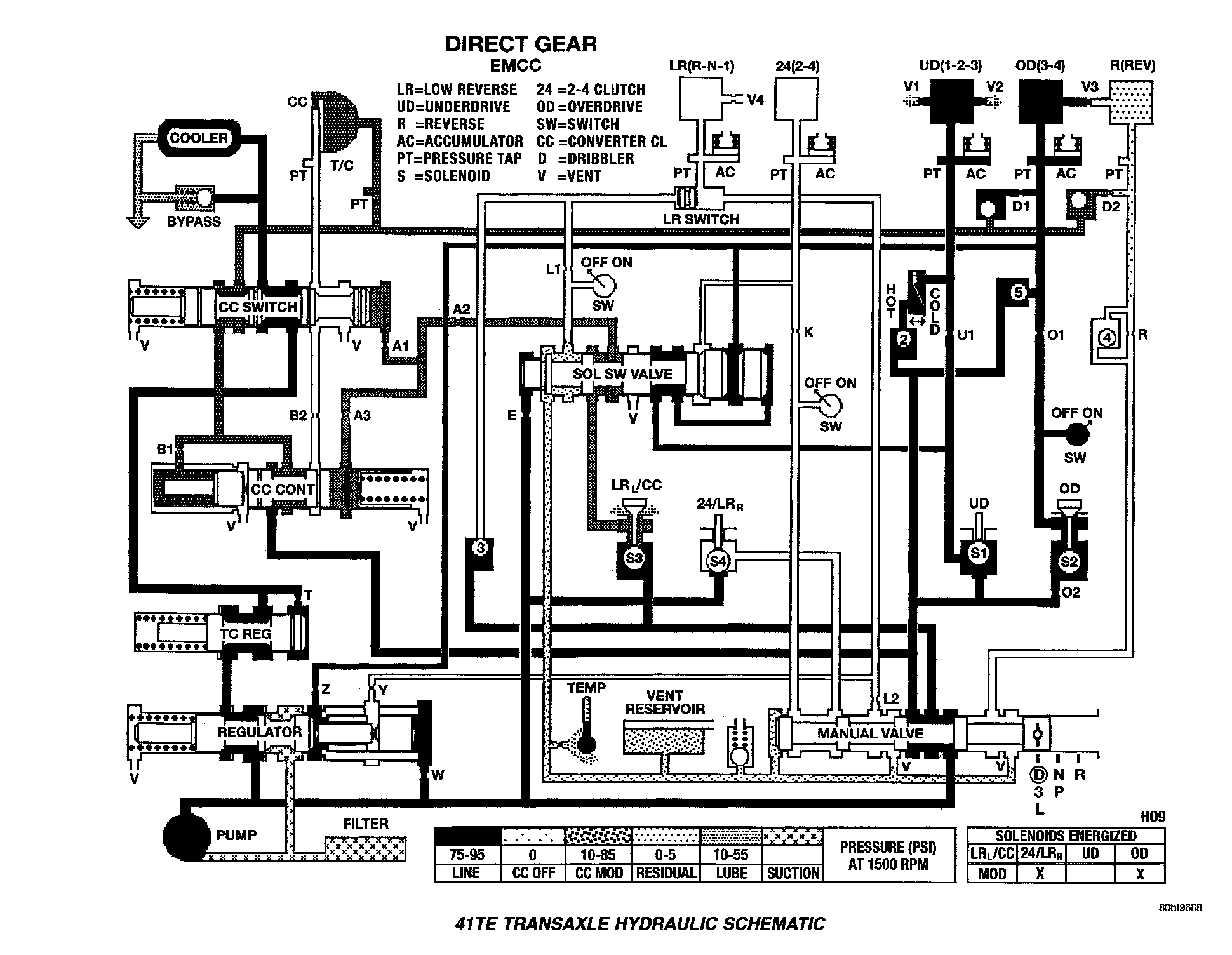

Direct Gear EMCC:

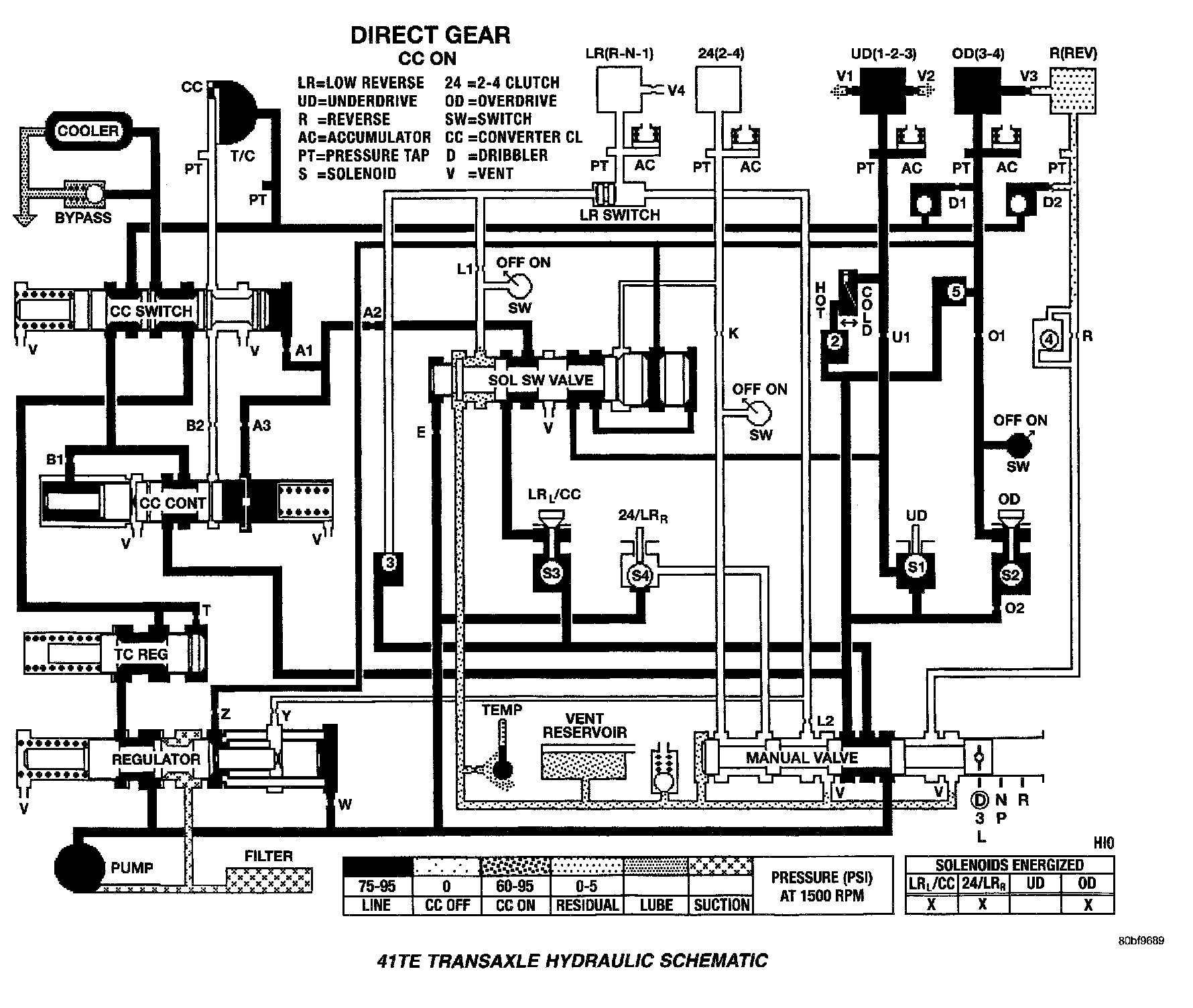

Direct Gear, CC On:

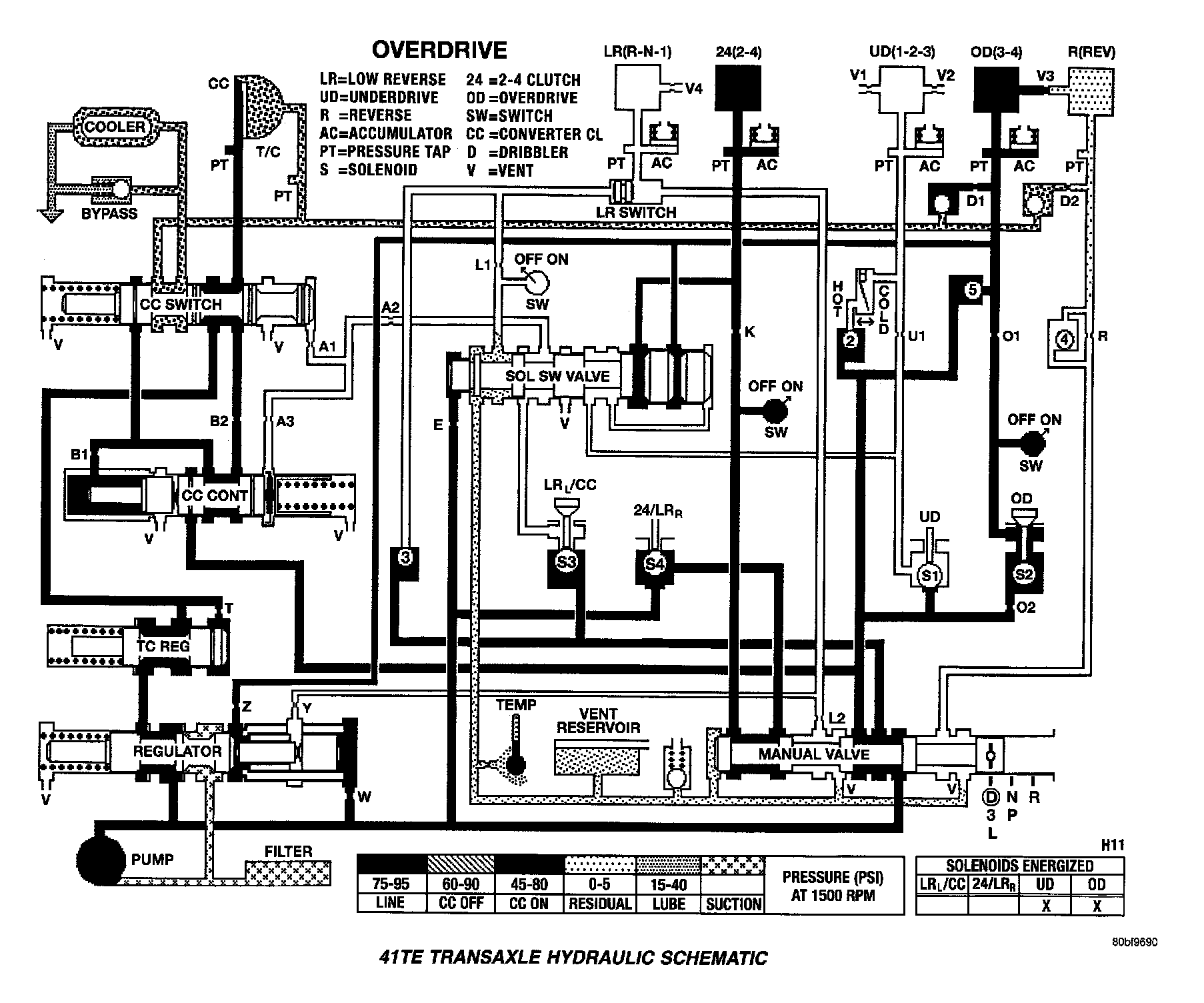

Overdrive:

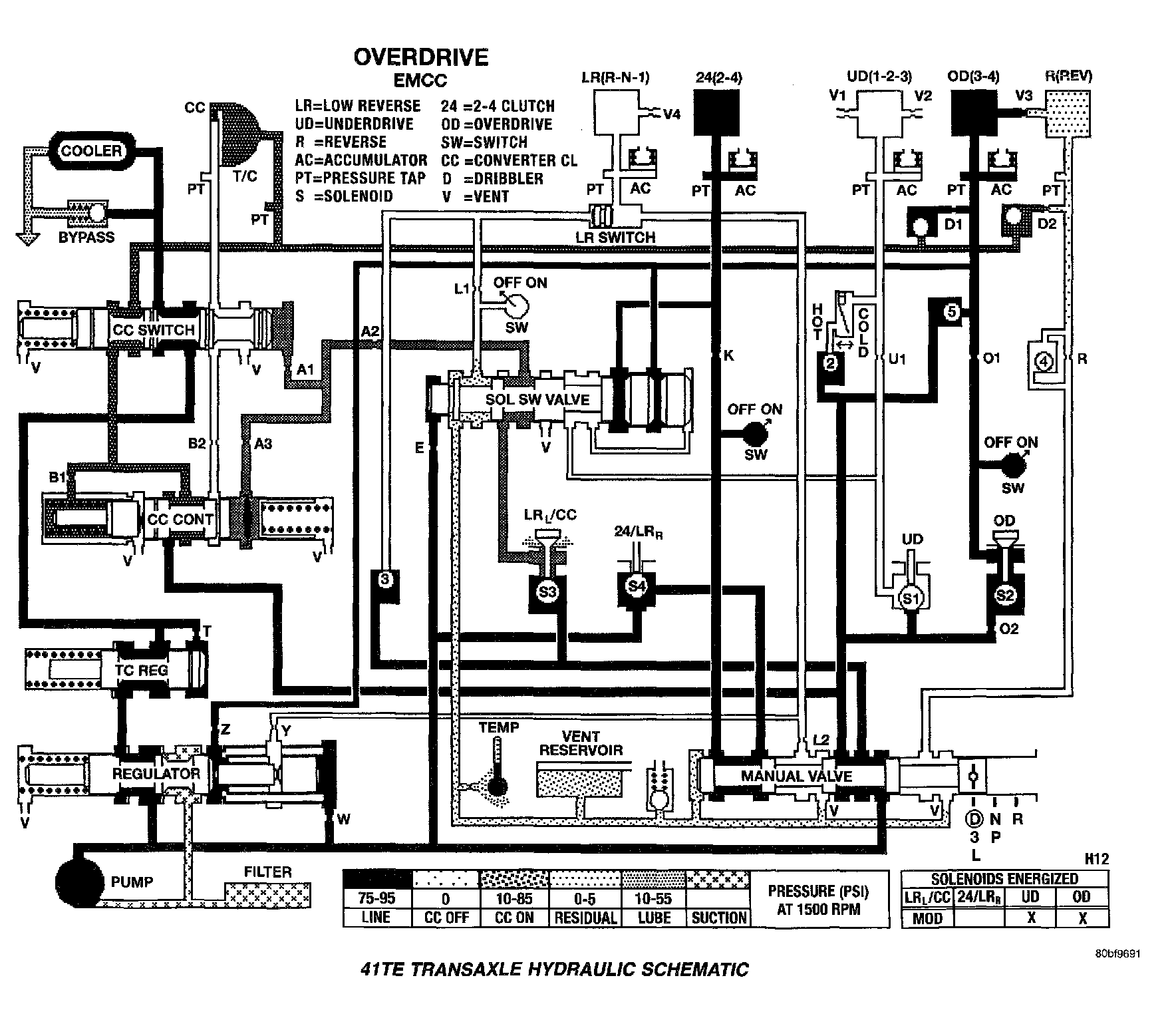

Overdrive, EMCC:

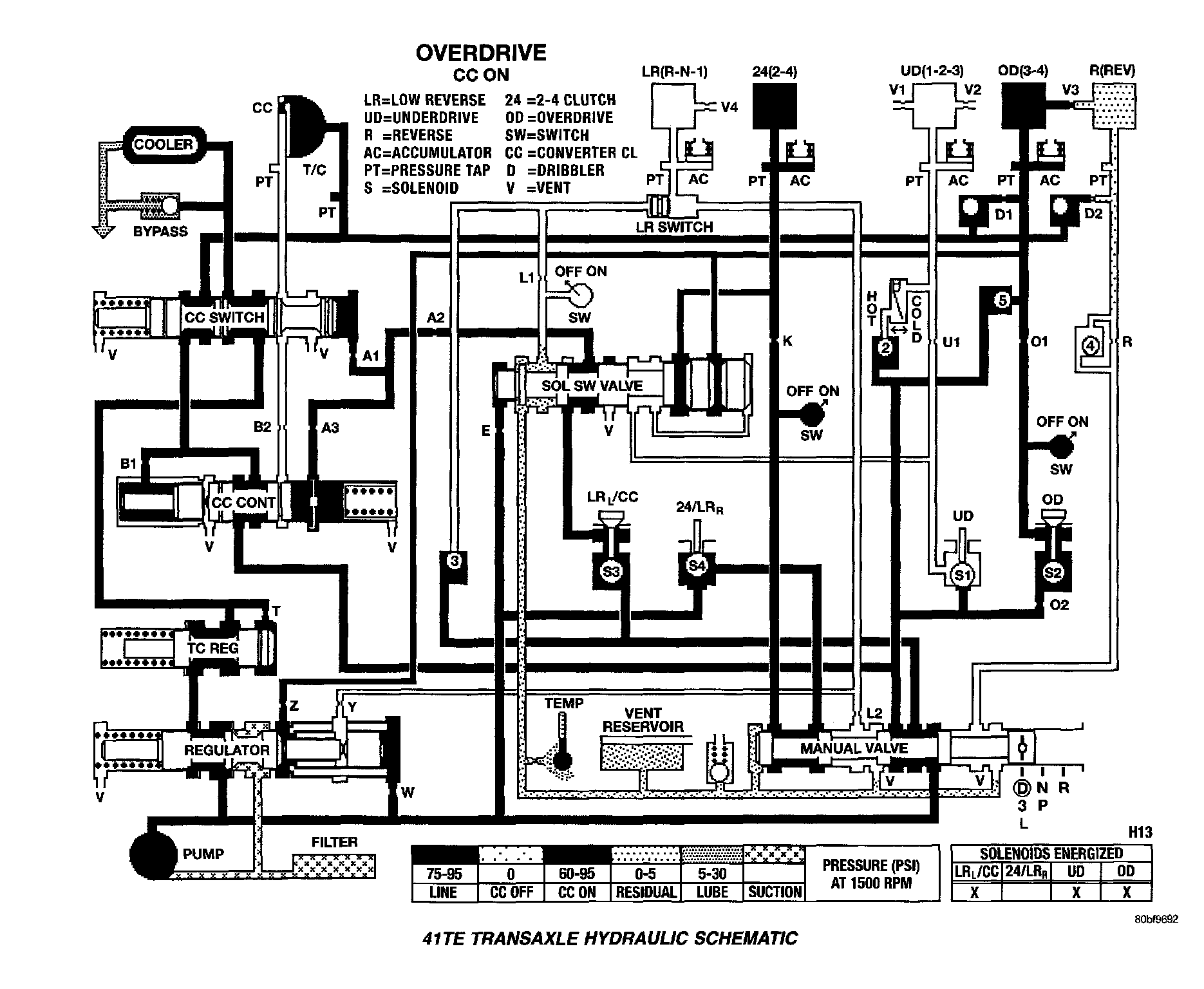

Overdrive, CC On:
