With Manual Transmission

Engine With Manual Transaxle

CAUTION: The generator output terminal must be connected to the battery positive terminal of the starter solenoid. For the charging and cranking systems to operate properly.

REMOVAL

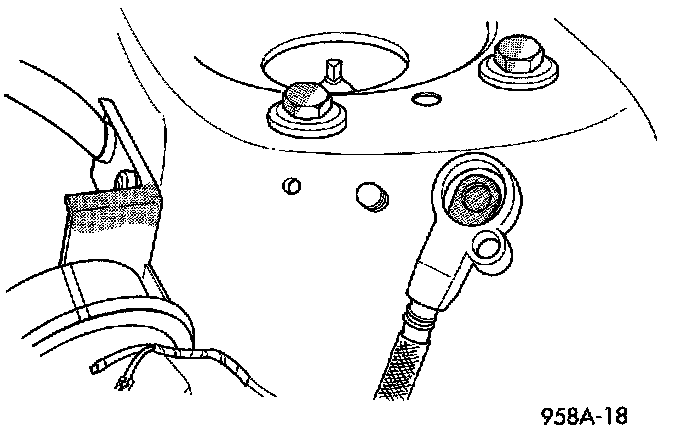

Remove Remote Battery Cable At Shock Tower:

1. Disconnect the remote battery negative cable from the terminal on shock tower.
2. Remove air cleaner resonator.

Wire Terminal Connection:

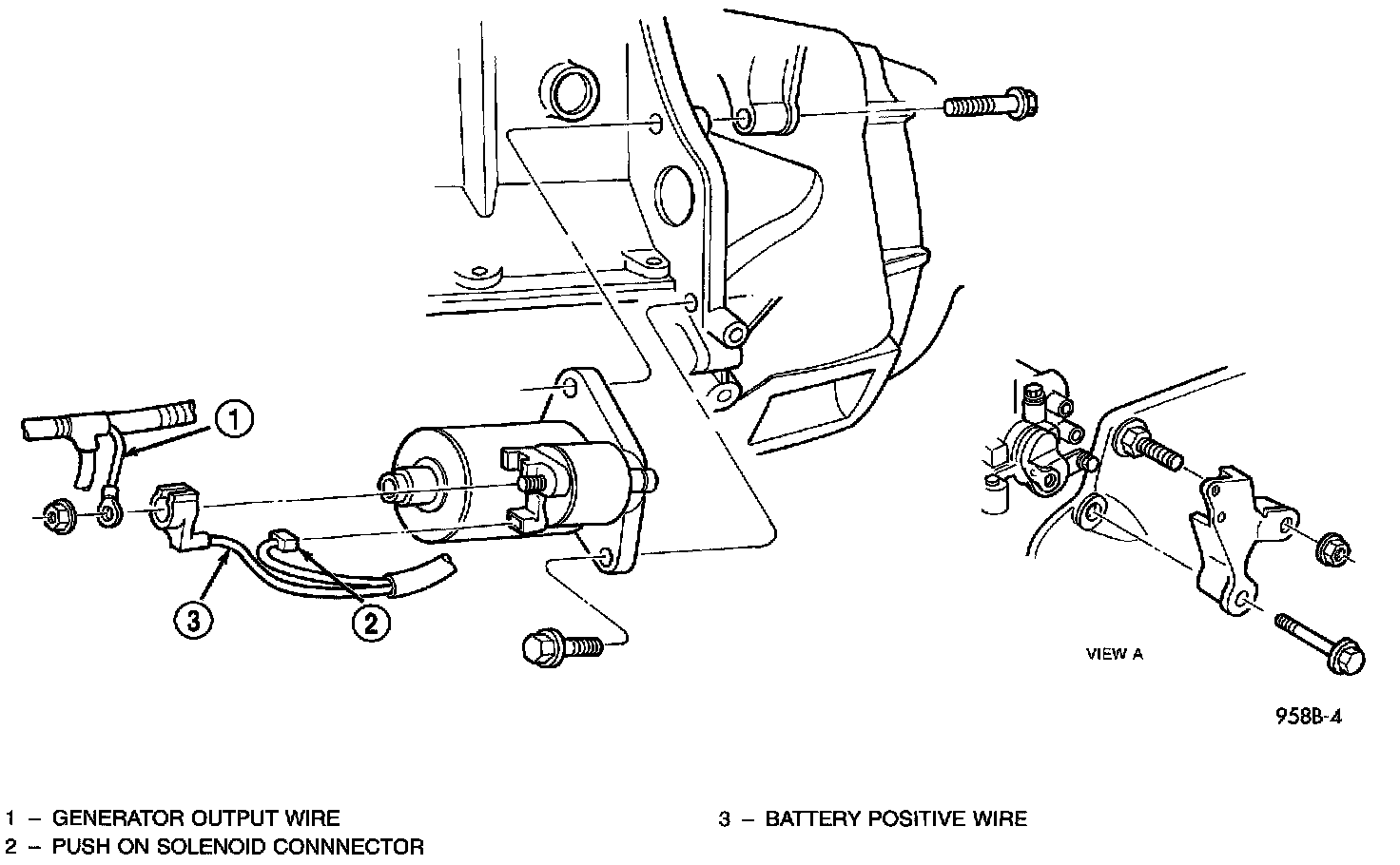

3. Remove the battery positive cable nut from starter. Remove battery positive cable and generator output wire from starter.
4. Disconnect push on solenoid connector. Unlock the red locking tab and compress lock to release the connector.
5. Remove two bolts attaching starter to transmission housing and remove starter from vehicle.

INSTALLATION
For installation, reverse the above procedures. Clean corrosion/dirt from wire terminals before installing wiring to the solenoid.
