Power Distribution Module
>>
Locations
Power Distribution Module: Locations
Power Distribution Center:

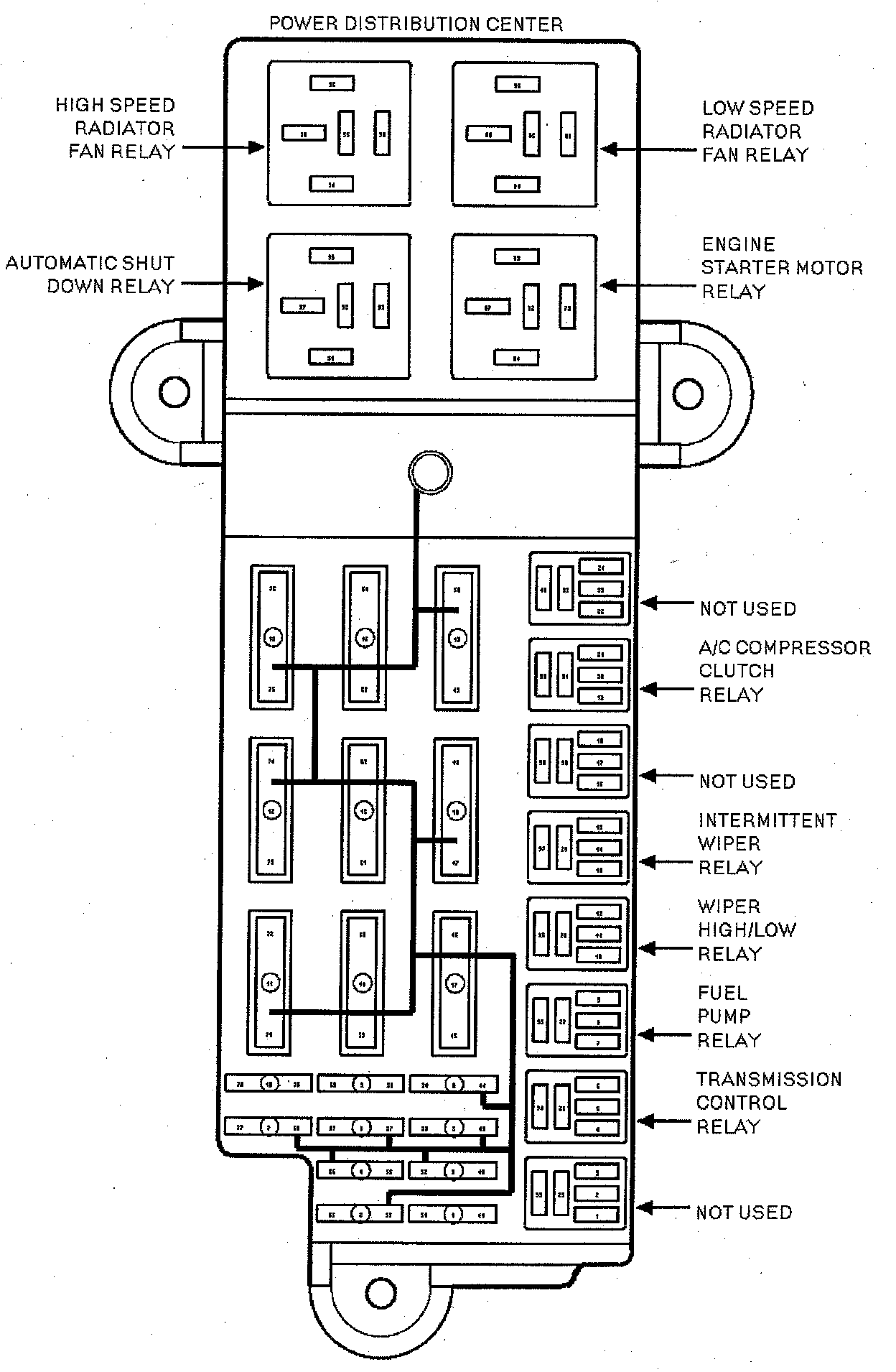

Power Distribution Center Details (Part 1 Of 2):

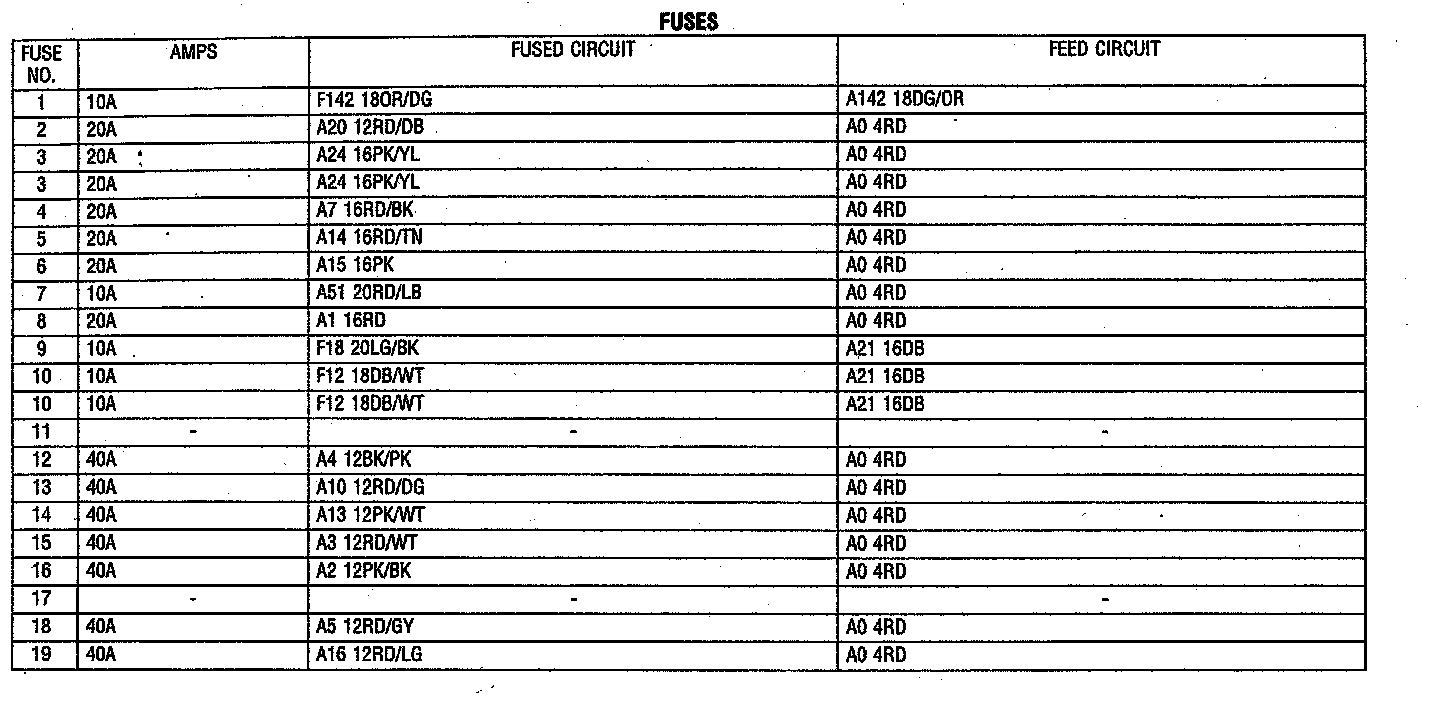

Power Distribution Center Details (Part 2 Of 2):
Power Distribution Center
