Seat Belt Rear Outboard

SEAT BELT - REAR OUTBOARD

REMOVAL

1. Remove rear seat cushion.

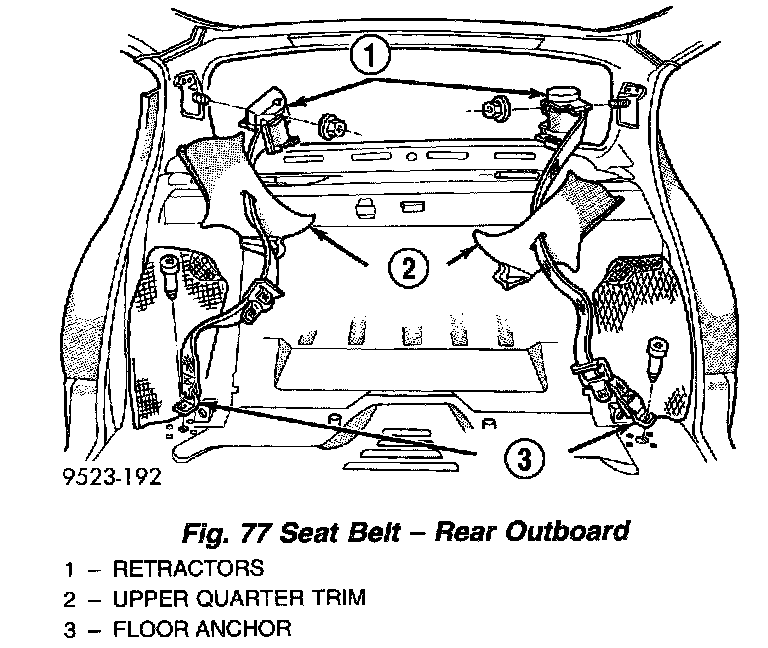

Fig. 77:

2. Remove bolt attaching seat belt anchor to floor pan (Fig. 77).
3. Remove upper quarter trim panel.
4. Remove nut attaching rear seat belt retractor to inner quarter panel.
5. Remove retractor and belt from vehicle.

INSTALLATION

1. Place retractor and belt into position.
2. Install nut attaching rear seat belt retractor to inner quarter panel.
3. Install upper quarter trim panel.
4. Install bolt attaching seat belt anchor to floor pan.
5. Install rear seat cushion.
