Main Relay (Computer/Fuel System): Service and Repair

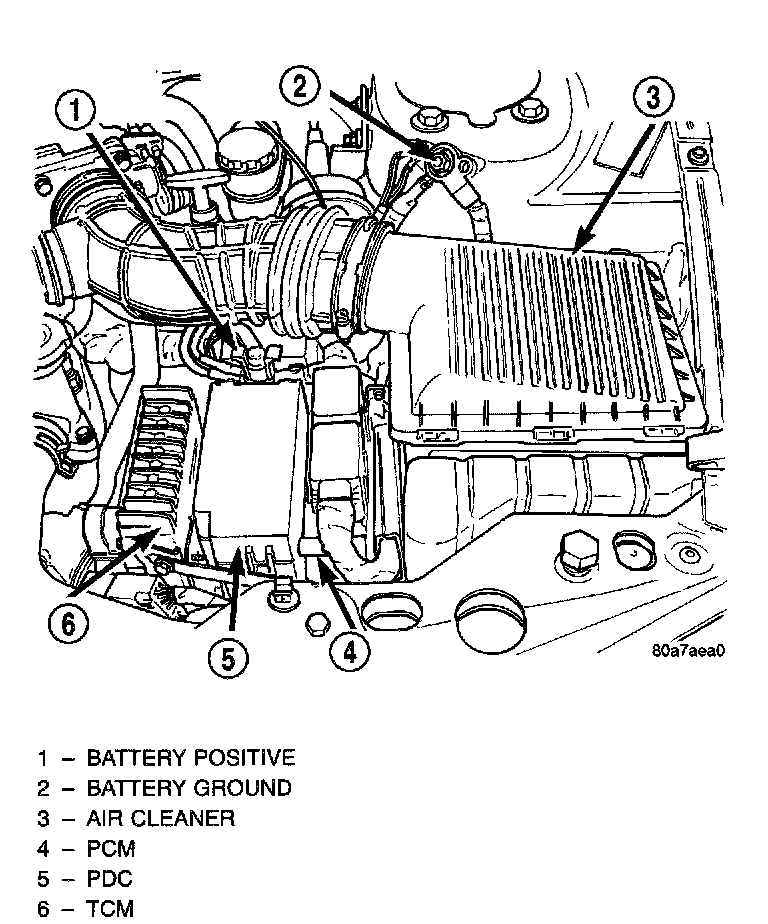

Power Distribution Center (PDC):

Power Distribution Center:

The ASD relay is located in the Power Distribution Center (PDC). For the location of the relay within the PDC, refer to the PDC cover for location.

REMOVAL
1. Remove PDC cover.
2. Remove relay from PDC.
3. Check condition of relay terminals and PDC connector terminals for damage or corrosion. Repair if necessary before installing relay.
4. Check for pin height (pin height should be the same for all terminals within the PDC connector). Repair if necessary before installing relay.

INSTALLATION
1. Install relay to PDC.
2. Install cover to PDC.
