EGR Tube: Service and Repair

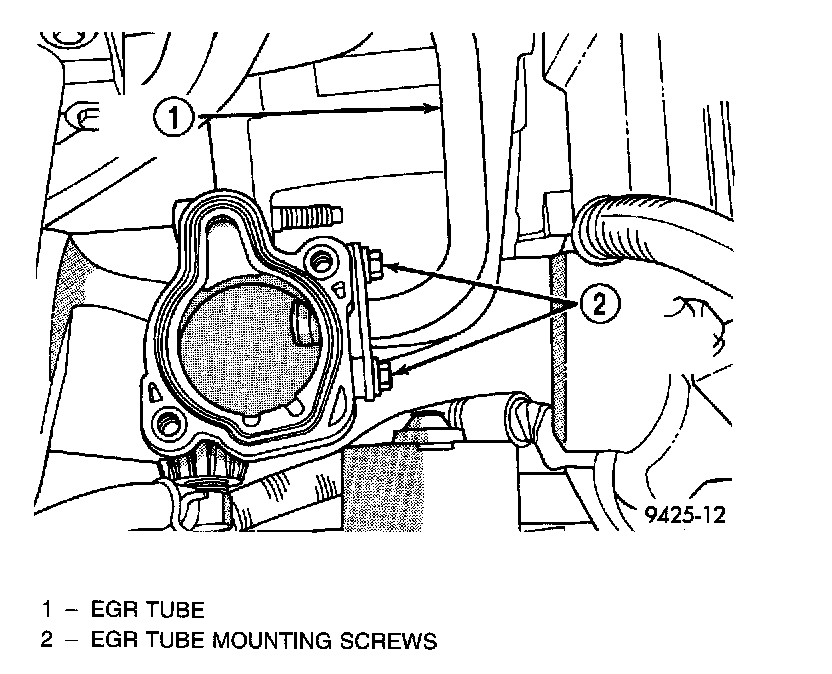

EGR Tube Stud Bolts:

The EGR tube attaches to the intake manifold plenum below the throttle body and EGR valve.

REMOVAL
1. Remove screws attaching EGR tube to intake manifold.
2. Remove EGR tube to EGR valve screws.
3. Remove EGR tube. Clean gasket surface on the EGR valve. Wipe clean the grommet on the intake manifold.

INSTALLATION
The rubber grommet that seals the EGR tube to intake manifold connection is reusable. Use a new gasket on the EGR tube to EGR valve connection.
1. Loosely install the EGR tube and fasteners.
2. Loose install EGR tube to the EGR valve and intake manifold.
3. Tighten the EGR tube to intake manifold plenum screws to 11 Nm (95 in. lbs) torque.
4. Tighten the EGR tube to EGR valve screws to 11 Nm (95 in. lbs.) torque.
