Canister Purge Solenoid: Diagrams

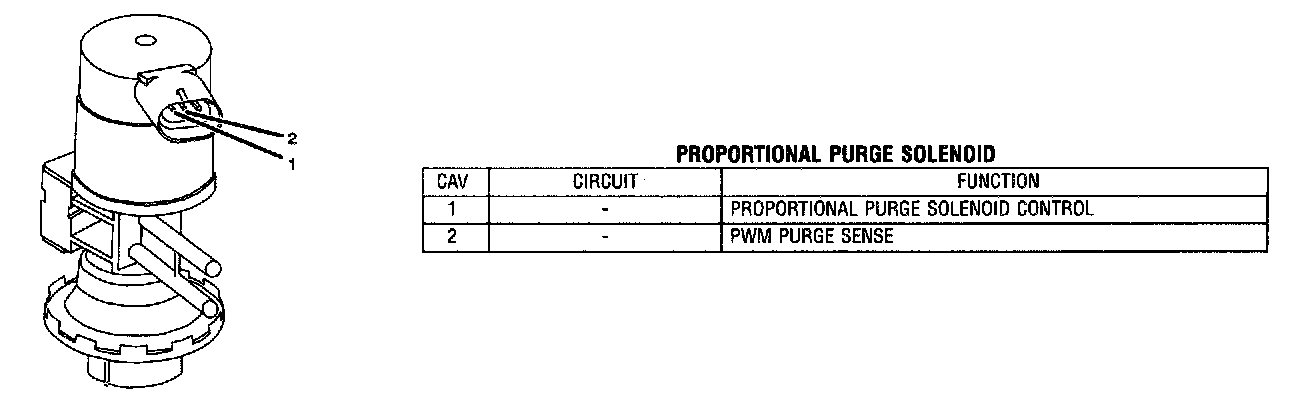

Proportional Purge Solenoid (Solenoid Side):

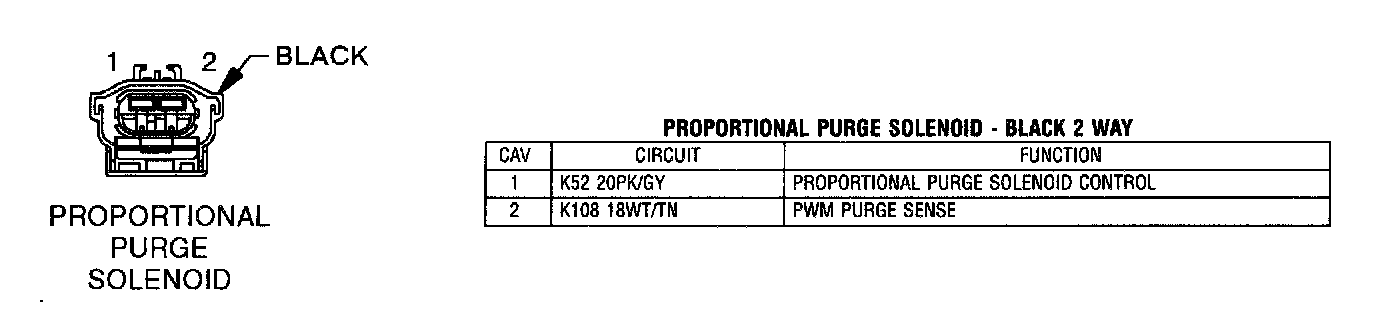

Proportional Purge Solenoid (Harness Side):
