Home >> Dodge >> 2000 >> Stratus L4-2.0L VIN C >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Component Tests and General Diagnostics >> Checking the MAP Sensor Operation

Checking the MAP Sensor Operation

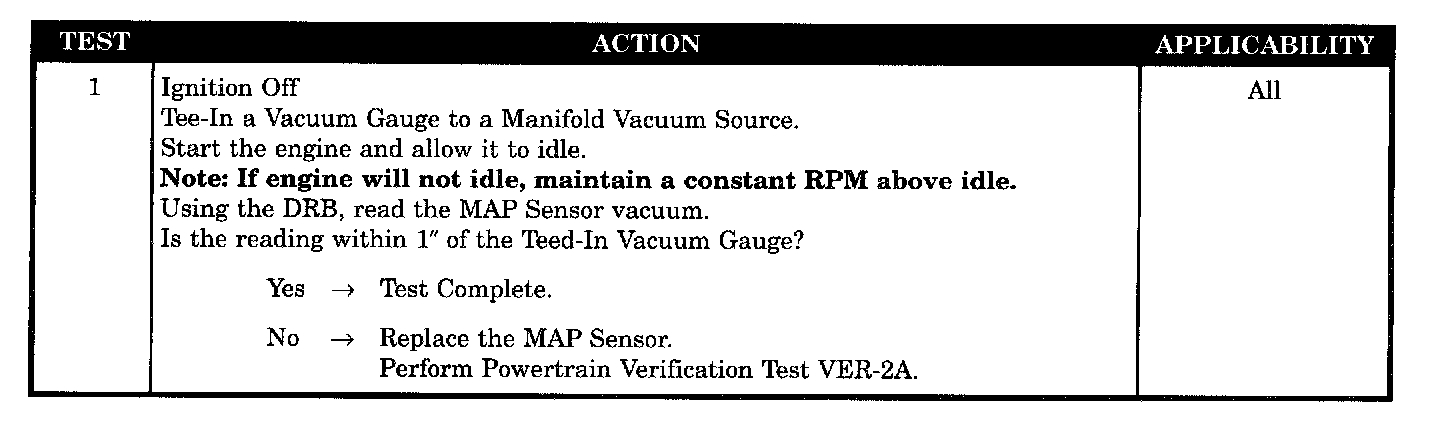

Test 1:





SYMPTOM
CHECKING MAP SENSOR CALIBRATION

POSSIBLE CAUSES
- MAP sensor defective
