Checking Minimum Idle Airflow

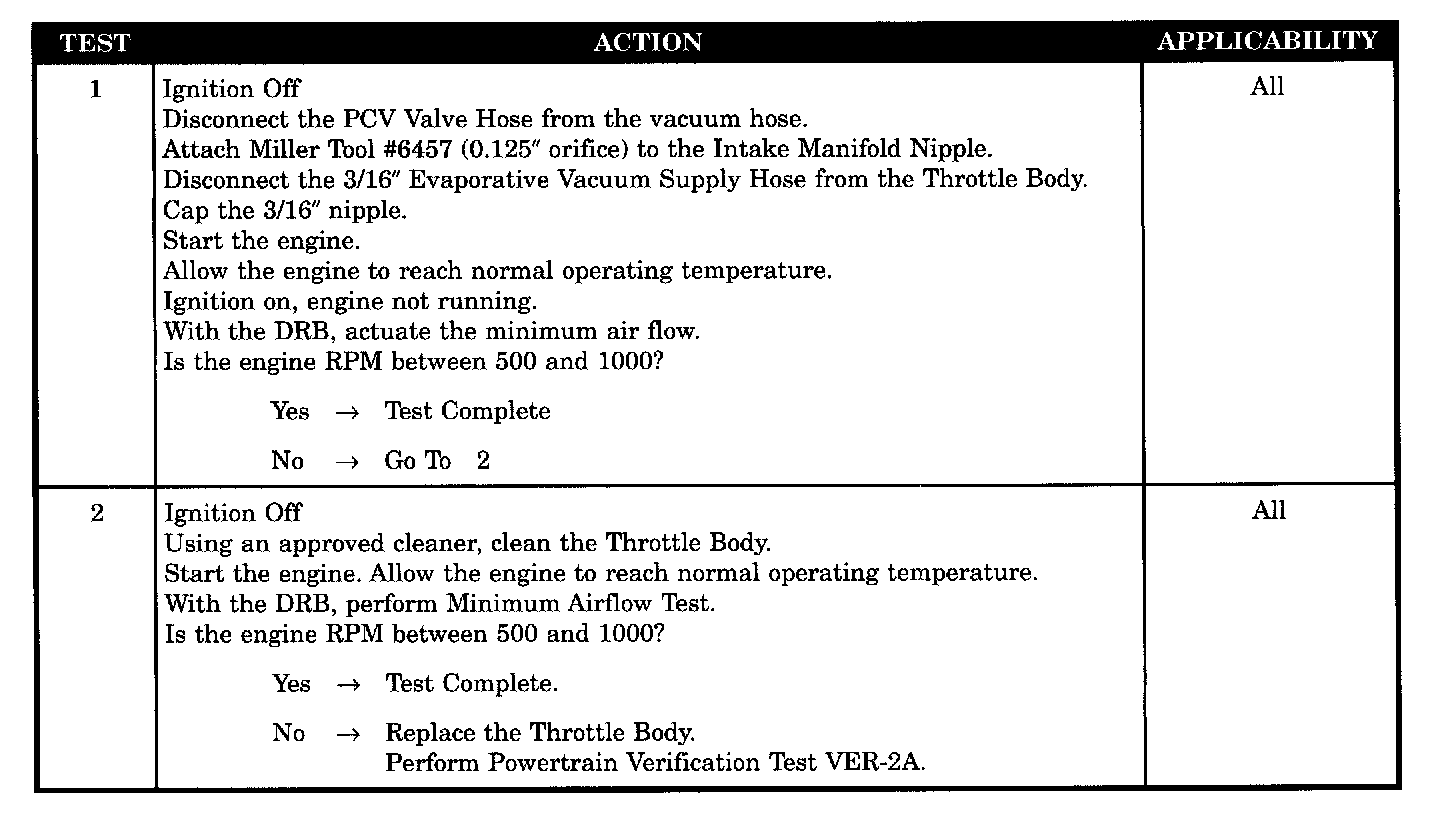

Tests 1 - 2:





SYMPTOM
CHECKING THE MINIMUM IDLE AIR FLOW

POSSIBLE CAUSES
- Throttle body defective
- Stop actuation
