Vehicle Speed Sensor Drive Gear

REMOVAL
1. Raise vehicle on hoist.

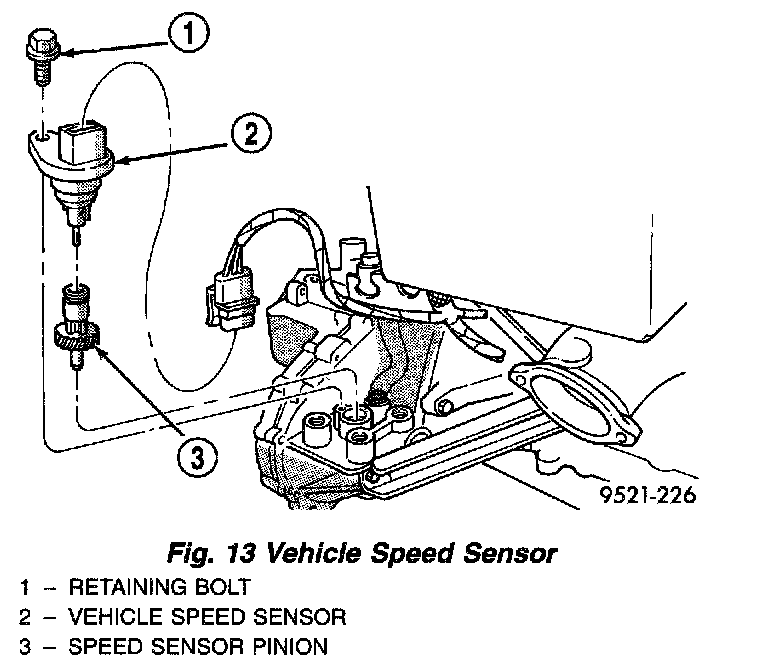

Fig. 13:

2. Remove wiring connector from speed sensor.

CAUTION: Clean area around speed sensor before removing. This will prevent the possibility of dirt from entering the transaxle during speed sensor removal.

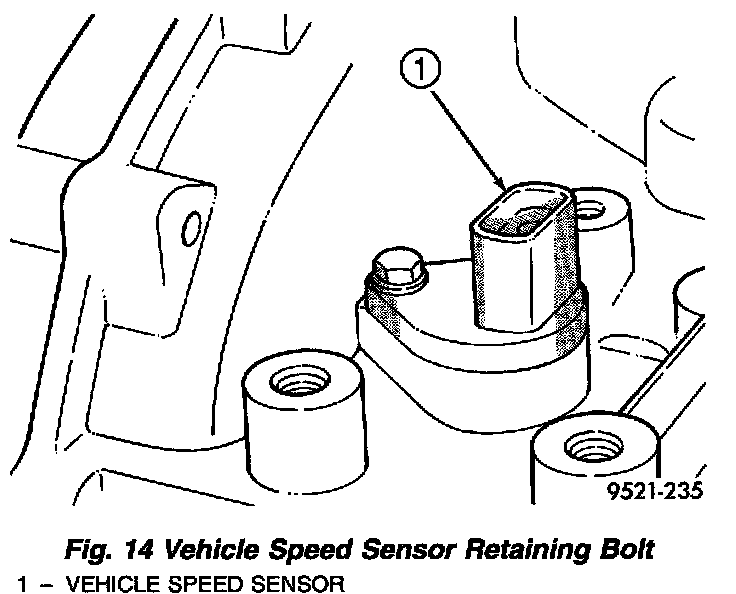

Fig. 14:

3. Remove speed sensor retaining bolt.
4. Remove speed sensor from transaxle.

CAUTION: Carefully remove vehicle speed sensor so that sensor drive gear does not fall into transaxle. Should sensor drive gear fall into the transaxle during sensor removal, drive gear must be reattached to sensor.

5. Remove speed sensor drive gear from speed sensor.


INSTALLATION
1. To install, reverse removal procedure.
2. Confirm vehicle speedometer is functioning properly following installation.
