Power Distribution

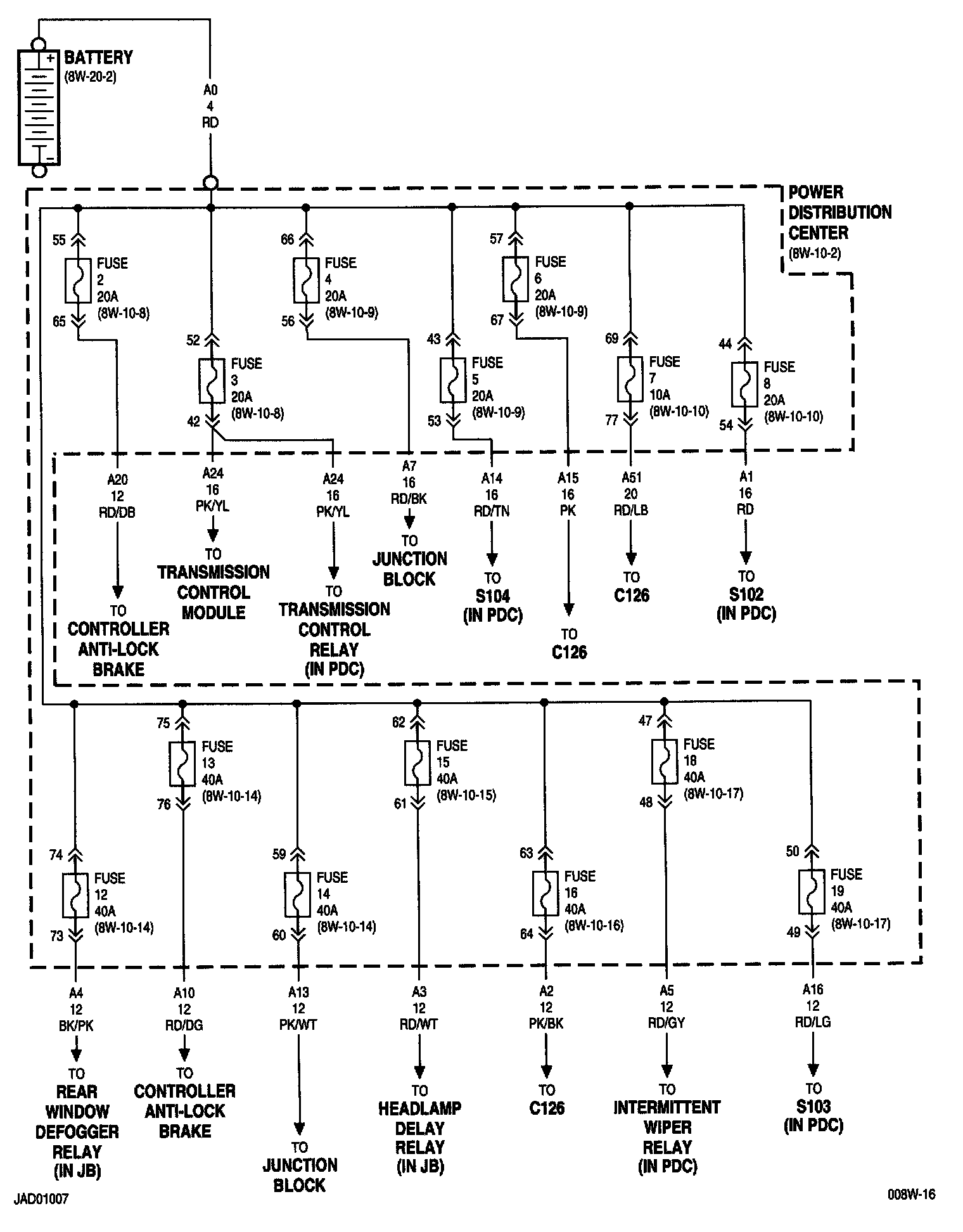

8w-10-7:

Battery
Fuse 2 (PDC)
Fuse 4 (PDC)
Fuse 5 (PDC)
Fuse 6 (PDC)
Fuse 7 (PDC)
Fuse 8 (PDC)
Fuse 12 (PDC)
Fuse 13 (PDC)
Fuse14 (PDC)
Fuse 15 (PDC)
Fuse 16 (PDC)
Fuse 18 (PDC)
Fuse19 (PDC)
Power Distribution Center

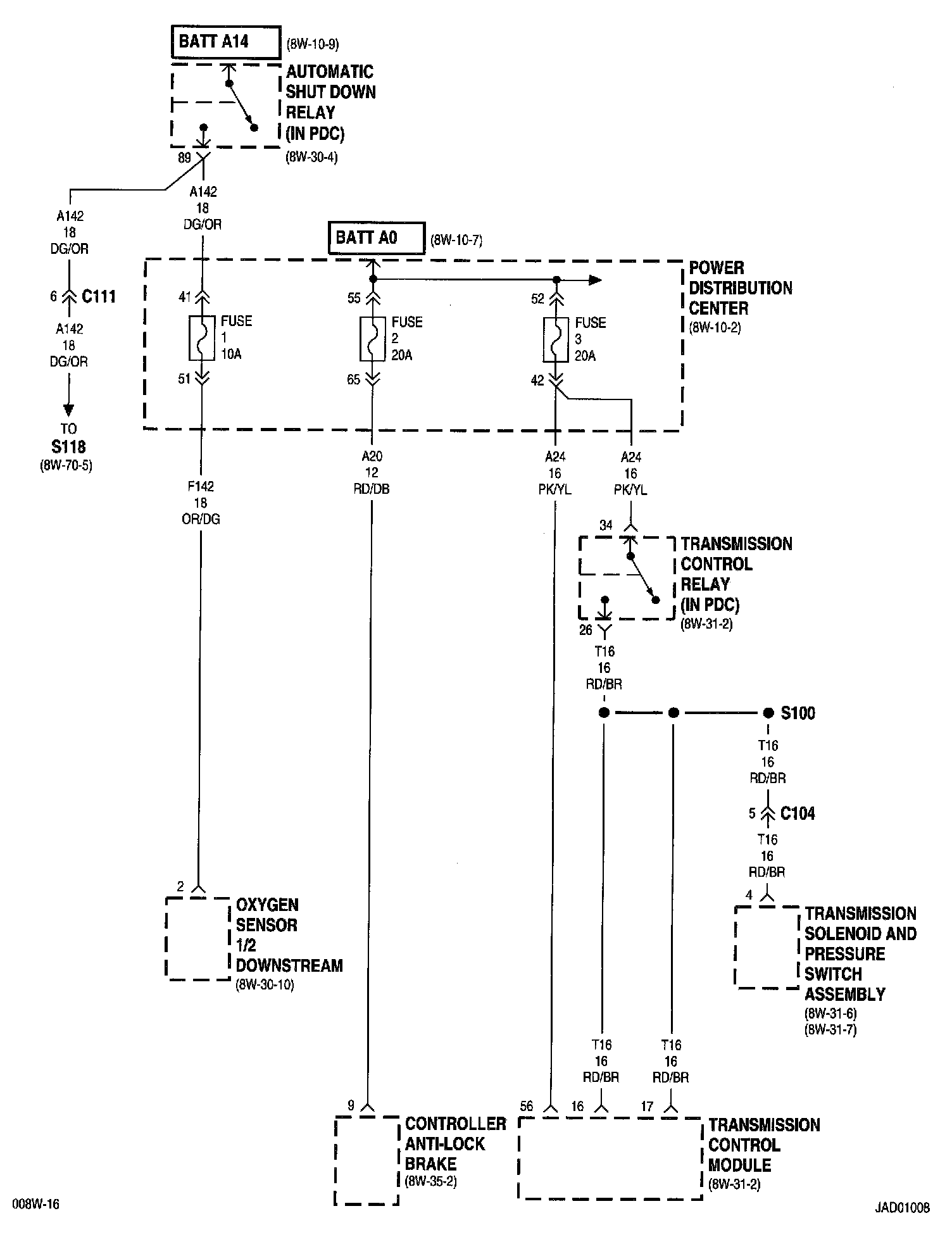

8w-10-8:

Automatic Shut Down Relay
Controller Anti-Lock Brake
Fuse 1 (PDC)
Fuse 2 (PDC)
Oxygen Sensor 1/2 Downstream
Power Distribution Center
Transmission Control Module
Transmission Control Relay
Switch Assembly

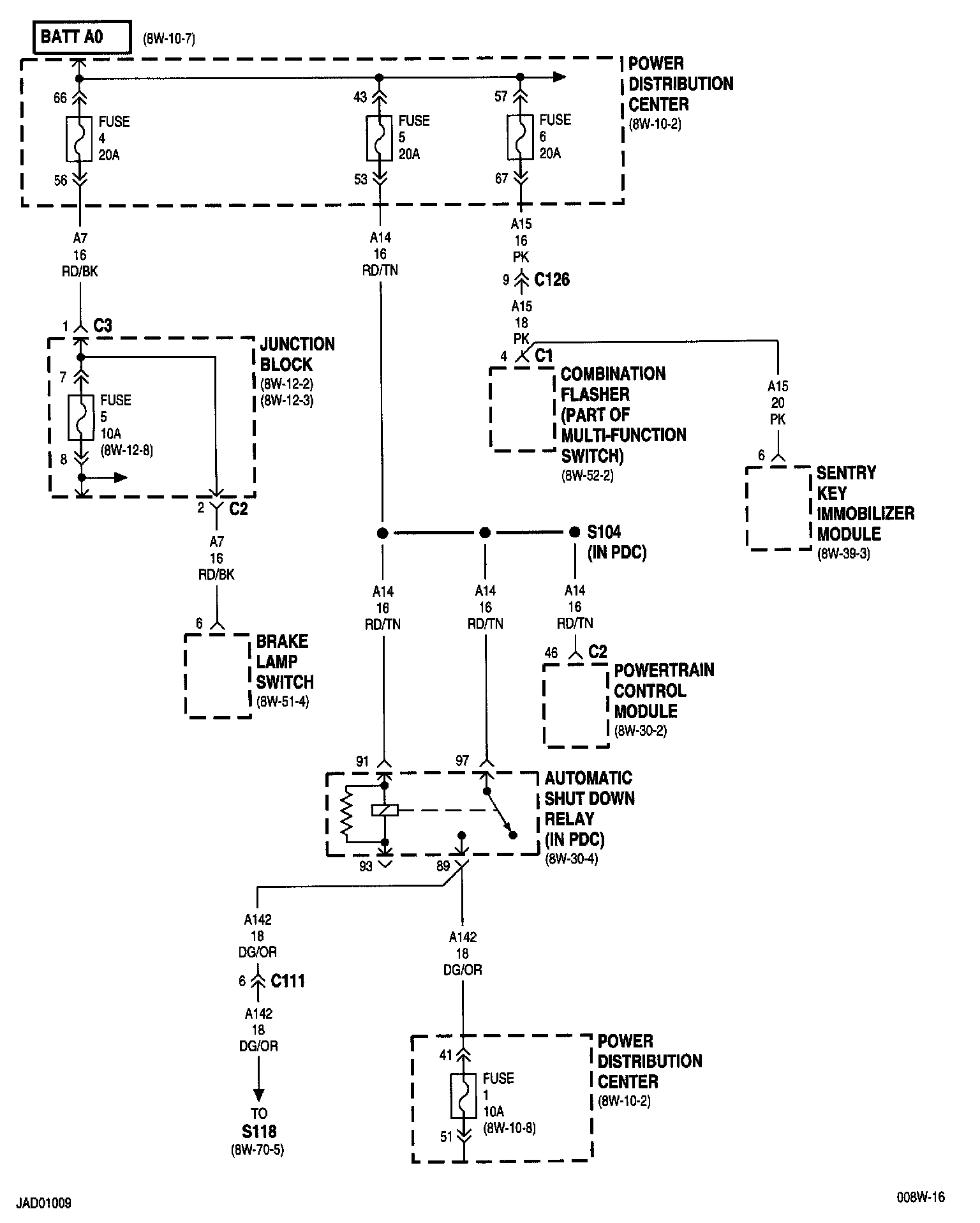

8w-10-9:

Automatic Shut Down Relay
Brake Lamp Switch
Combination Flasher
Fuse 1 (PDC)
Fuse 4 (PDC)
Fuse 5 (JB)
Fuse 5 (PDC)
Fuse 6 (PDC)
Junction Block
Power Distribution Center
Powertrain Control Module
Sentry Key Immobilizer Module

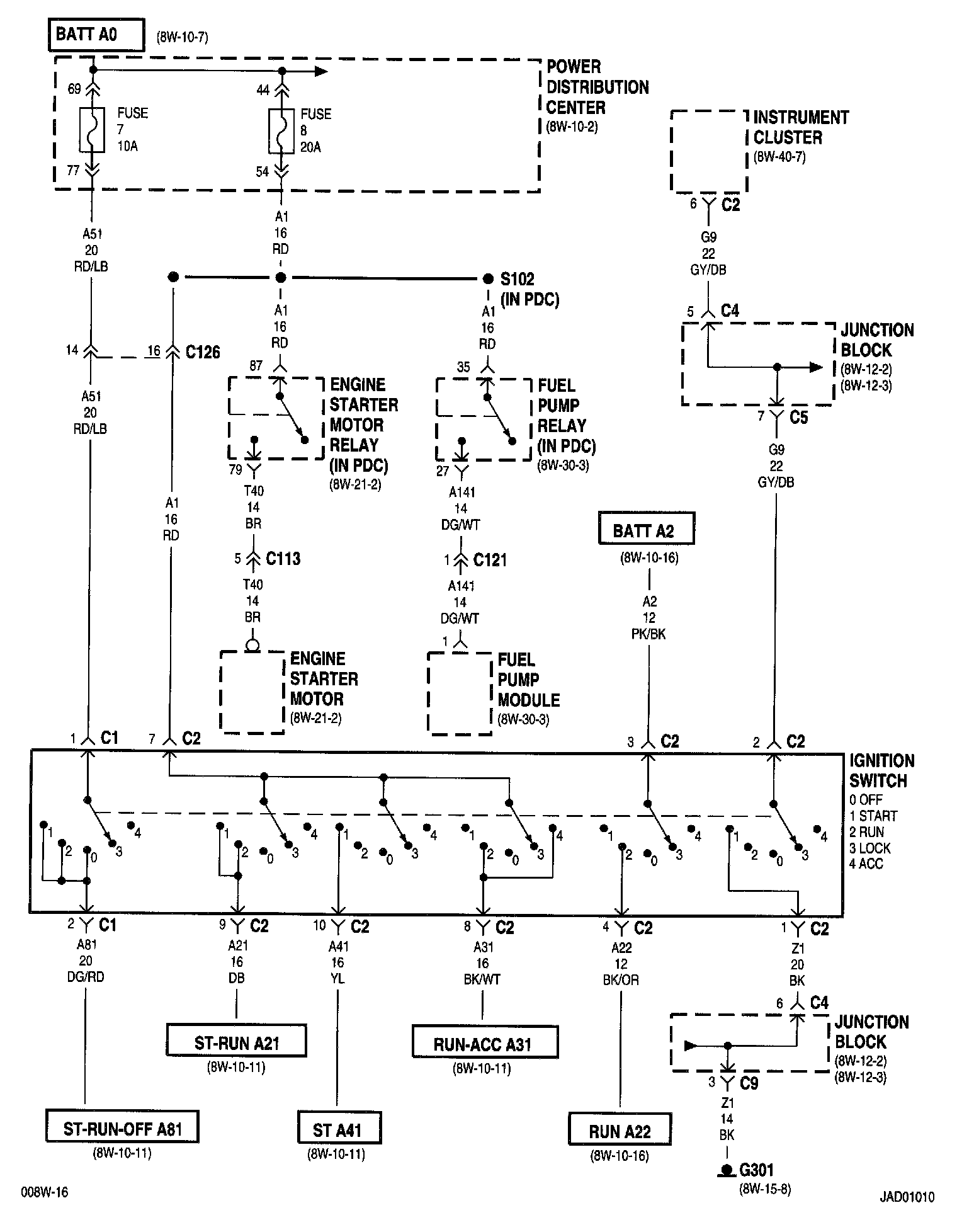

8w-10-10:

Engine Starter Motor
Engine Starter Motor Relay
Fuel Pump Module
Fuel Pump Relay
Fuse 7 (PDC)
Fuse 8 (PDC)
G371
Ignition Switch
Instrument Cluster
Junction Block
Power Distribution Center

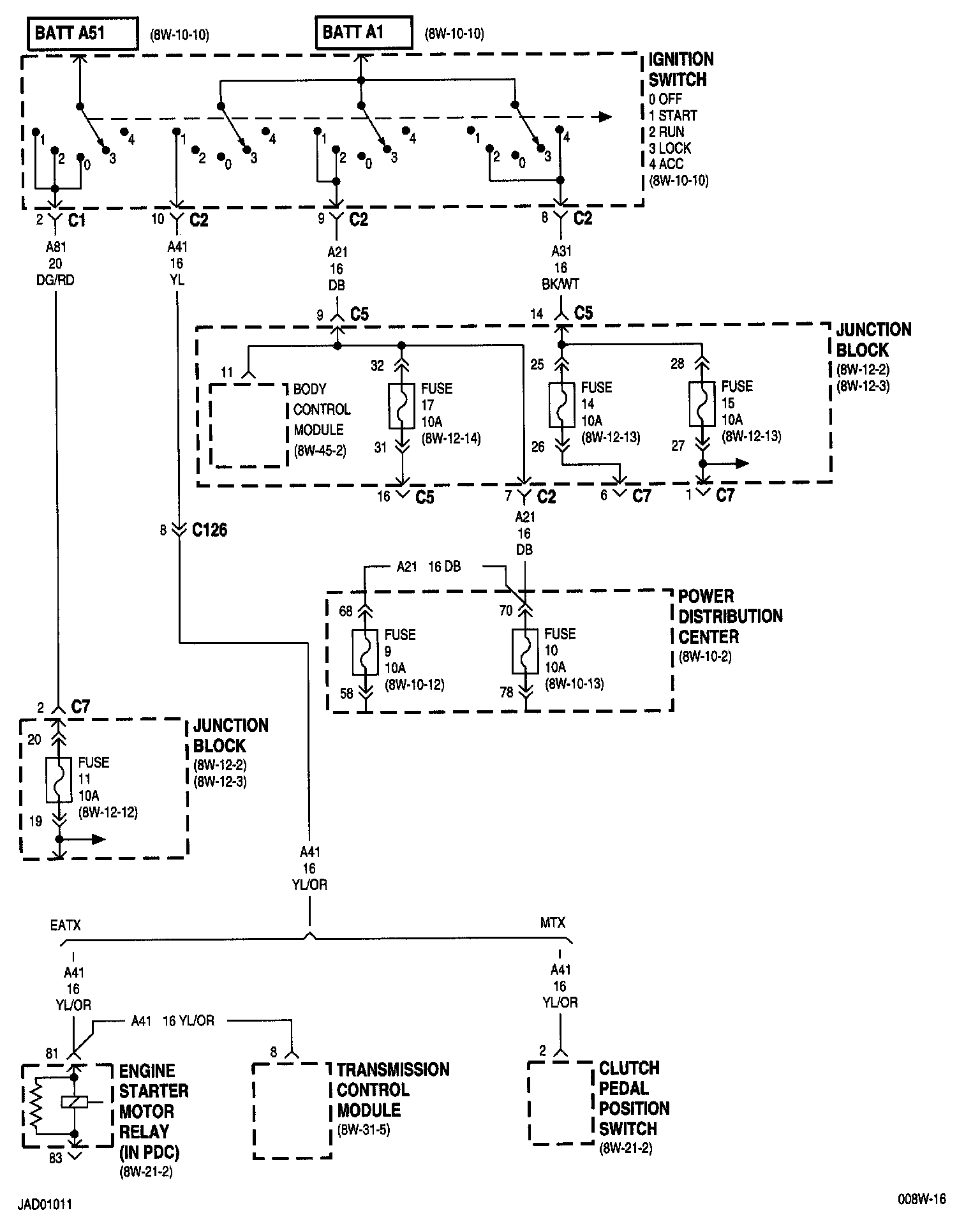

8w-10-11:

Body Control Module
Clutch Pedal Position Switch
Engine Starter Motor Relay
Fuse 9 (PDC)
Fuse 10 (PDC)
Fuse 11 (JB)
Fuse14 (JB)
Fuse 15 (JB)
Fuse 17 (JB)
Ignition Switch
Junction Block
Power Distribution Center
Transmission Control Module

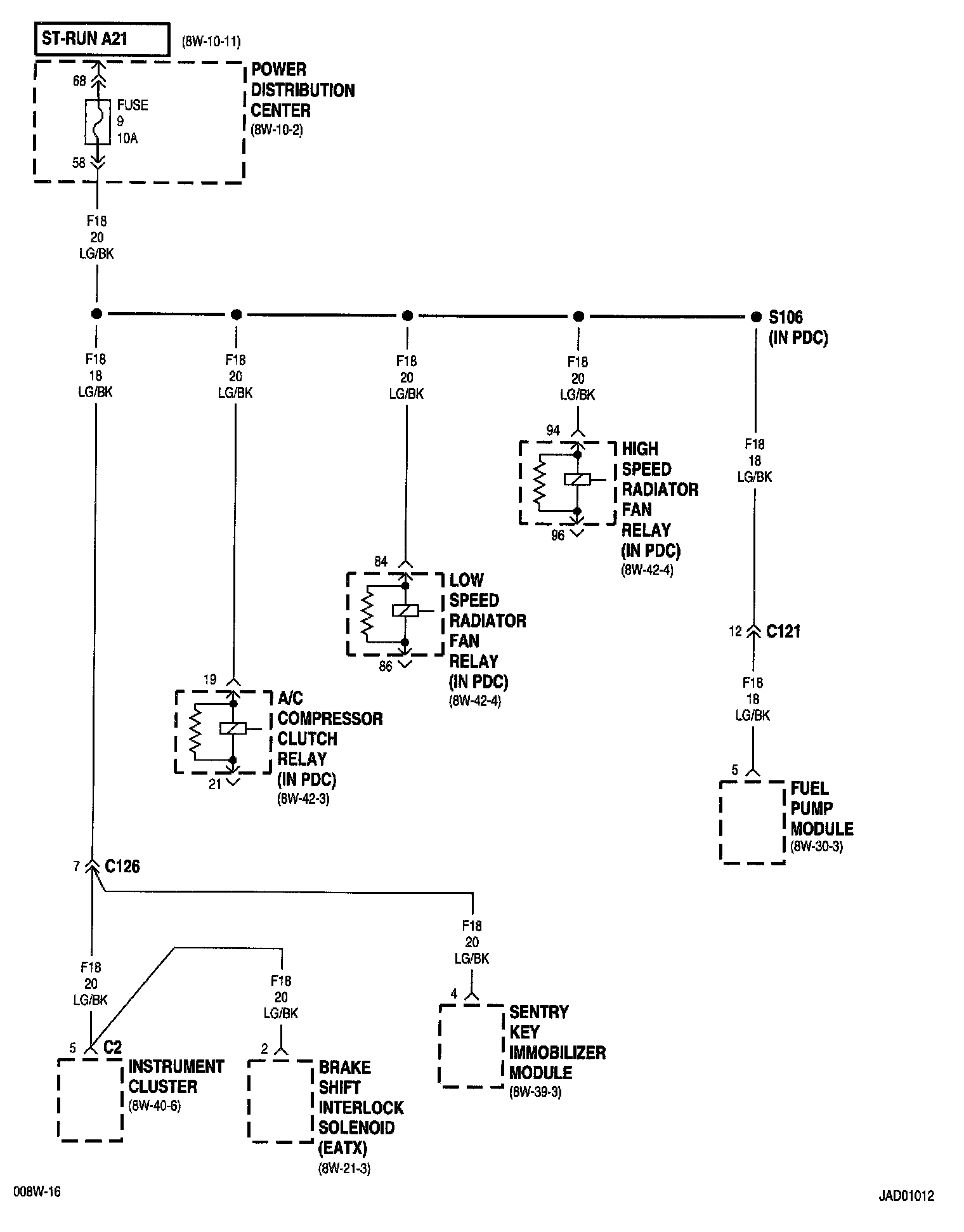

8w-10-12:

A/C Compressor Clutch Relay
Brake Shift Interlock Solenoid
Fuel Pump Module
Fuse 9 (PDC)
High Speed Radiator Fan Relay
Instrument Cluster
Low Speed Radiator Fan Relay
Power Distribution Center
Sentry Key Immobilizer Module

8w-10-13:

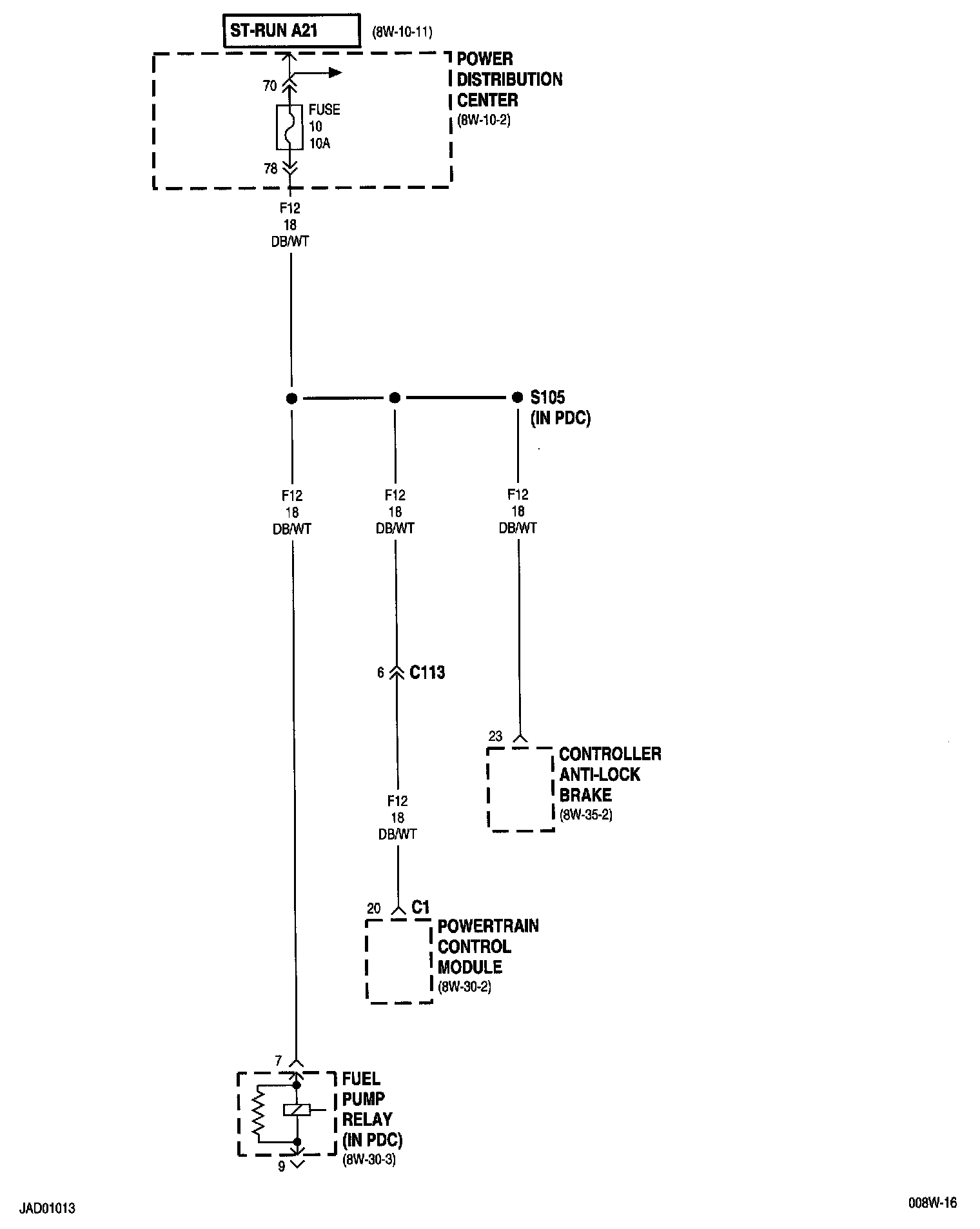

Controller Anti-Lock Brake
Fuel Pump Relay
Fuse 10 (PDC)
Power Distribution Center
Powertrain Control Module

8w-10-14:

Controller Anti-Lock Brake
Fuse 6 (JB)
Fuse 7 (JB)
Fuse 8 (JB)
Fuse 12 (PDC)
Fuse 13 (PDC)
Fuse14 (PDC)
Junction Block
Rear Window Defogger
Rear Window Defogger Relay

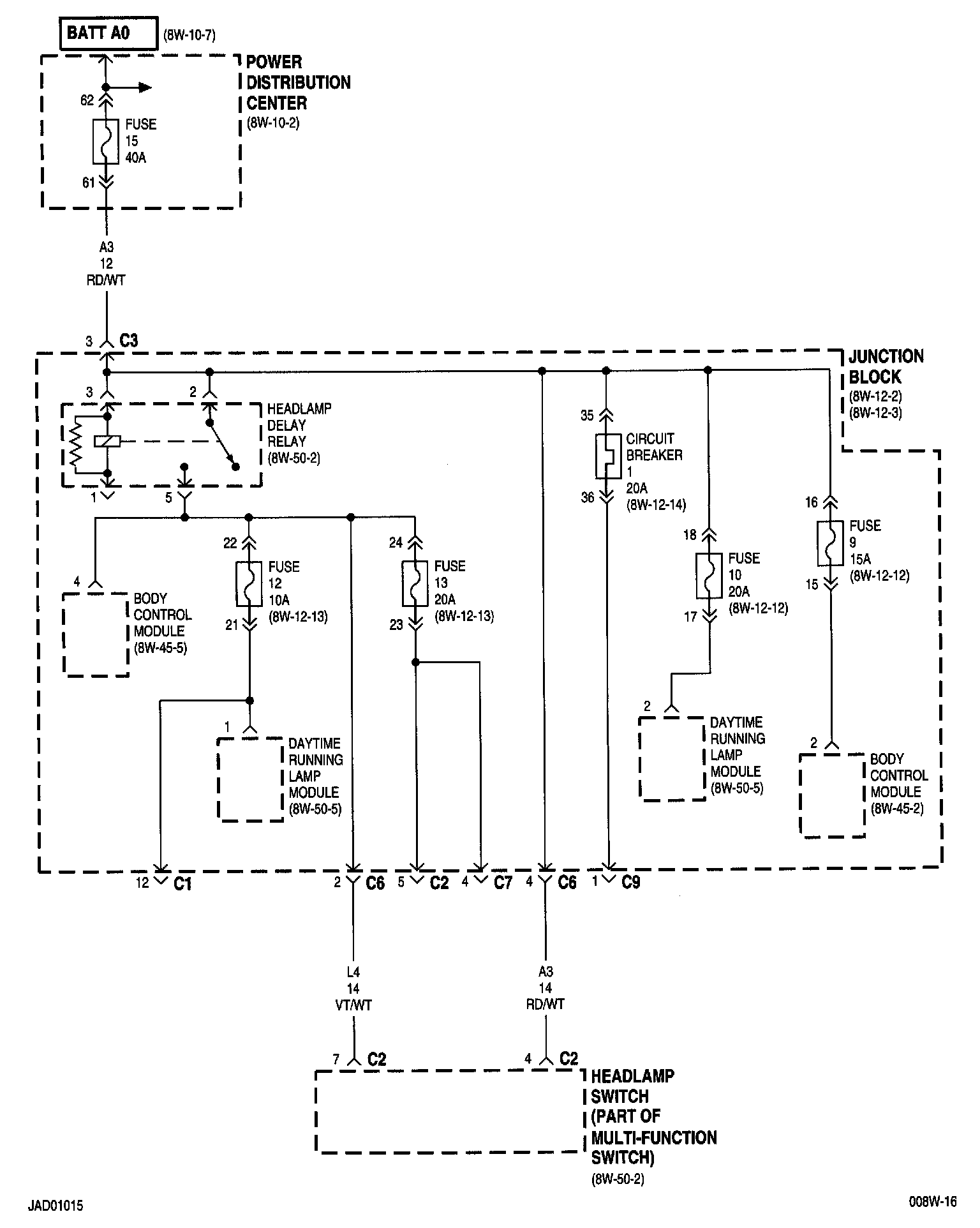

8w-10-15:

Body Control Module
Circuit Breaker 1
Daytime Running Lamp Module
Fuse 9 (JB)
Fuse 10 (JB)
Fuse 12 (JB)
Fuse 13 (JB)
Fuse 15 (PDC)
Headlamp Delay Relay
Headlamp Switch
Junction Block
Power Distribution Center

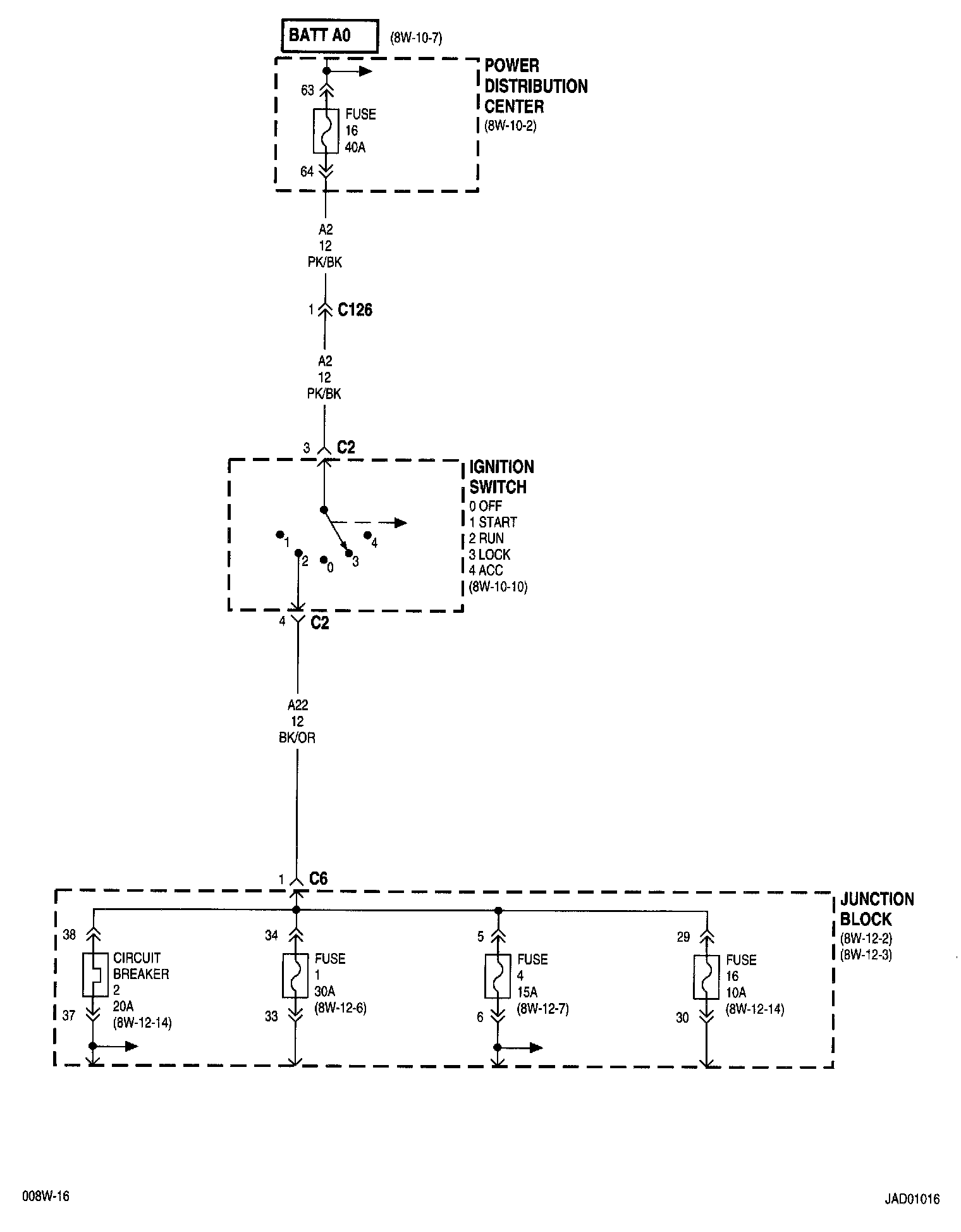

8w-10-16:

Circuit Breaker 2
Fuse 1 (JB)
Fuse 4 (JB)
Fuse 16 (JB)
Fuse 16 (PDC)
Ignition Switch
Junction Block
Power Distribution Center

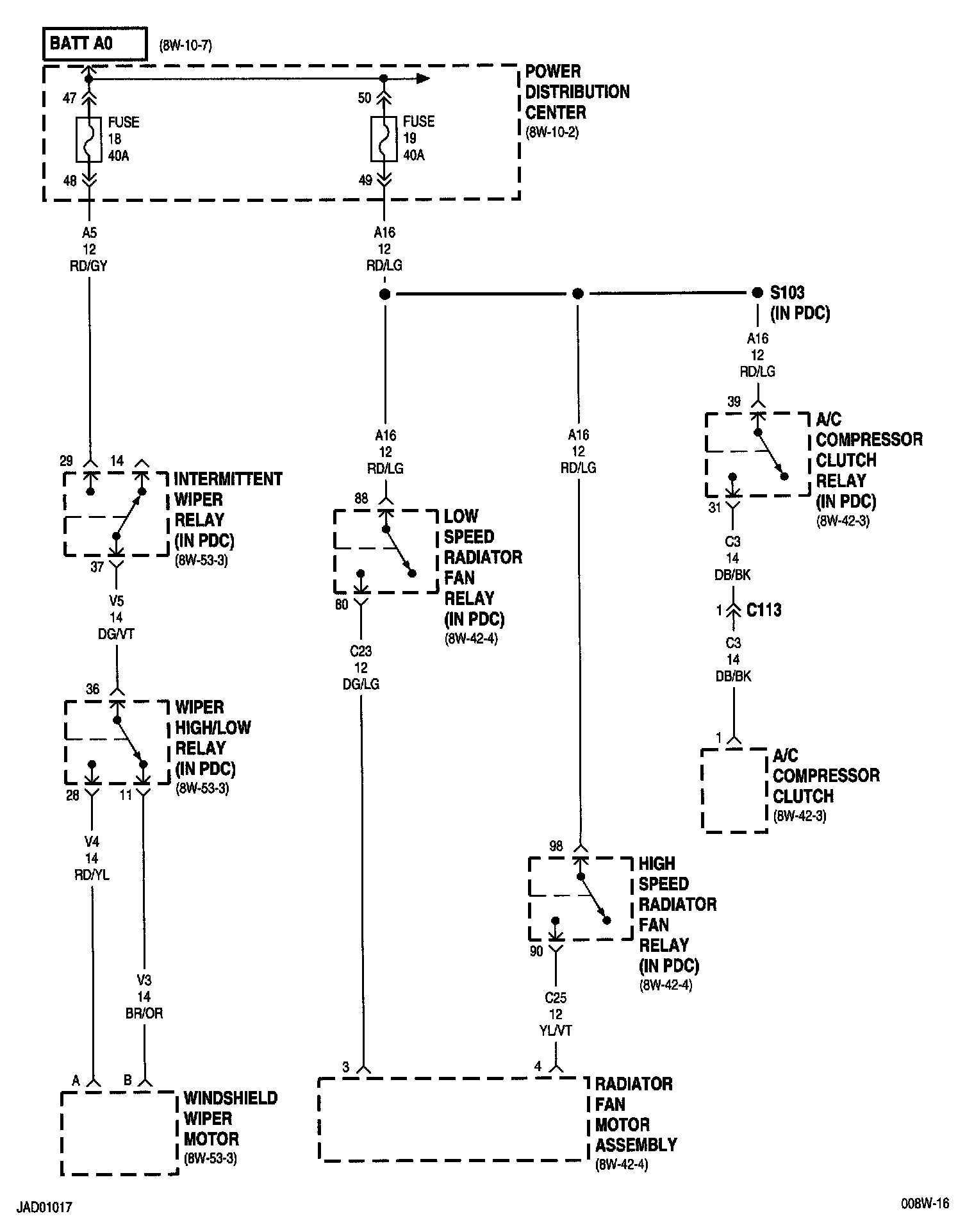

8w-10-17:

A/C Compressor Clutch
A/C Compressor Clutch Relay
Fuse 18 (PDC)
Fuse19 (PDC)
High Speed Radiator Fan Relay
Intermittent Wiper Relay
Low Speed Radiator Fan Relay
Power Distribution Center
Radiator Fan Motor Assembly
Windshield Wiper Motor
Wiper High/Low Relay


NOTE: To view sheets referred to in these diagrams, see Complete Body and Chassis Diagrams Electrical Diagrams
