Removal and Installation

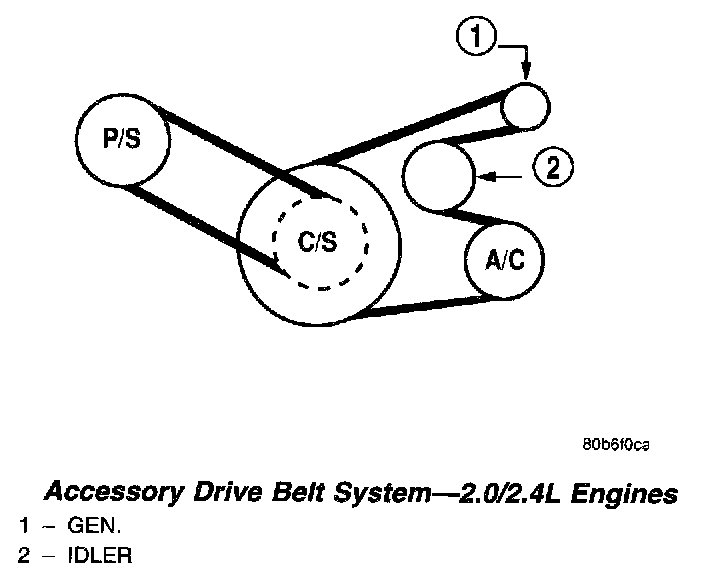

ACCESSORY DRIVE BELT SYSTEM DIAGRAM

AIR CONDITIONING COMPRESSOR AND GENERATOR BELT

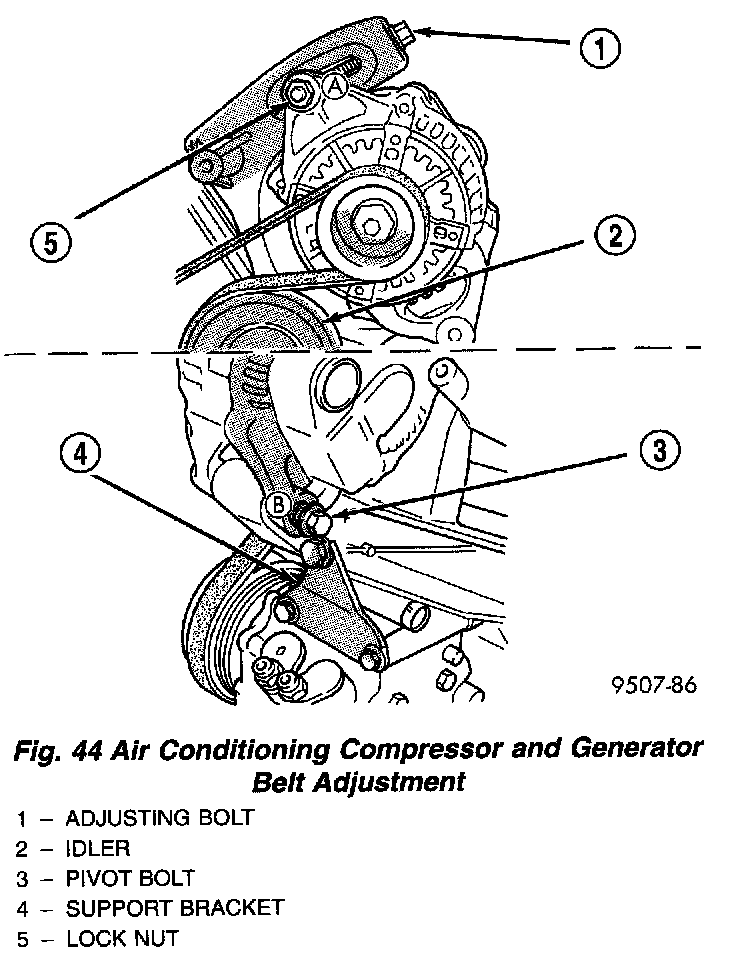

Fig. 44

1. Loosen T-Bolt locking nut (A) and pivot bolt (B) to remove and install the Poly-V belt and/or adjust belt tension.
2. Tighten adjusting bolt to adjust belt tension to specification shown in Belt Tension Chart.
3. Tighten T-Bolt locking nut (A) and pivot bolt (B) to 54 Nm (40 ft. lbs.).

POWER STEERING PUMP BELT
1. From the top of the vehicle loosen pivot bolt (C).

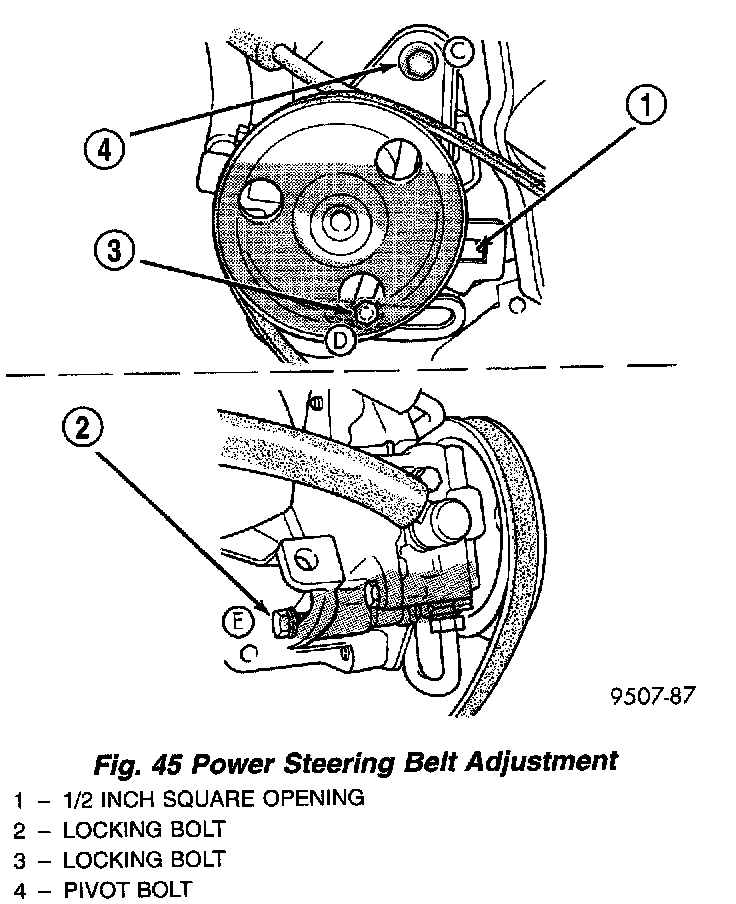

Fig. 45

2. From under the vehicle loosen locking bolts (D) and (E) (Fig. 45).
3. Install the belt. Adjust belt tension with 1/2 in. breaker bar installed in adjusting bracket. See Belt Tension Chart.
4. Tighten locking bolt (D) to 54 Nm (40 ft. lbs.).
5. Tighten locking bolt (E) to 28 Nm (250 in. lbs.).
6. Tighten pivot bolt (C) to 54 Nm (40 ft. lbs.).

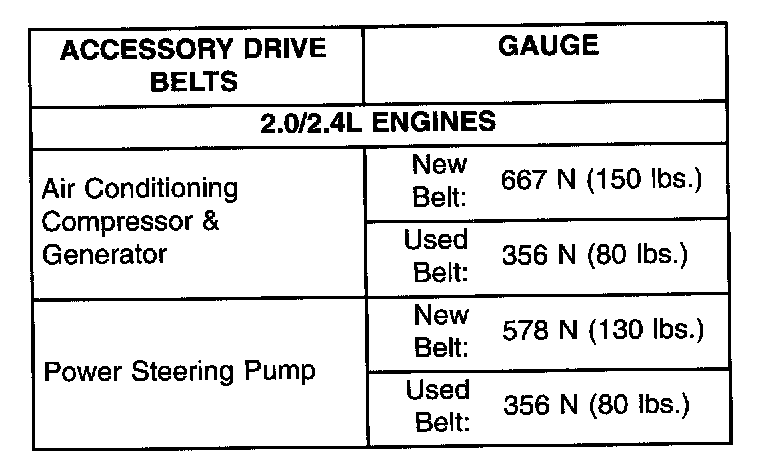

BELT TENSION CHART
