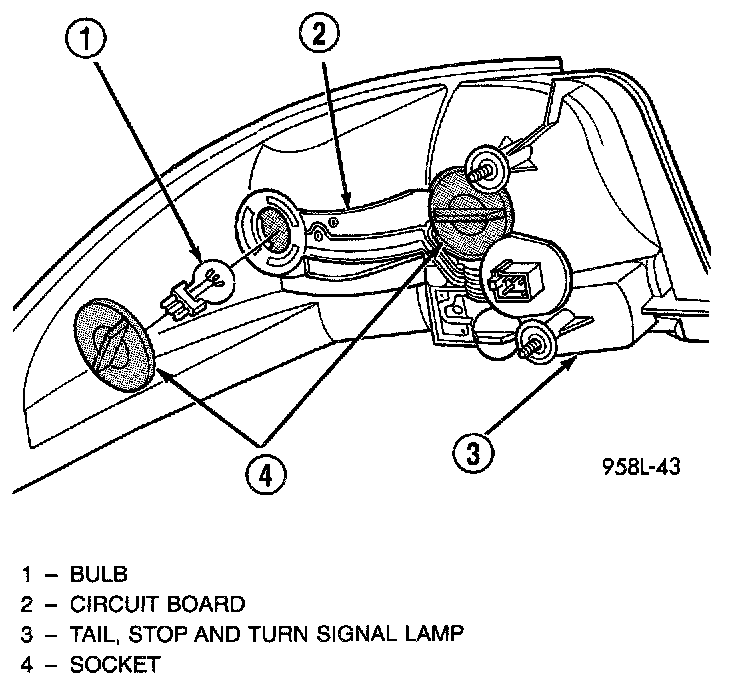

Tail/Brake/Turn Signal Lamp Bulb Replacement

REMOVAL
1. Release decklid latch and open decklid.
2. Remove wing-nuts attaching tail lamp to rear closure panel.
3. Remove lamp from opening in quarter panel.
4. Disconnect wire connector from back of tail lamp.
5. Rotate socket counterclockwise one quarter turn.

Tail, brake and Turn Signal Lamp Bulb:

6. Pull socket from back of lamp.
7. Pull bulb from socket.

INSTALLATION
1. Push bulb into socket.
2. Push socket into back of lamp.
3. Rotate socket clockwise one quarter turn.
4. Connect wire connector to back of tail lamp.
5. Place lamp into opening in quarter panel.
6. Install wing-nuts attaching tail lamp to rear closure panel.
7. Close decklid.
