Turn Signal Lamp: Service and Repair

REMOVAL
1. Release decklid latch and open decklid.

Tail Lamp:

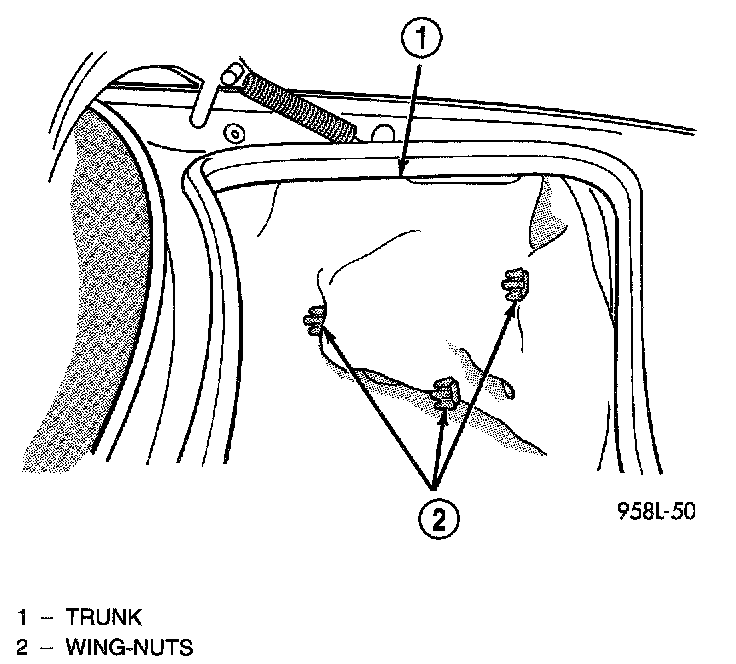

2. Remove wing-nuts attaching tail lamp to rear closure panel.
3. Remove lamp from opening in quarter panel.

Tail Lamp Wire Connector:

4. Disconnect wire connector from back of tail lamp.
5. Remove tail lamp from vehicle.

INSTALLATION
1. Place tail lamp into position.
2. Connect wire connector to back of tail lamp.
3. Install lamp to opening in quarter panel.
4. Install wing-nuts attaching tail lamp to rear closure panel.
5. Close decklid.
