Tail Lamp Circuit Board Replacement

REMOVAL
1. Remove tail lamp.
2. Remove bulb sockets.

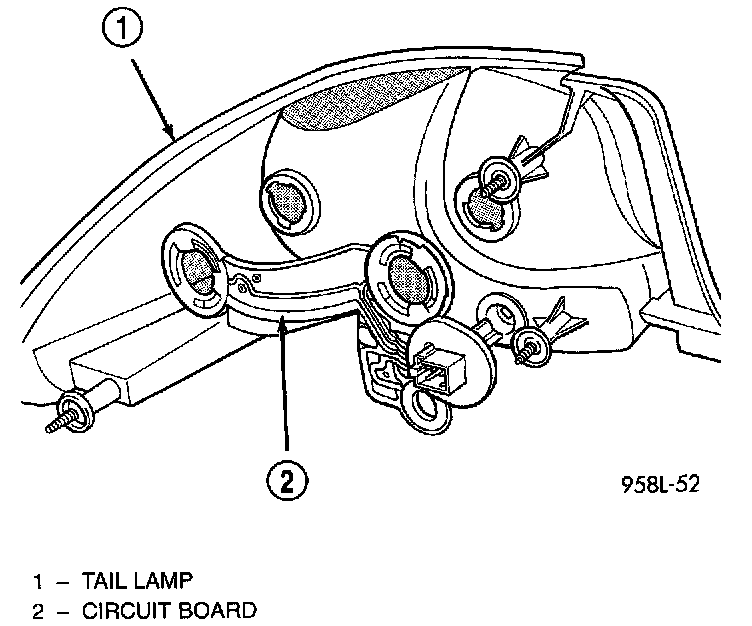

Tail Lamp Circuit Board:

3. Remove circuit board from tail lamp.

INSTALLATION
1. Install circuit board into tail lamp.
2. Install bulb sockets.
3. Install tail lamp.
