License Plate Lamp: Service and Repair

REMOVAL

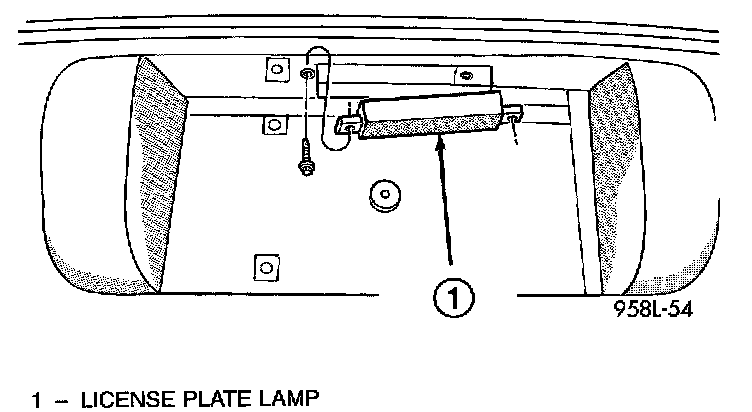

License Plate Lamp:

1. Remove screws attaching license plate lamp to rear bumper fascia.
2. Remove license plate lamp from fasci(a)
3. Remove socket from lamp.
4. Remove lamp from vehicle.

INSTALLATION
1. Place lamp into position.
2. Install socket from lamp.
3. Install license plate lamp to fasci(a)
4. Install screws attaching license plate lamp to rear bumper fasci(a)
