Headlamp Bulb: Service and Repair

REMOVAL

CAUTION: Do not touch the glass of halogen bulbs with fingers or other possibly oily surface, reduced bulb life will result.

1. Release hood latch and open hood.
2. Remove screws attaching headlamp module to radiator closure panel.
3. Remove headlamp module from radiator closure panel.

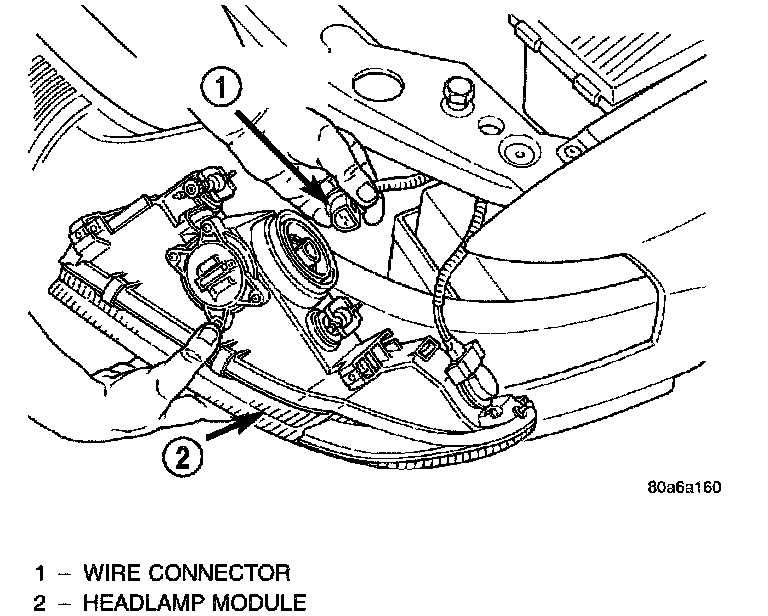

Headlamp Connector:

4. Disconnect wire connector from back of headlamp bulb.
5. Rotate retaining ring counterclockwise one quarter turn.

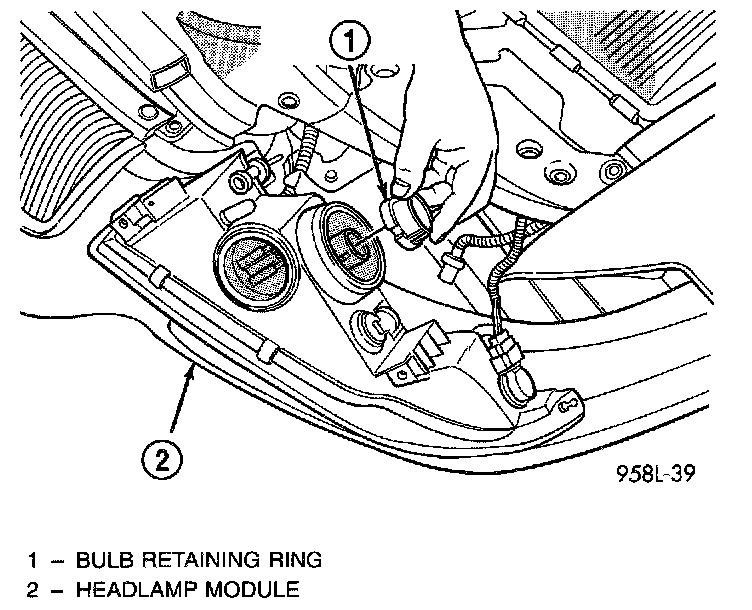

Headlamp Bulb Retaining Ring:

6. Remove retaining ring from headlamp module.

Headlamp Bulb:

7. Pull bulb from headlamp module.

INSTALLATION
1. Place bulb into headlamp module.
2. Install retaining ring to headlamp module.
3. Rotate retaining ring clockwise one quarter turn.
4. Connect wire connector to back of headlamp bulb.
5. Install headlamp module to radiator closure panel.
6. Install screws attaching headlamp module to radiator closure panel.
7. Verify proper headlamp alignment.
