Fog/Driving Lamp: Service and Repair

REMOVAL
1. Remove screws attaching fog lamp to front bumper fasci(a)
2. Remove fog lamp from fasci(a)
3. Disconnect wire connector from fog lamp bulb base.

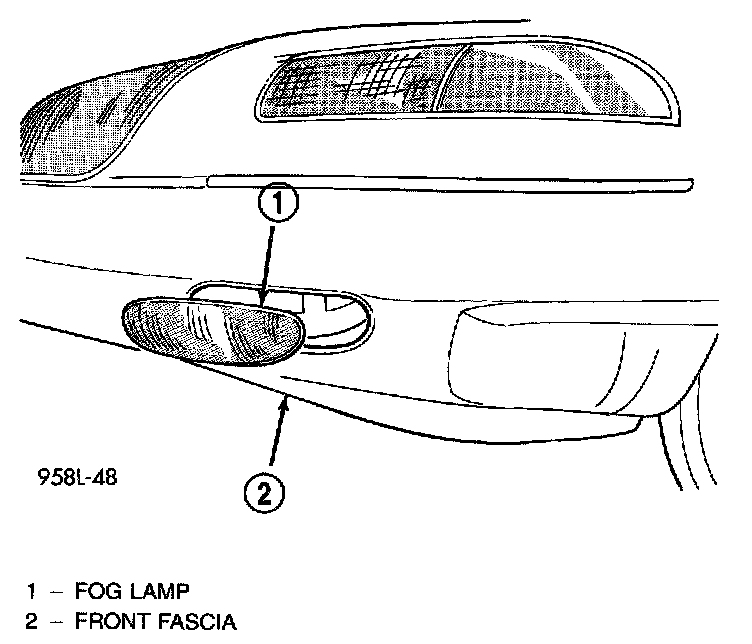

Fog Lamp:

4. Remove fog lamp from vehicle.

INSTALLATION
1. Place fog lamp into position.
2. Connect wire connector to fog lamp bulb base.
3. Install fog lamp to fasci(a)
4. Install screws attaching fog lamp to front bumper fasci(a)
