Fog/Driving Lamp Bulb: Service and Repair

REMOVAL
1. Remove fog lamp from front bumper fascia.
2. Disconnect wire connector from back of fog lamp.
3. Rotate bulb base counterclockwise one quarter turn.

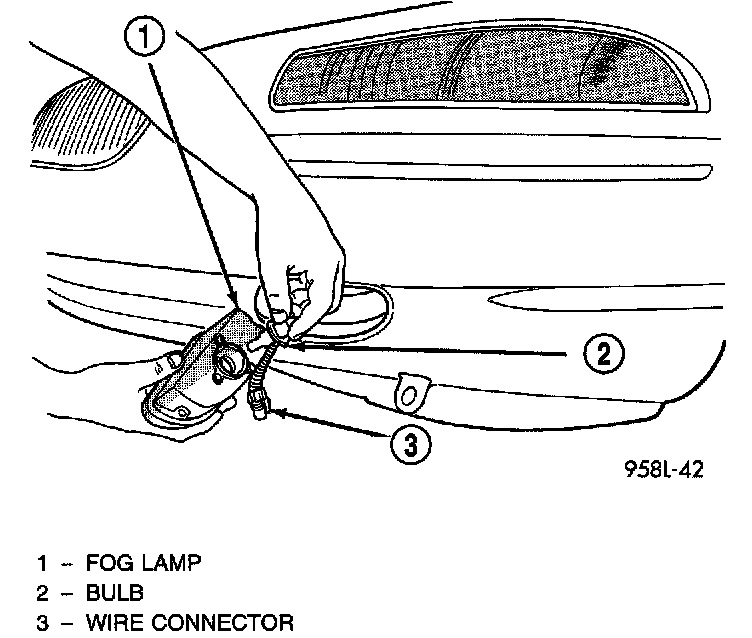

Fog Lamp Bulb:

4. Pull bulb from back of lamp.

INSTALLATION
1. Place bulb into back of lamp.
2. Rotate bulb base clockwise one quarter turn.
3. Connect wire connector from back of fog lamp.
4. Install fog lamp to front bumper fascia.
