Fog/Driving Lamp: Adjustments

FOG LAMP ALIGNMENT

Fog Lamp Alignment:

Prepare a alignment screen. A properly aligned fog lamp will project a pattern on the alignment screen 100 mm (4 in.) below the fog lamp center line and straight ahead.

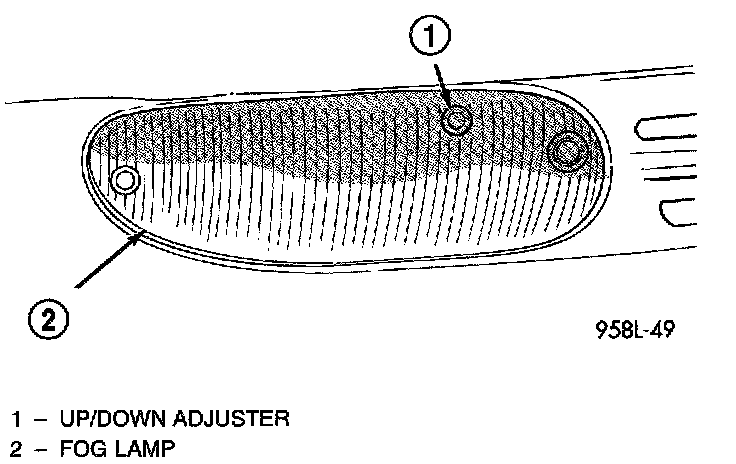

Fog Lamp Adjuster:

To adjust fog lamp alignment, rotate alignment screw to achieve the specified low beam hot spot pattern.
