Center Mounted Brake Lamp: Service and Repair

REMOVAL
1. Release decklid latch and open decklid.
2. Remove socket from CHMSL.

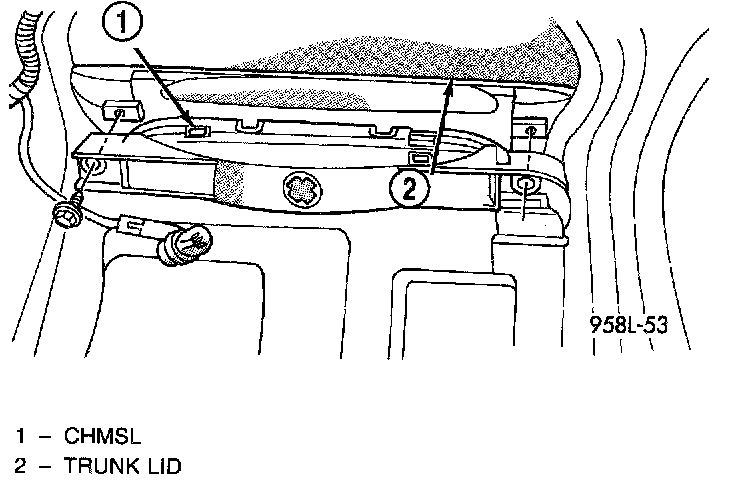

Center High Mounted Stop Lamp:

3. Remove nuts attaching CHMSL to decklid.
4. Remove CHMSL from decklid.

INSTALLATION
1. Install CHMSL to decklid.
2. Install nuts attaching CHMSL to decklid.
3. Install socket into CHMSL.
4. Close decklid.
