Center Mounted Brake Lamp Bulb: Service and Repair

Center High Mounted Stop Lamp (CHMSL) Bulb Replacement

REMOVAL
1. Release decklid latch and open decklid.
2. Rotate socket counterclockwise one quarter turn.
3. Pull socket from back of lamp.

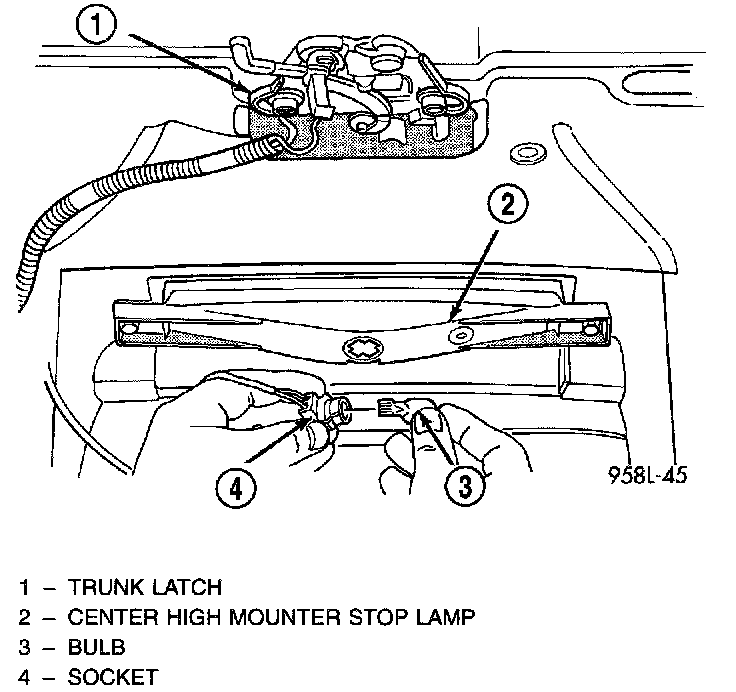

Center High Mounted Stop Lamp Bulb:

4. Pull bulb from socket.

INSTALLATION
1. Push bulb into socket,
2. Push socket into back of lamp.
3. Rotate socket clockwise one quarter turn.
4. Close decklid.
