Cluster Printed Circuit Board Replacement

The Instrument Cluster must be removed to service the cluster printed circuit board. Instrument Cluster Replacement

REMOVAL
1. Remove six cluster back cover retaining screws and remove the cover.
2. Disconnect odometer/transmission range indicator connector from the printed circuit board.

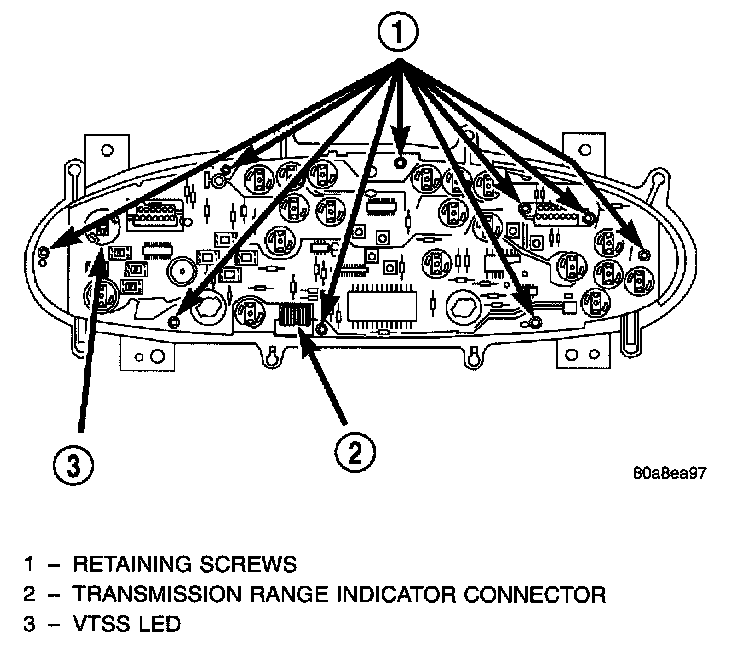

Printed Circuit Board:

3. Remove nine printed circuit board attaching screws and remove. There are two screws located at the base of each connector.

INSTALLATION
For installation, reverse the above procedures.
