Electrical Diagrams

Instrument Cluster:

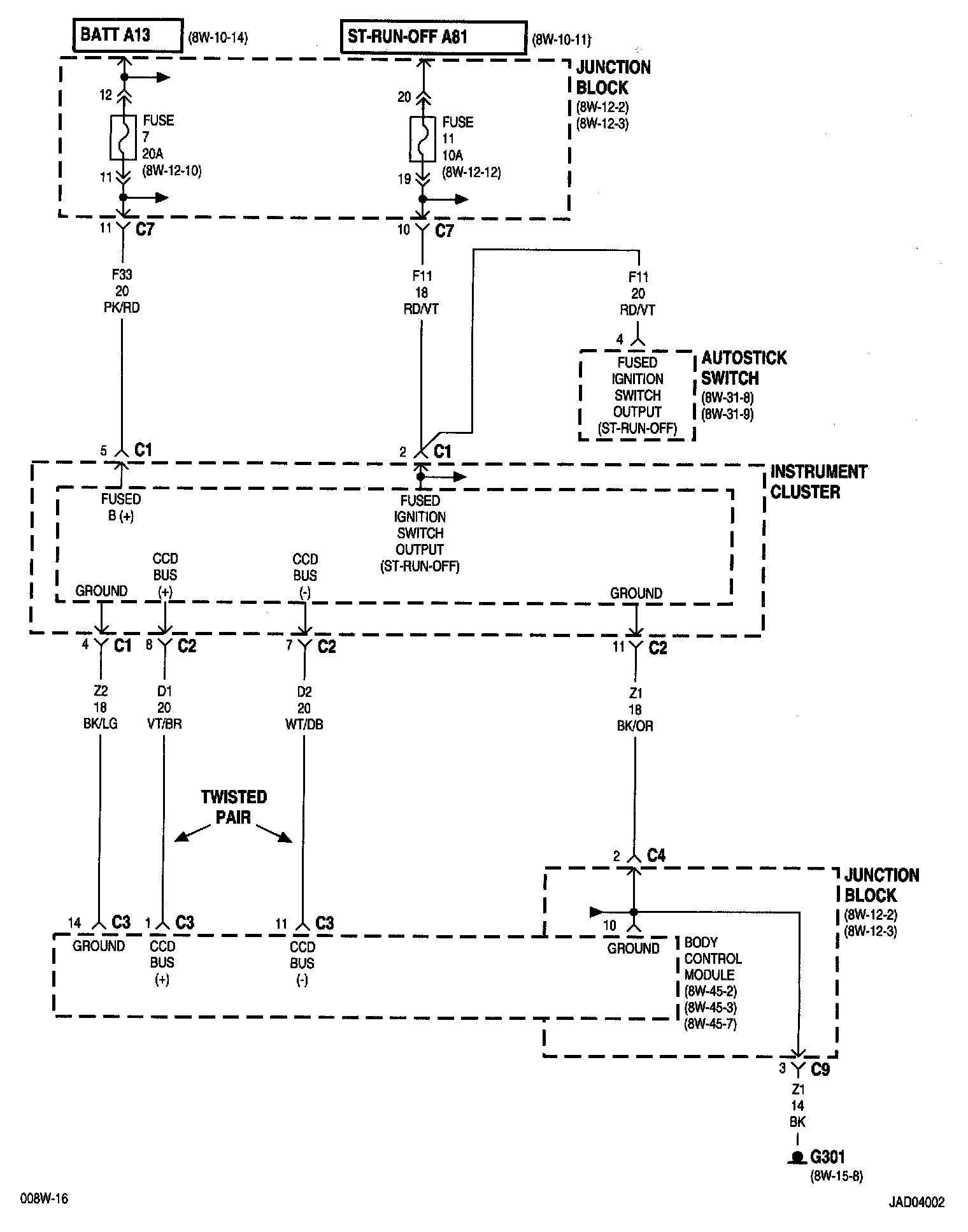

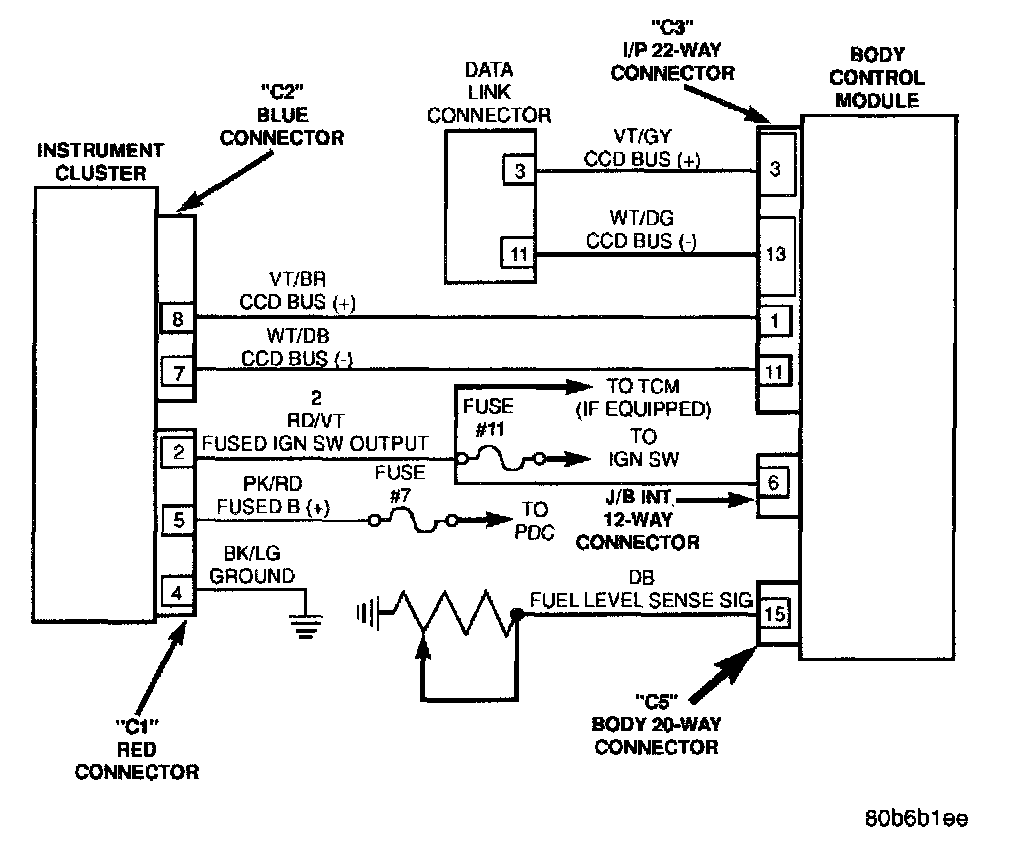

8w-40-2:

Autostick Switch
Body Control Module
Fuse 7 (JB)
Fuse 11 (JB)
G301
Instrument Cluster
Junction Block

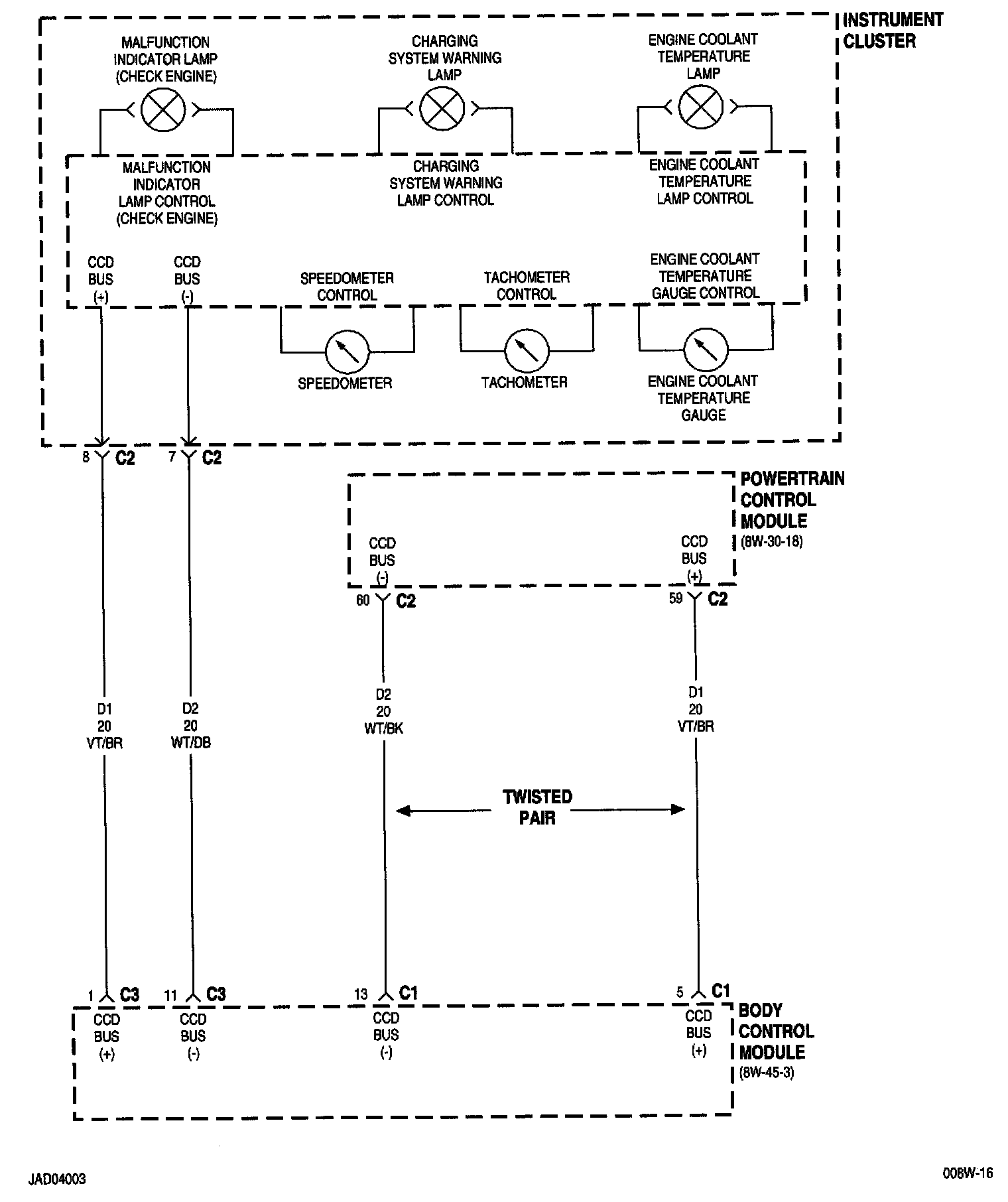

8w-40-3:

Body Control Module
Charging System Warning Lamp
Engine Coolant Temperature
Gauge
Instrument Cluster
(Check Engine)
Powertrain Control Module
Speedometer
Tachometer

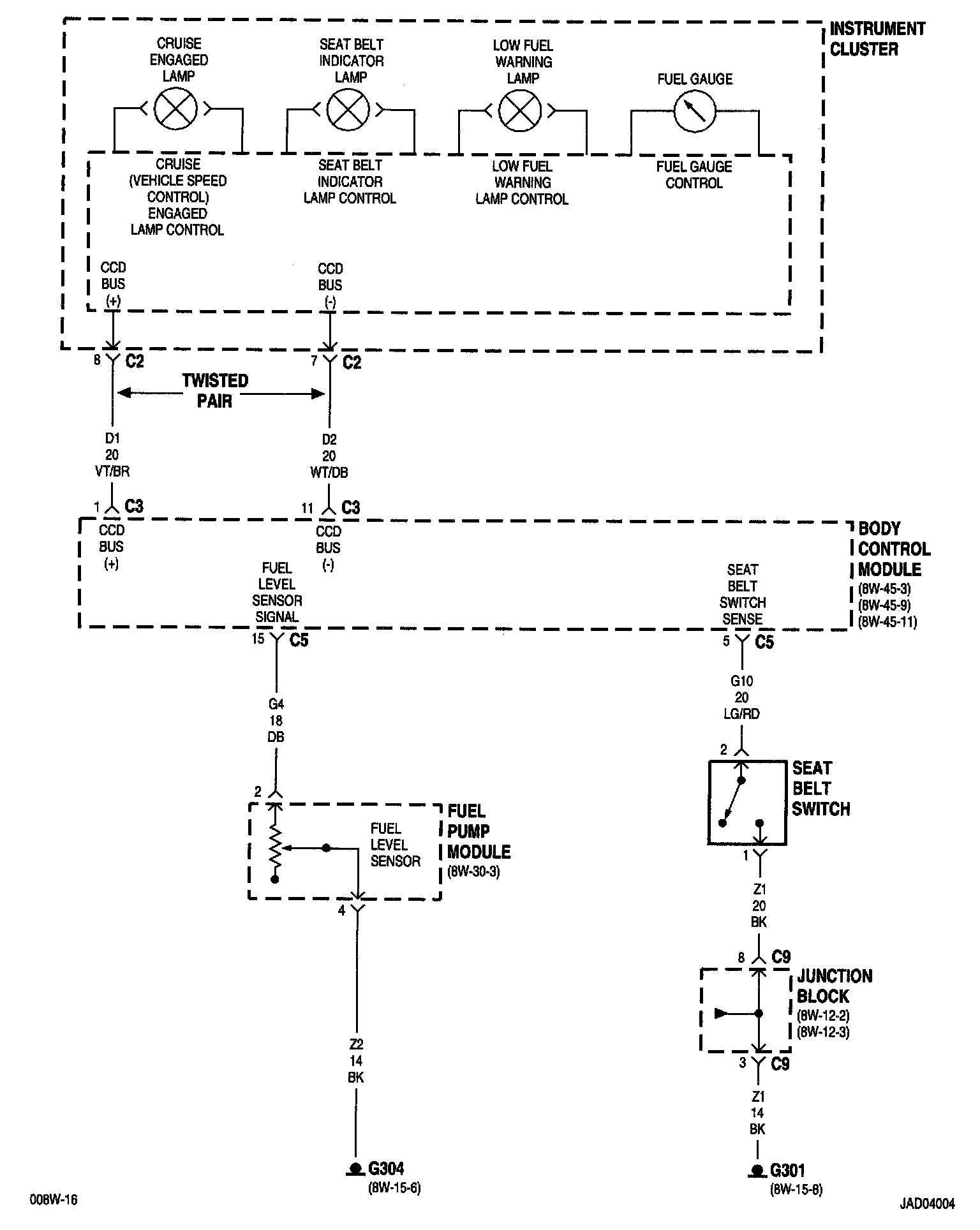

8w-40-4:

Body Control Module
Cruise Engaged Lamp
Fuel Gauge
Fuel Level Sensor
Fuel Pump Module
G301
G304
Instrument Cluster
Junction Block
Seat Belt Indicator Lamp
Seat Belt Switch

8w-40-5:

Airbag Control Module
Airbag Warning Lamp
Body Control Module
High Beam Indicator
Instrument Cluster
Odometer/Trip
Powertrain Control Module
PRNDL/Autostick Indicator
Transmission Control Module

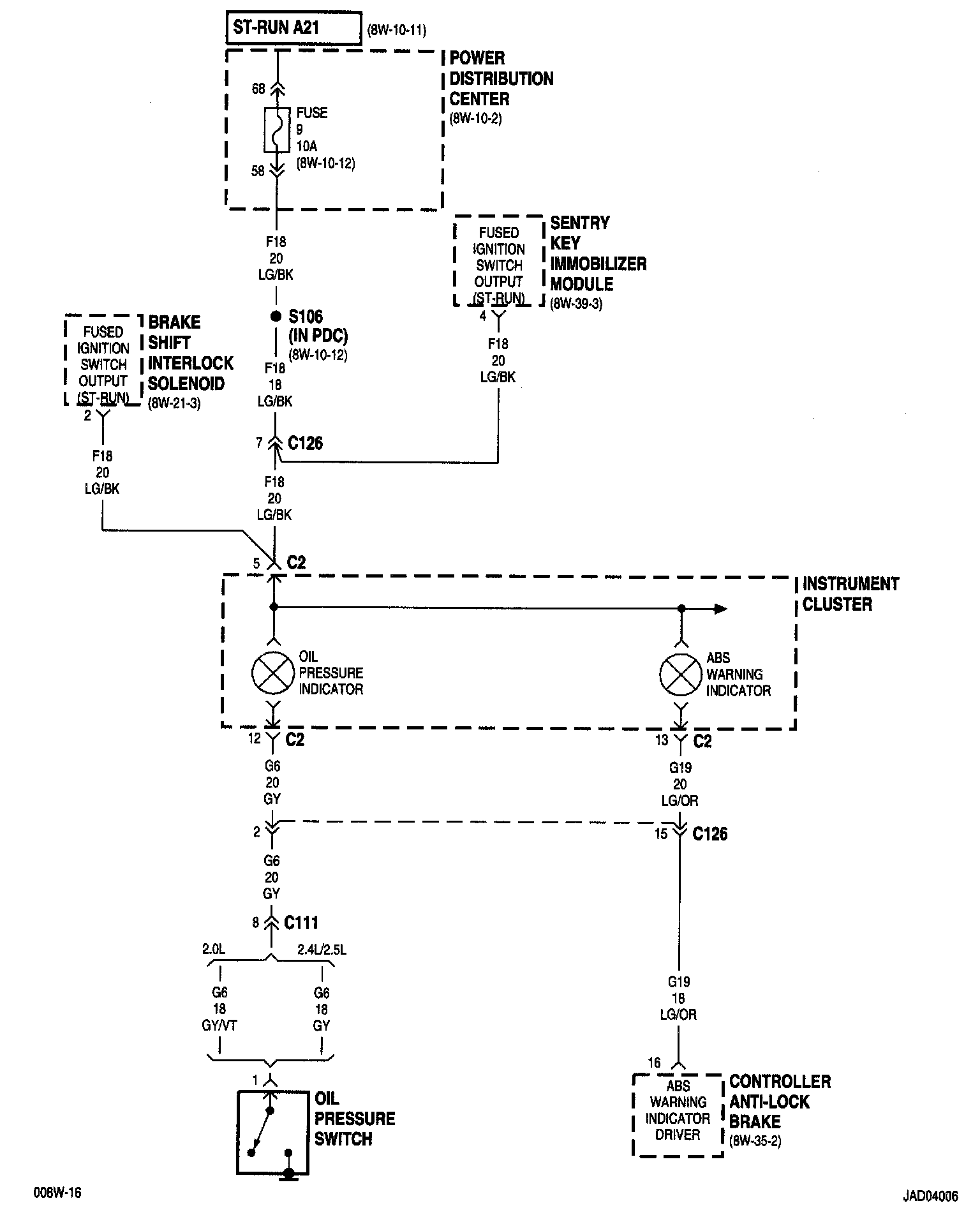

8w-40-6:

ABS Warning Indicator
Brake Shift Interlock Solenoid
Controller Anti-Lock Brake
Fuse 9 (PDC)
Instrument Cluster
Oil Pressure Indicator
Oil Pressure Switch
Power Distribution Center
Sentry Key Immobilizer Module

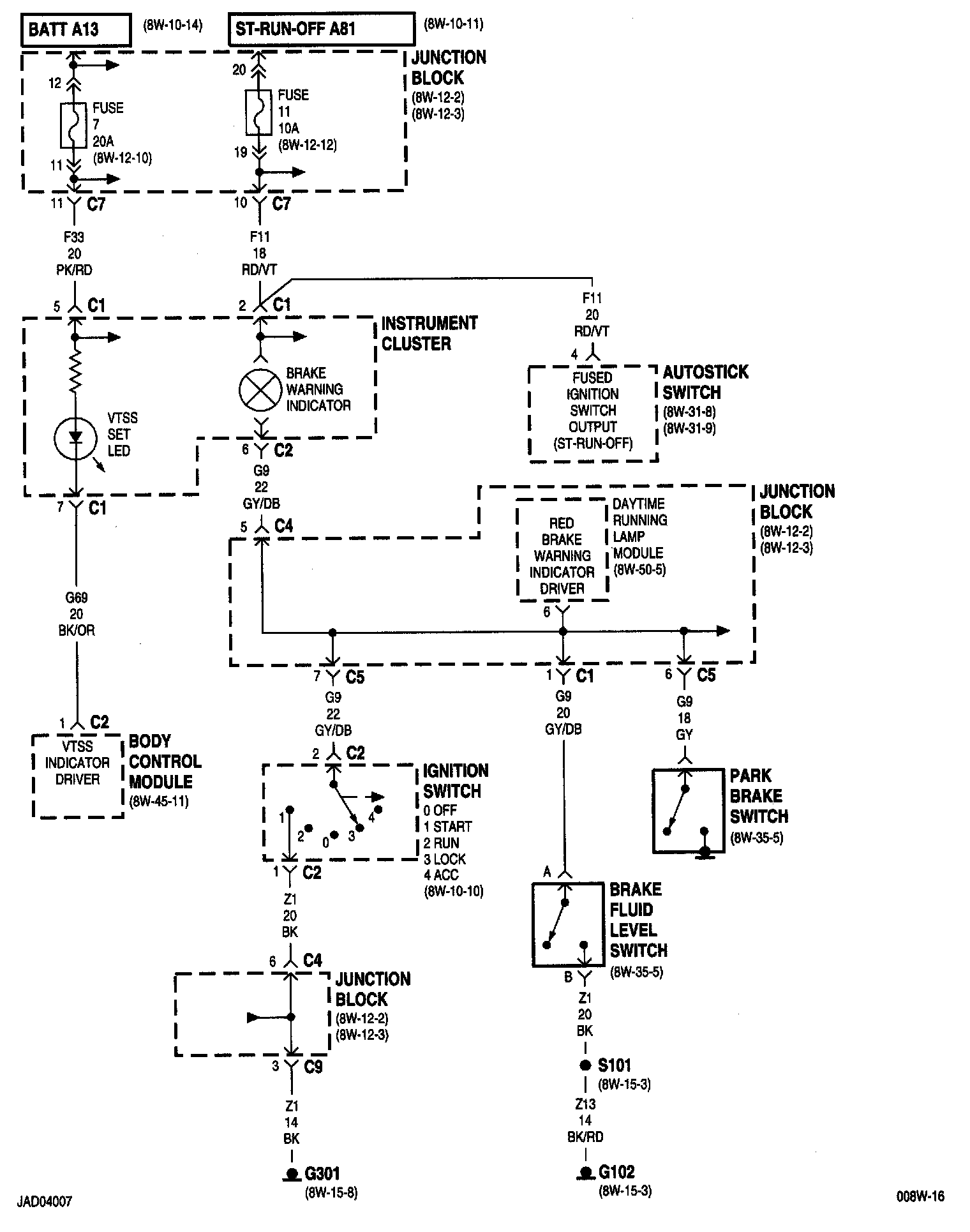

8w-40-7:

Autostick Switch
Body Control Module
Brake Warning Indicator
Brake Fluid Level Switch
Fuse 7 (JB)
Fuse 11 (JB)
G102
G301
Ignition Switch
Instrument Cluster
Junction Block
Park Brake Switch
VTSS Set LED

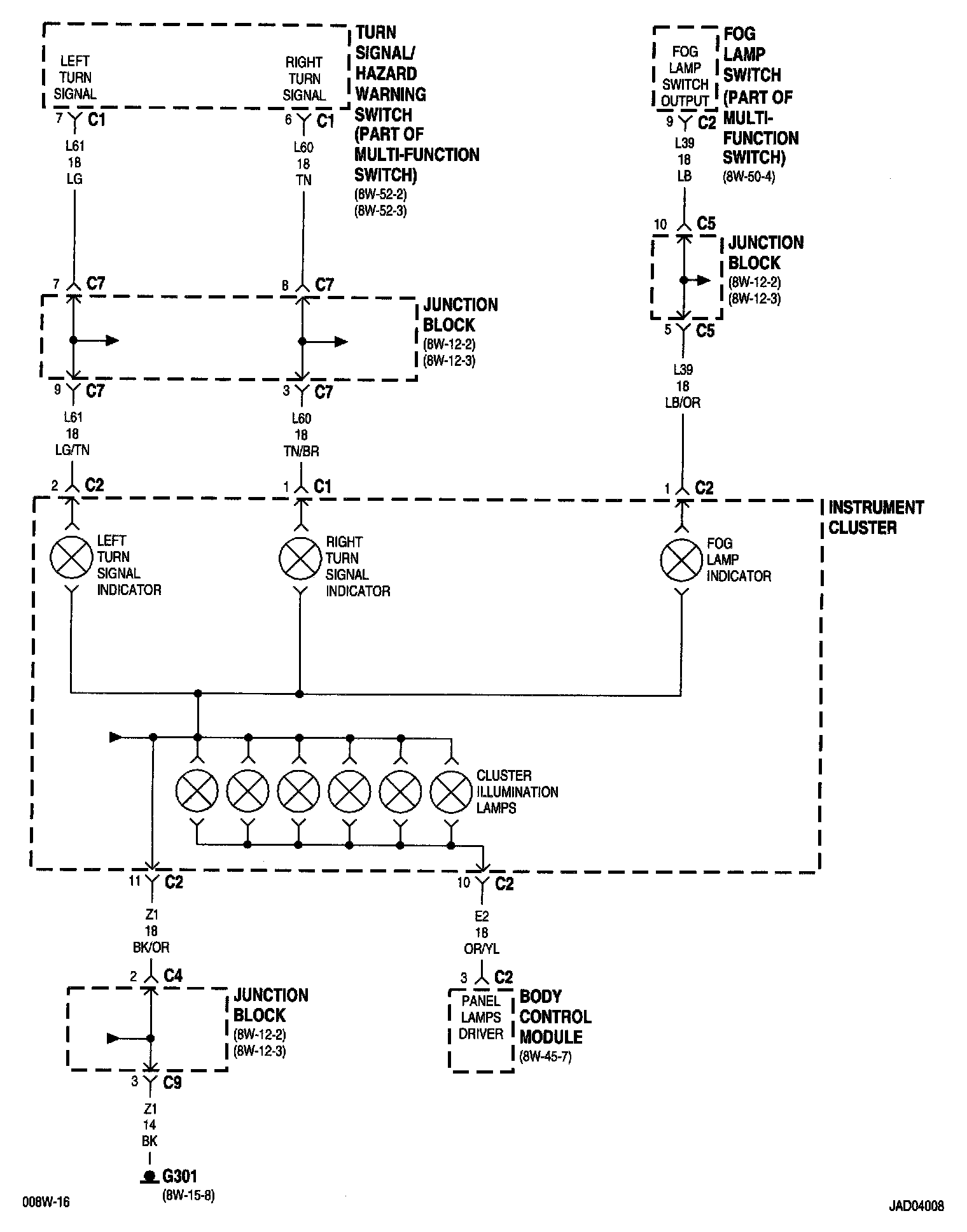

8w-40-8:

Body Control Module
Cluster Illumination Lamps
Fog Lamp Indicator
Fog Lamp Switch
G301
Instrument Cluster
Junction Block
Left Turn Signal Indicator
Right Turn Signal Indicator
Turn Signal/Hazard Warning Switch


NOTE: To view sheets referred to in these diagrams, see Complete Body and Chassis Diagrams.
