Water Pump

REMOVAL
1. Raise vehicle on a hoist. Remove right inner splash shield.
2. Remove accessory drive belts and power steering pump. Refer to Accessory Drive Belt.
3. Drain cooling system. Refer to Cooling System.
4. Support engine from the bottom and remove right engine mount.
5. Remove right engine mount bracket.
6. Remove timing belt, camshaft sprockets, and rear timing belt cover. Refer Engine for procedures.

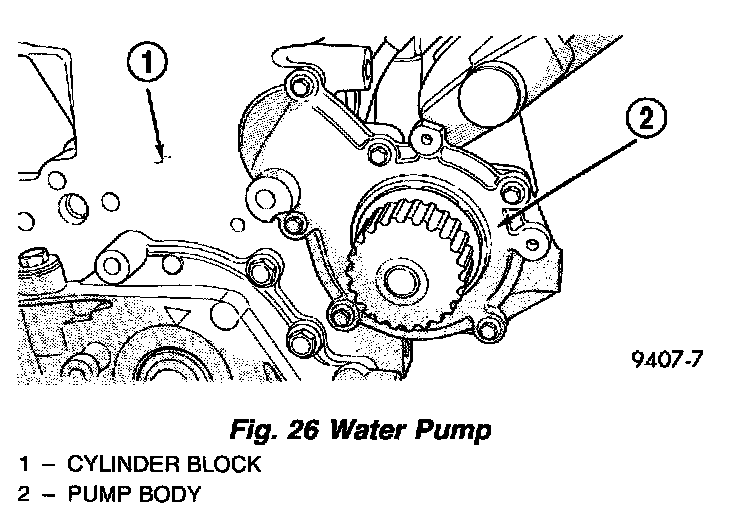

7. Remove water pump attaching screws to engine.

INSTALLATION

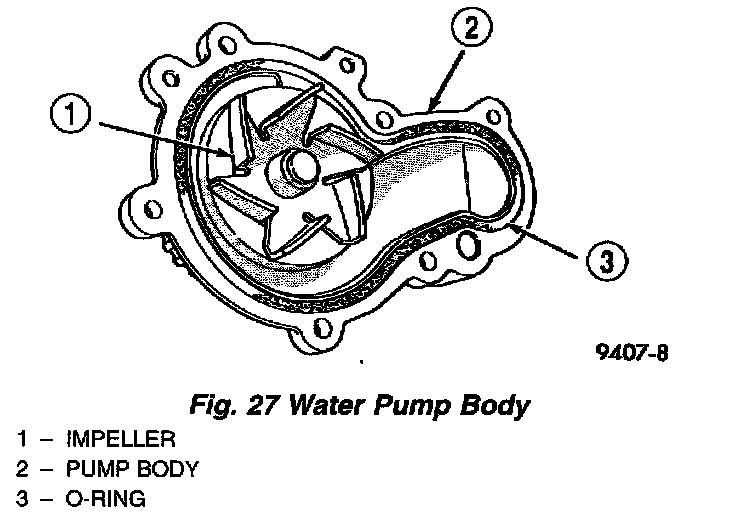

1. Install new O-ring gasket in water pump body O-ring groove .

CAUTION: Make sure O-ring is properly seated in water pump groove before tightening screws. An improperly located O-ring may cause damage to the O-ring and cause a coolant leak

2. Assemble pump body to block and tighten screws to 12 Nm (105 inch lbs.). Pressurize cooling system to 15 psi with pressure tester and check water pump shaft seal and O-ring for leaks.
3. Rotate pump by hand to check for freedom of movement.
4. Install rear timing belt cover, camshaft sprockets, and timing belt. Refer to Engine for procedures.
5. Install right engine mount bracket and engine mount. Refer to Engine for procedure.
6. Fill cooling system. Refer to Cooling System.
7. Install power steering pump and accessory drive belts.
