Camshaft End Play

1. Oil camshaft journals and remove rocker arm assemblies. Cam sensor installed and fastener tighten to specified torque.
2. Using a suitable tool, move camshaft as far rearward as it will go.

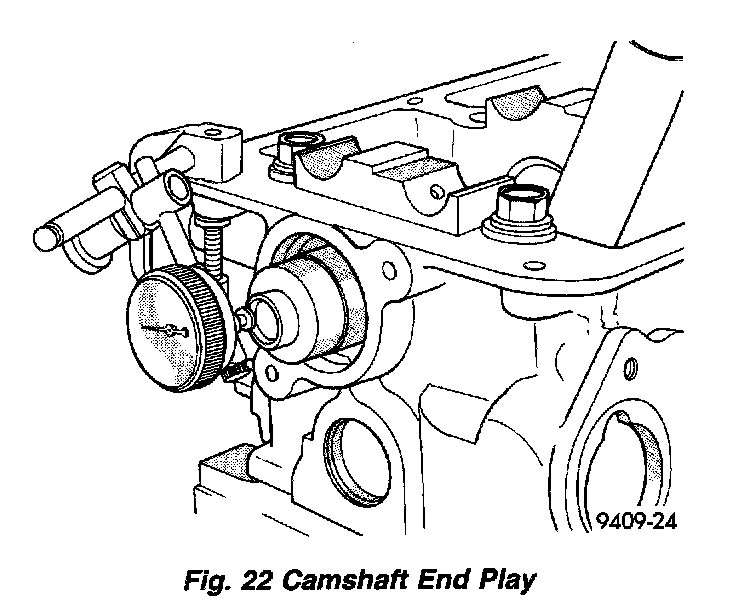

Fig. 22

3. Zero dial indicator (Fig. 22).
4. Move camshaft as far forward as it will go.
5. Refer to Engine; Specification, for camshaft end play specifications.
