Front and Rear Mounts

REMOVAL
FRONT MOUNT
1. Raise vehicle on hoist.

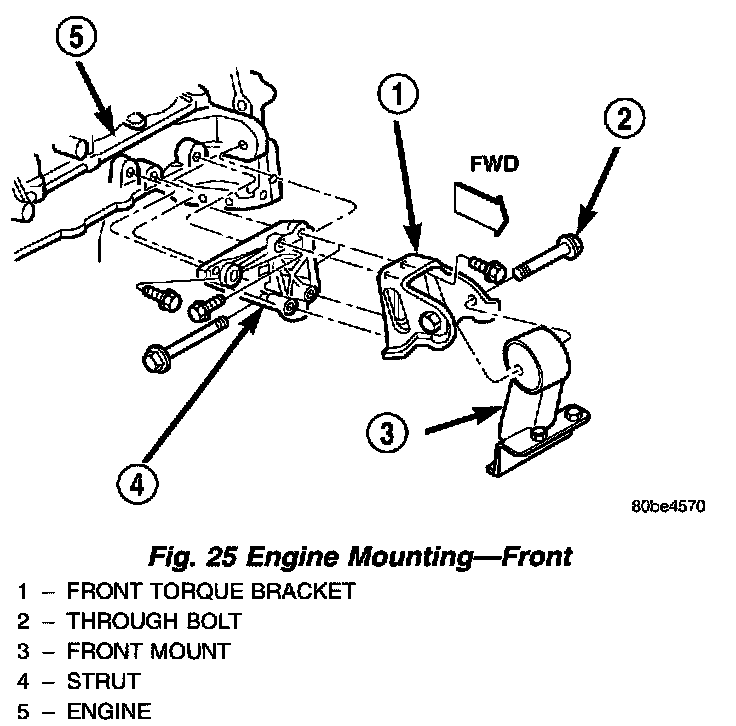

Fig. 25

2. Remove through bolt at front mount (Fig. 25).
3. Remove attaching bolts from mount to lower radiator support.
NOTE: It may be necessary to tilt engine for front mount removal clearance.
4. Remove front mount.

REAR MOUNT
1. Raise vehicle on hoist.

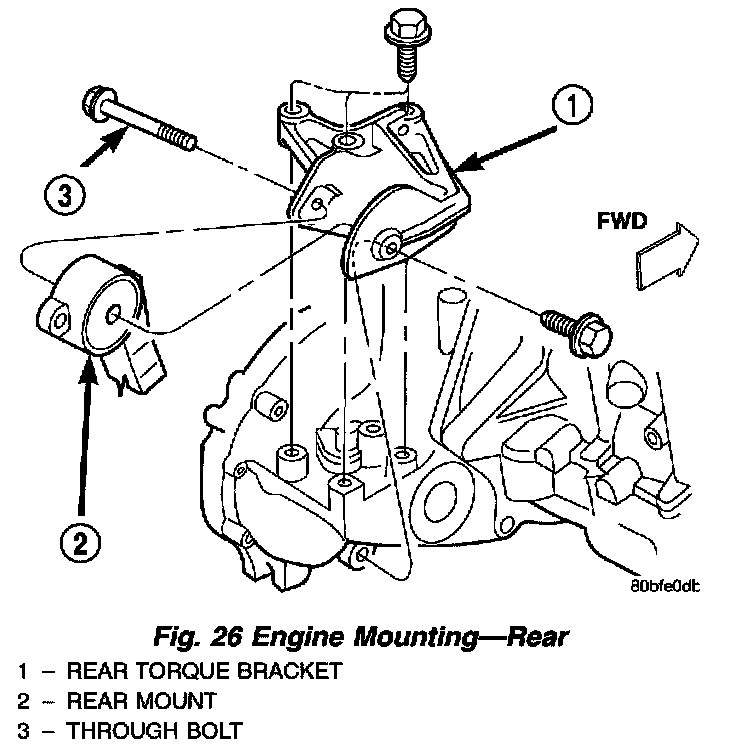

Fig. 26

2. Remove through bolt from rear engine mount and bracket (Fig. 26).

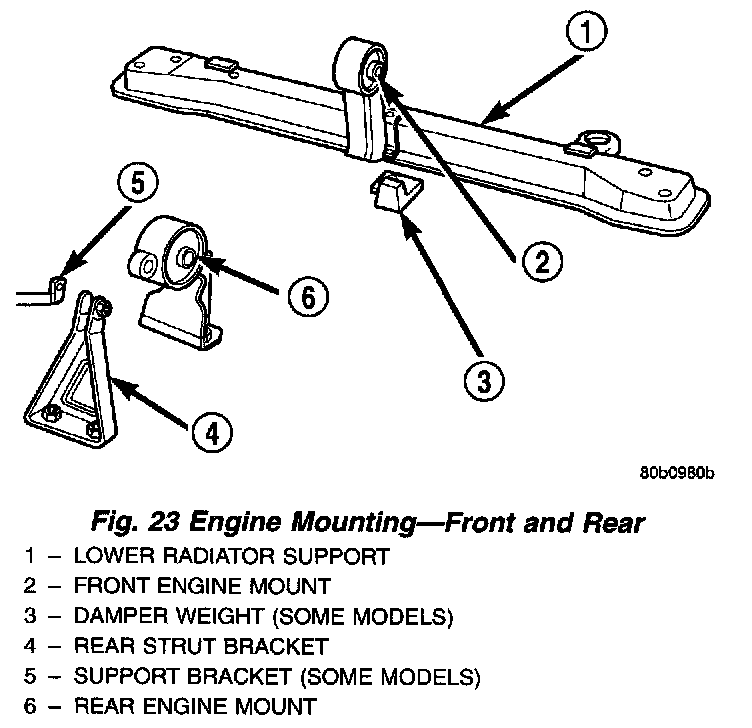

Fig. 23

3. Remove rear strut bracket and support bracket (Fig. 23).

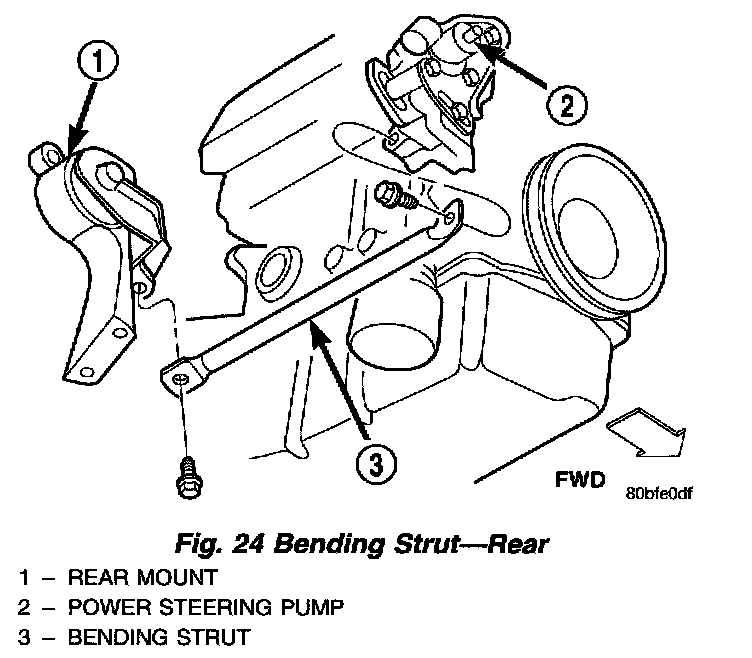

Fig. 24

4. Remove bending strut from rear mount to engine (Fig. 24).
5. Remove bolts attaching rear mount to suspension crossmember.

NOTE: It may be necessary to tilt engine for rear mount removal clearance.

6. Remove rear mount.

INSTALLATION
FRONT MOUNT
1. Position front mount. Position damper weight (some models) and install front mount to lower radiator support attaching bolts. Tighten bolts to 61 Nm (45 ft. lbs.).
2. Install through bolt and tighten to 61 Nm (45 ft. lbs.).
3. Lower vehicle.

REAR MOUNT
1. Position rear mount.
2. Install bolts attaching rear mount to front suspension crossmember. Tighten bolts to 61 Nm (45 ft. lbs.).
3. Install rear strut and support brackets. Tighten bolts to the following torque values:
- Bolts attaching strut bracket to front suspension crossmember: 61 Nm (45 ft. lbs.)
- Nut attaching support bracket to front suspension crossmember: 108 Nm (80 ft. lbs.)
- Bolt attaching support bracket to rear strut: 61 Nm (45 ft. lbs.)
4. Install through bolt and tighten to 61 Nm (45 ft. lbs.).
5. Lower vehicle.
