Description

DESCRIPTION

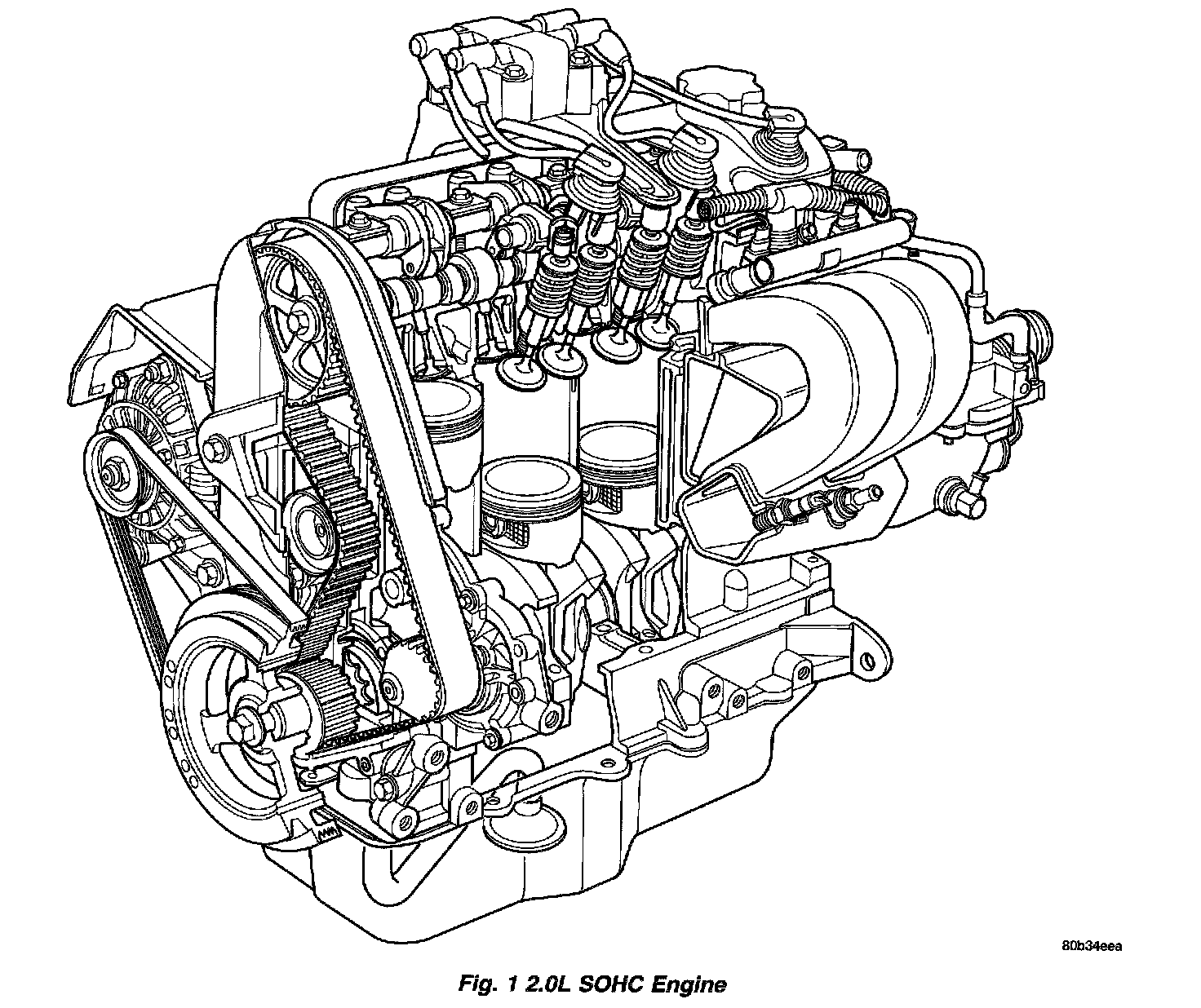

Fig. 1

The 2.0 Liter (122 cu. inch) in-line four cylinder engine is a single over head camshaft with hydraulic lifters and four valves per cylinder design (Fig. 1). The engine does not have provisions for a free wheeling valve train.
The cylinders are numbered from front of the engine to the rear. The firing order is 1-3-2.

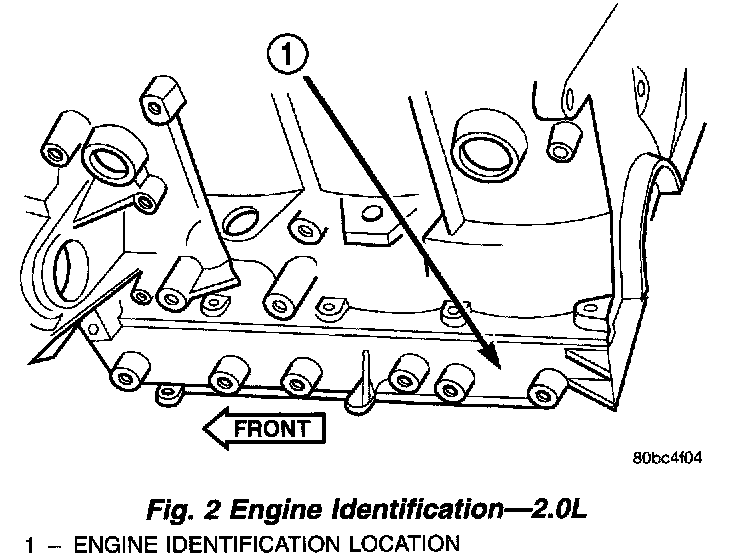

Fig. 2

The engine identification number is stamped onto a machined pad located on the left rear of the cylinder block bedplate (Fig. 2).
