Standard

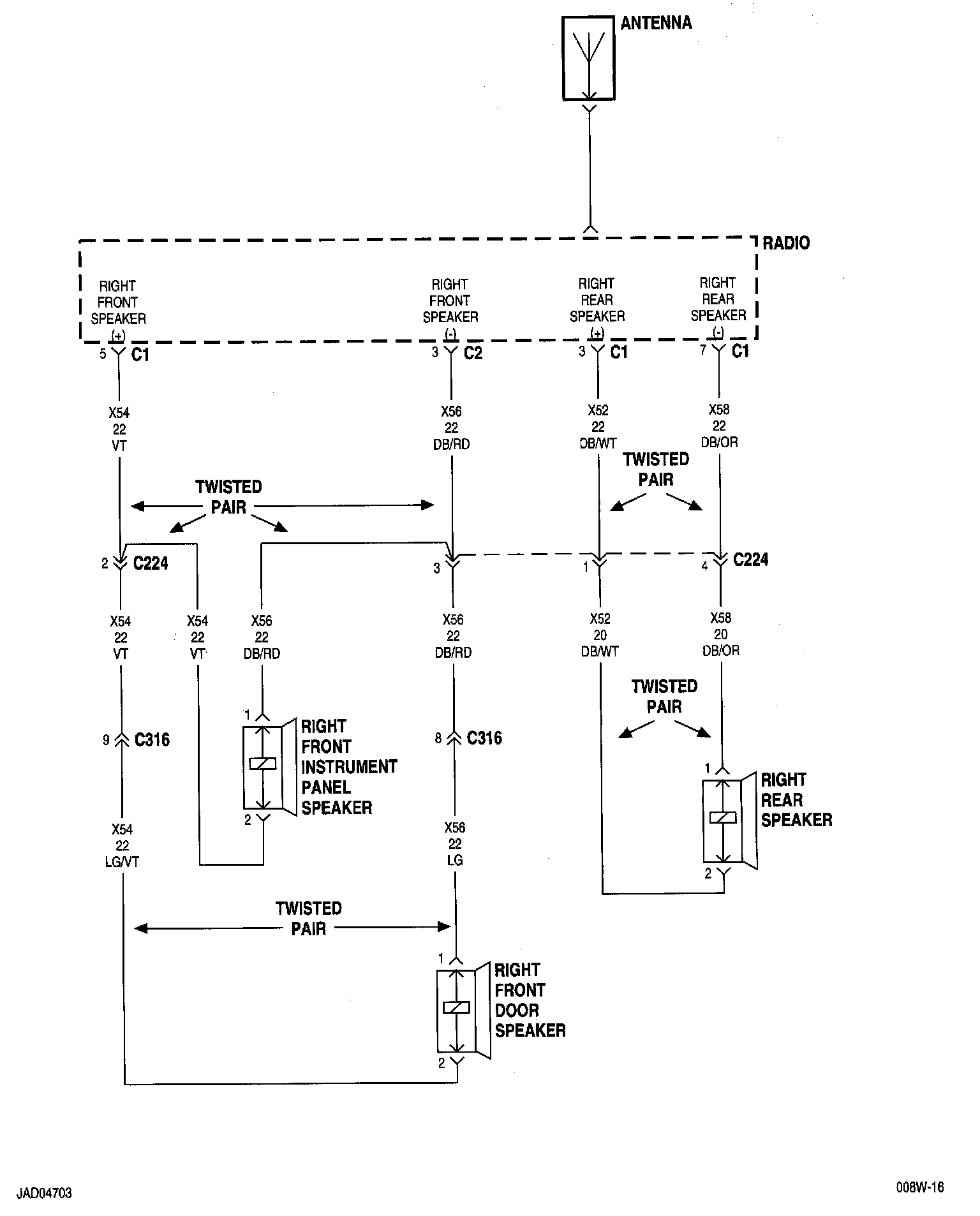

8w-47-2 (Standard):

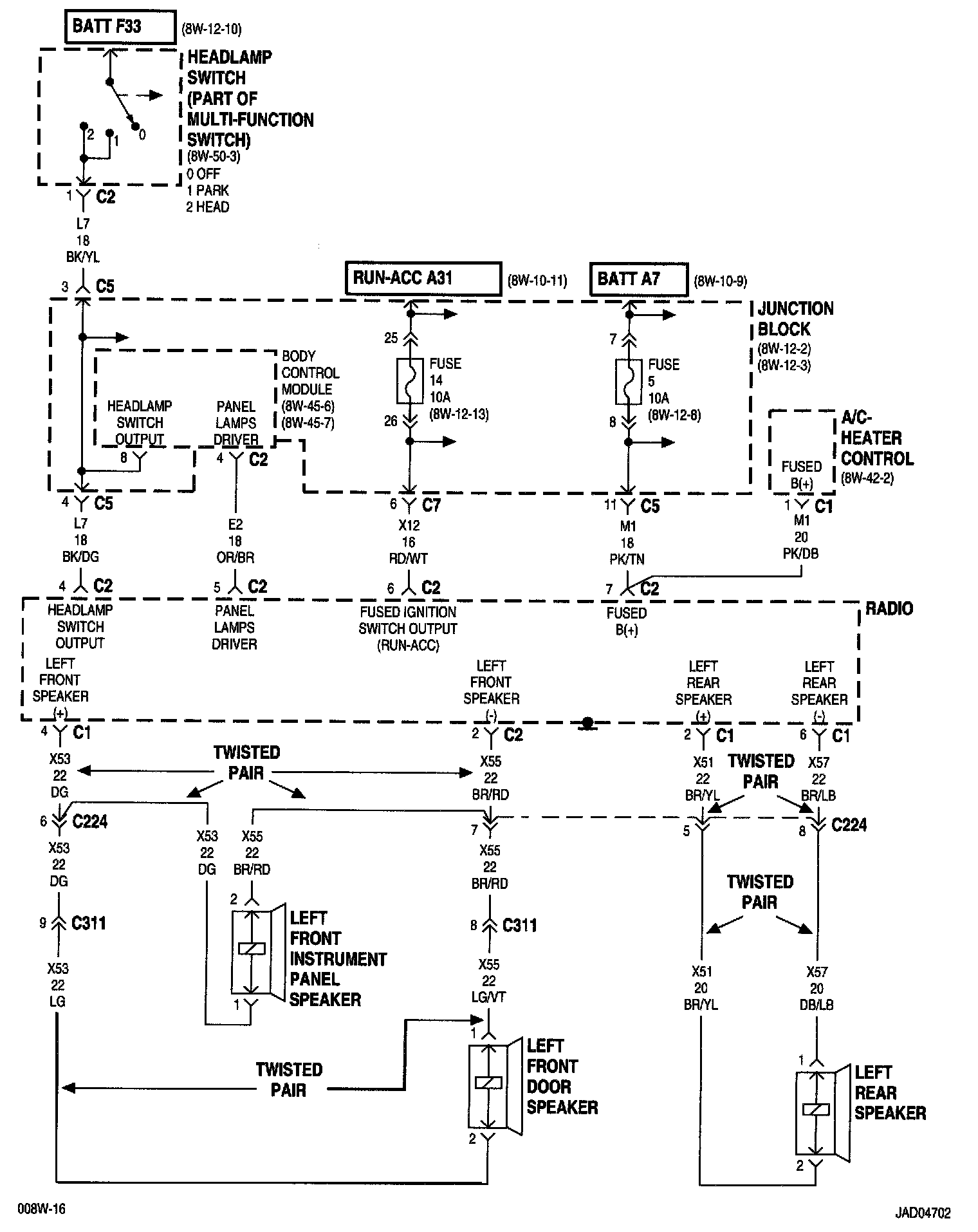

8w-47-3 (Standard):






NOTE: To view sheets referred to in these diagrams, see Complete Body and Chassis Diagrams.
