System Diagrams

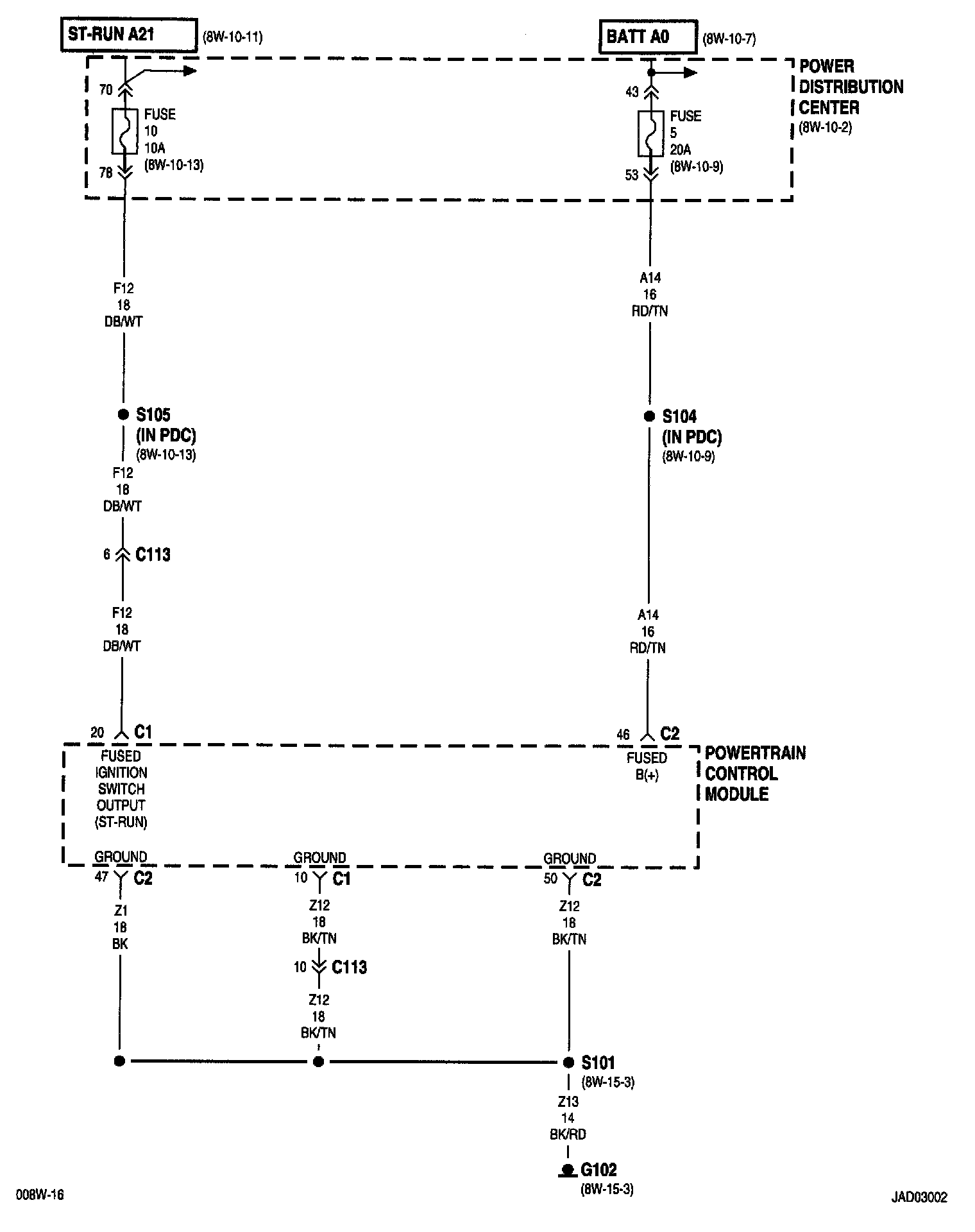

8w-30-2:
Fuse 5 (PDC)
Fuse 10 (PDC)
G102
Power Distribution Center
Powertrain Control Module

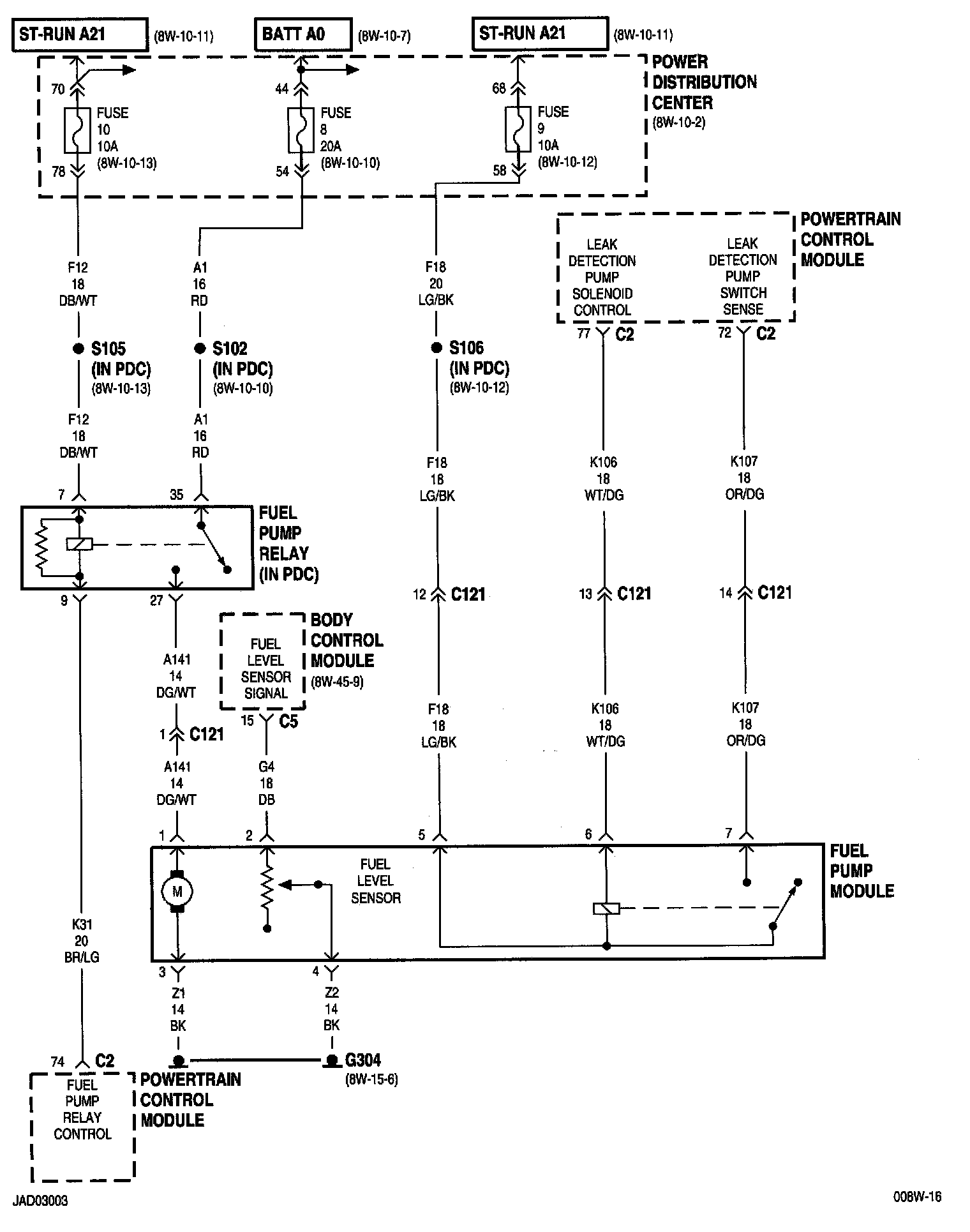

8w-30-3:
Body Control Module
Fuel Pump Module
Fuel Pump Relay
Fuse 8 (PDC)
Fuse 9 (PDC)
Fuse 10 (PDC)
G304
Power Distribution Center
Powertrain Control Module

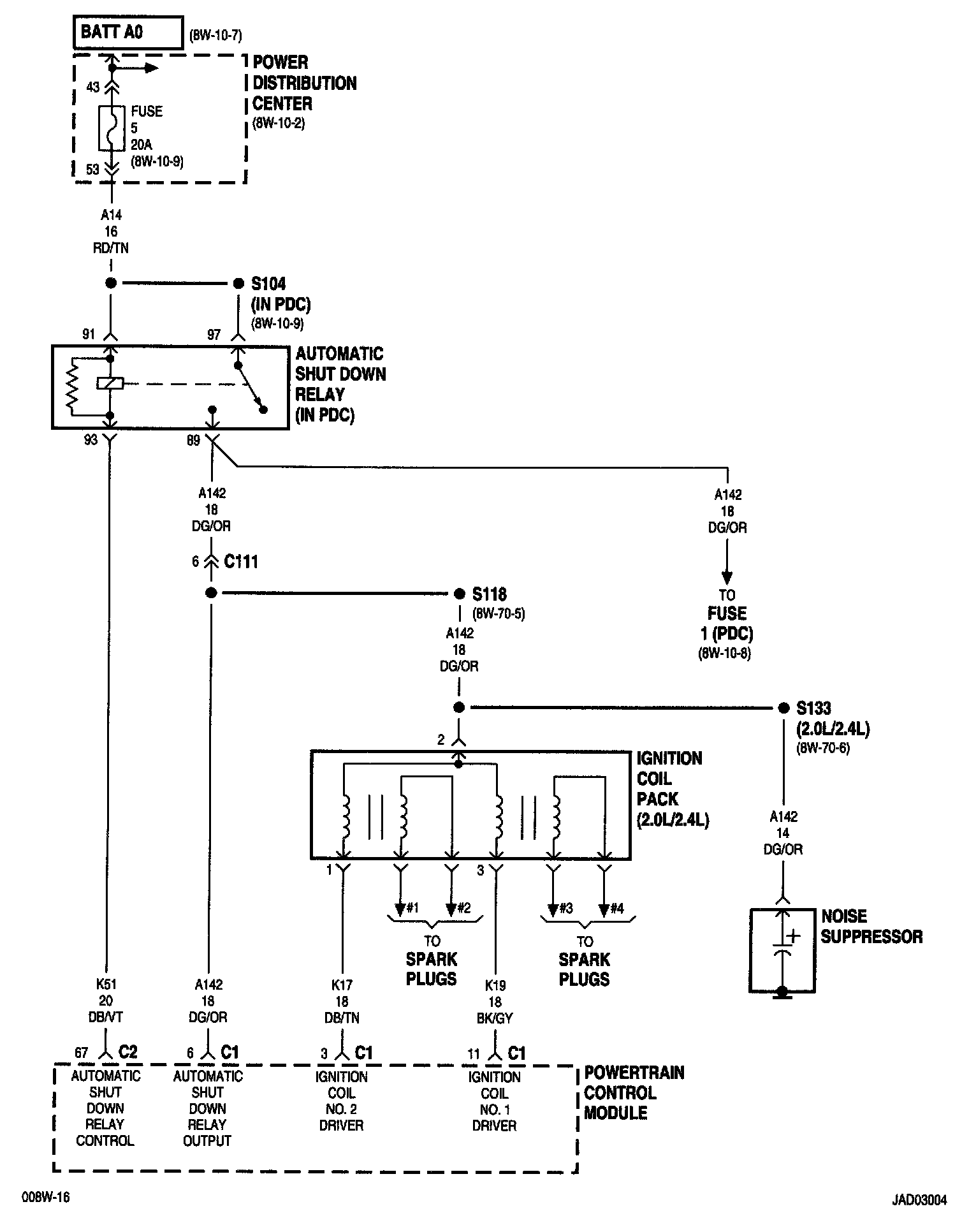

8w-30-4:
Automatic Shut Down Relay
Fuse 1 (PDC)
Fuse 5 (PDC)
Ignition Coil Pack
Noise Suppressor
Power Distribution Center
Powertrain Control Module

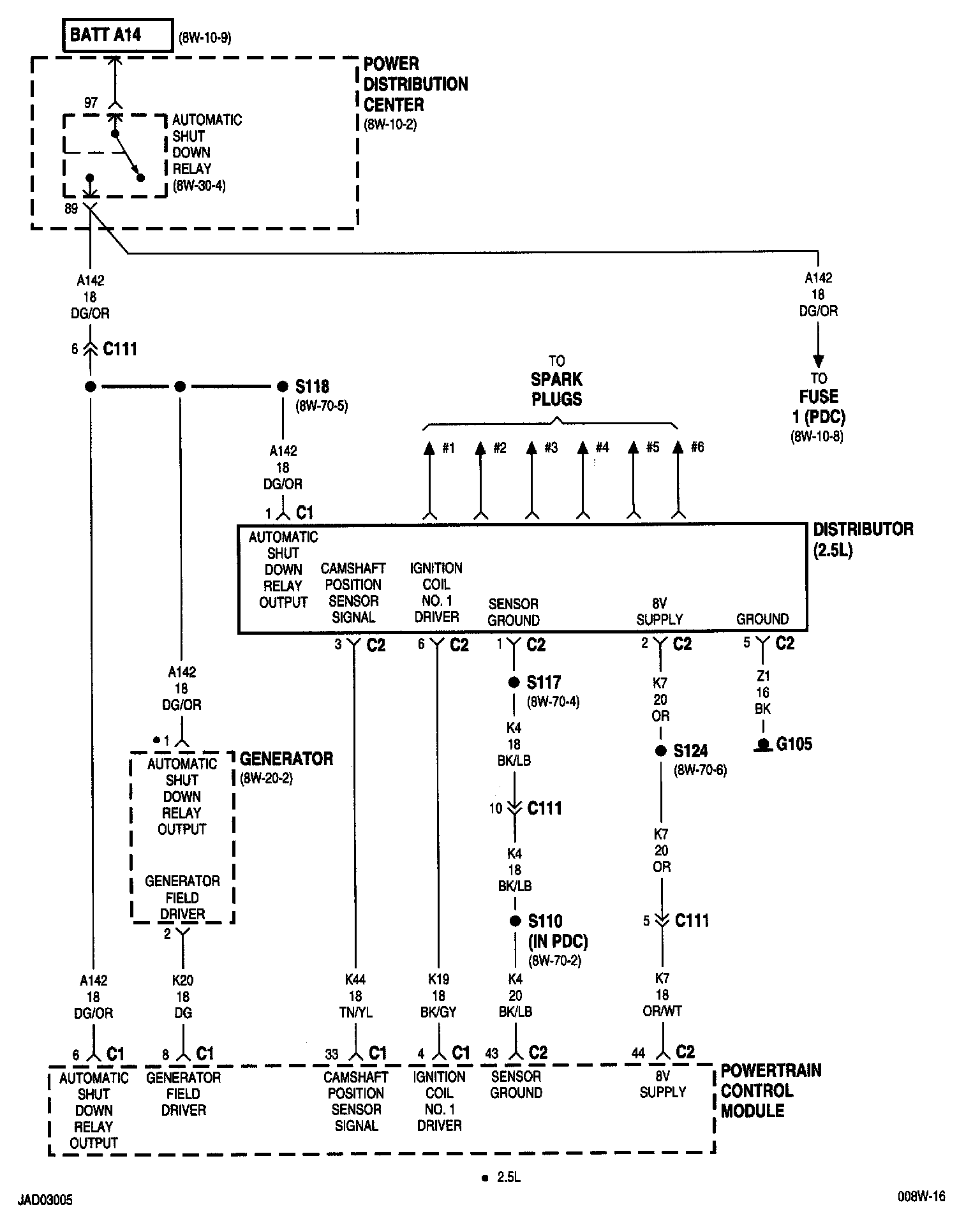

8w-30-5:
Automatic Shut Down Relay
Distributor
Fuse 1 (PDC)
Generator
Power Distribution Center
Powertrain Control Module

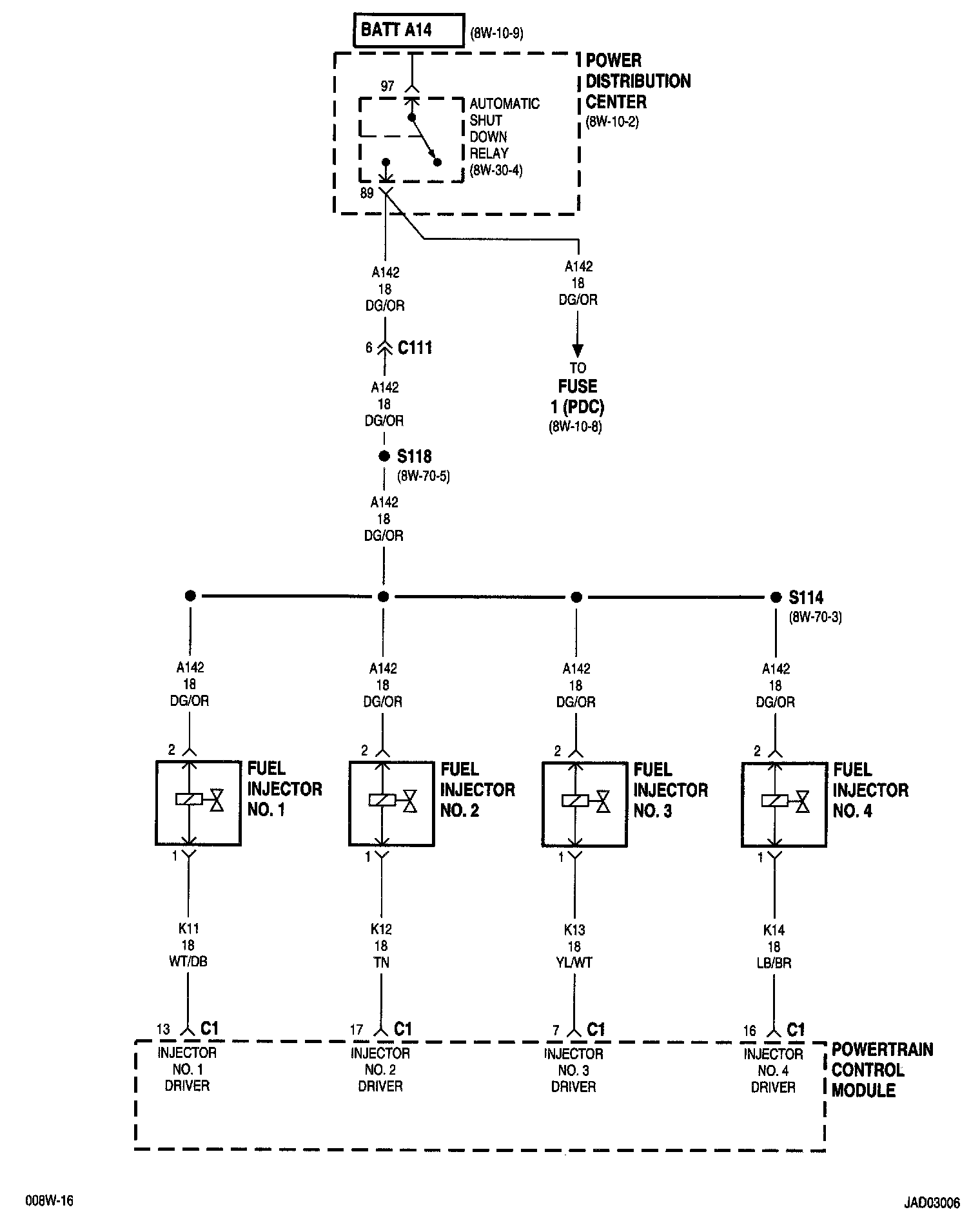

8w-30-6:
Automatic Shut Down Relay
Fuel Injector No. 1
Fuel Injector No. 2
Fuel Injector No. 3
Fuel Injector No. 4
Fuse 1 (PDC)
Power Distribution Center
Powertrain Control Module

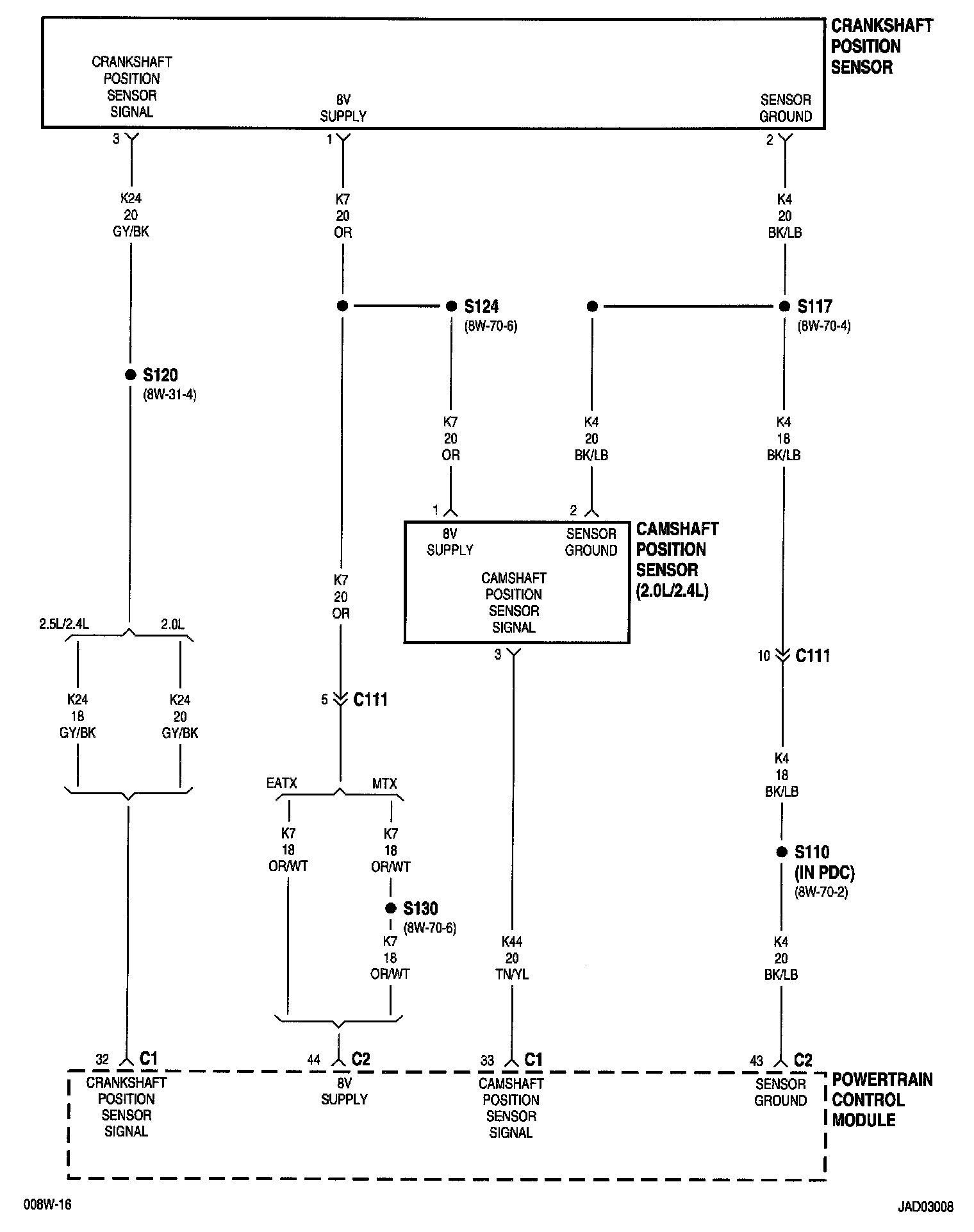

8w-30-8:
Camshaft Position Sensor
Crankshaft Position Sensor
Powertrain Control Module

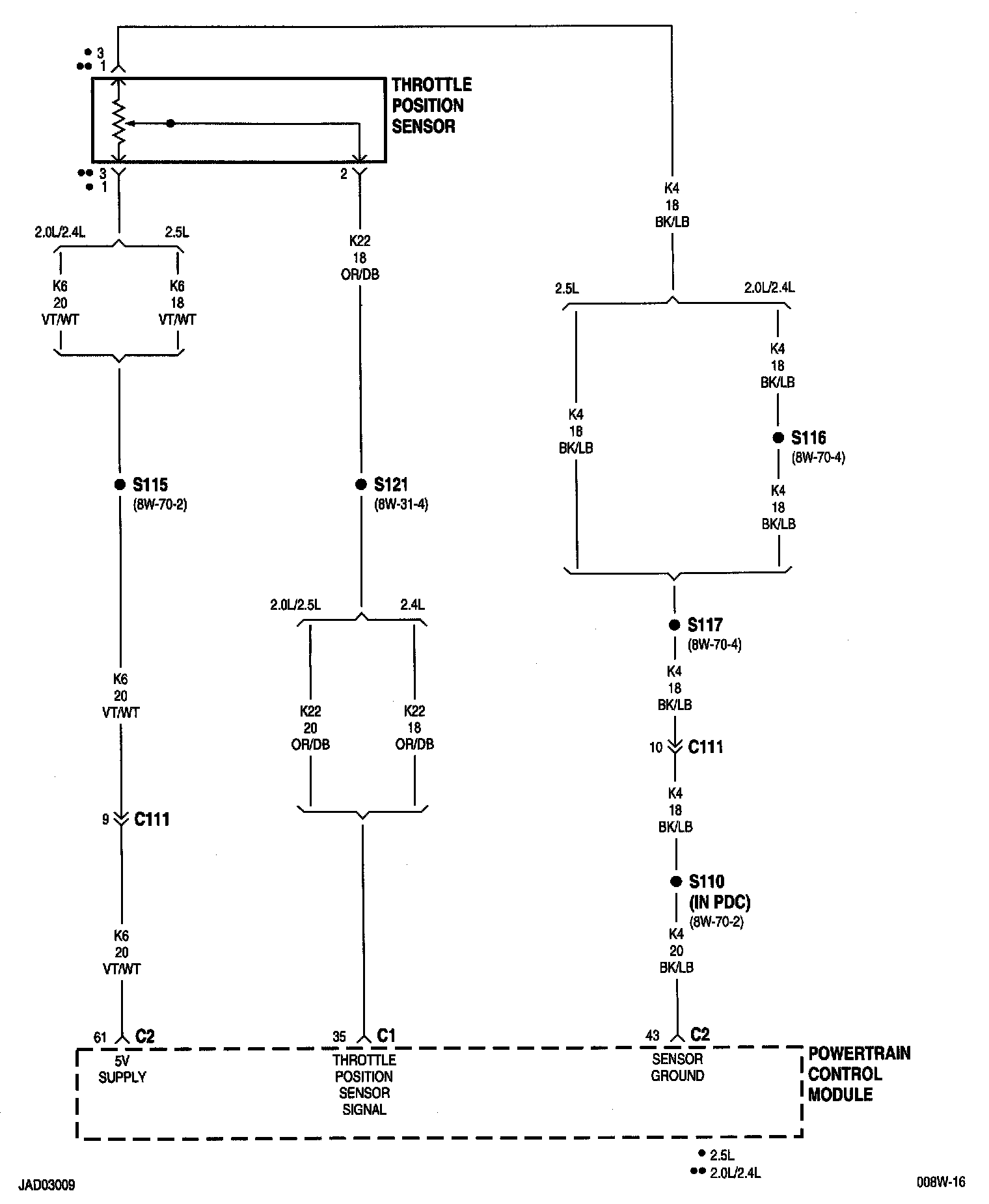

8w-30-9:
Powertrain Control Module
Throttle Position Sensor

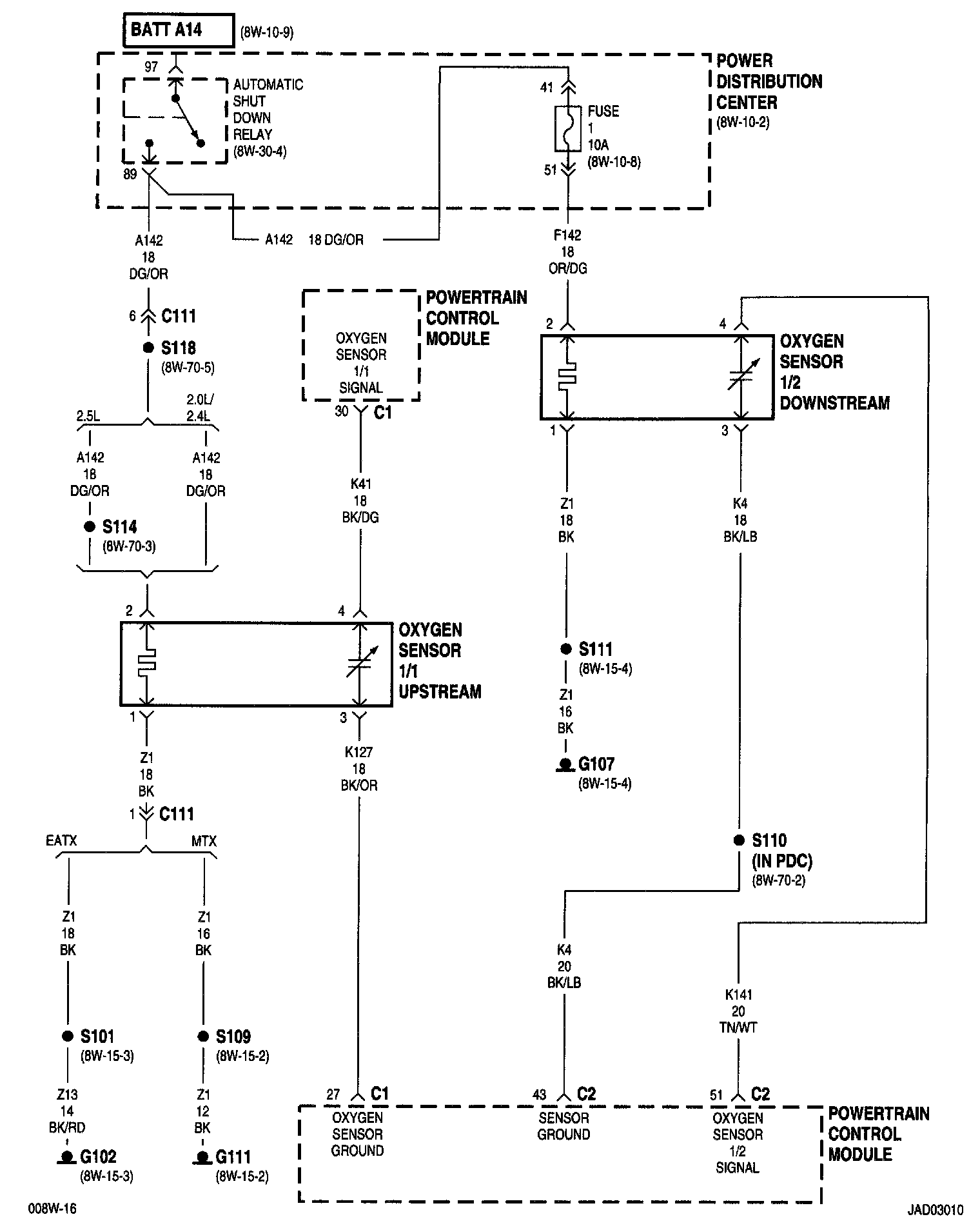

8w-30-10:
Automatic Shut Down Relay
Fuse 1 (PDC)
G102
G111
Oxygen Sensor 1/1 Upstream
Oxygen Sensor 1/2 Downstream
Power Distribution Center
Powertrain Control Module
8w-30-11:
EGR Solenoid
Absolute Pressure Sensor

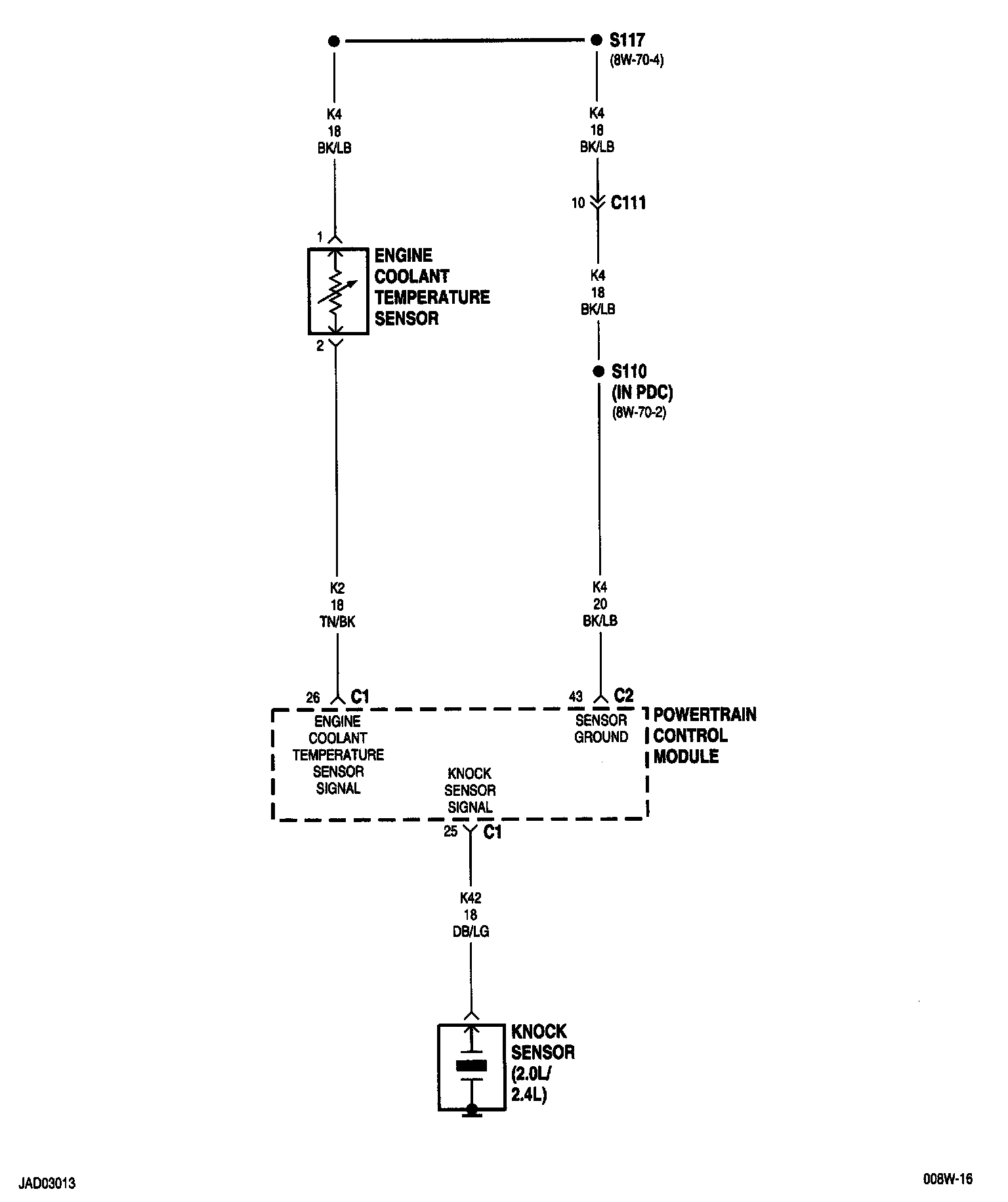

8w-30-13:
Engine Coolant Temperature Sensor
Knock Sensor
Powertrain Control Module
8w-30-14:
Brake Lamp Switch
Brake Shift Interlock Solenoid
Clockspring No. 1
Engine Starter Motor Relay
Power Distribution Center
Powertrain Control Module
Transmission Control Module
Transmission Range Sensor
Vehicle Speed Control Servo
Vehicle Speed Control Switch

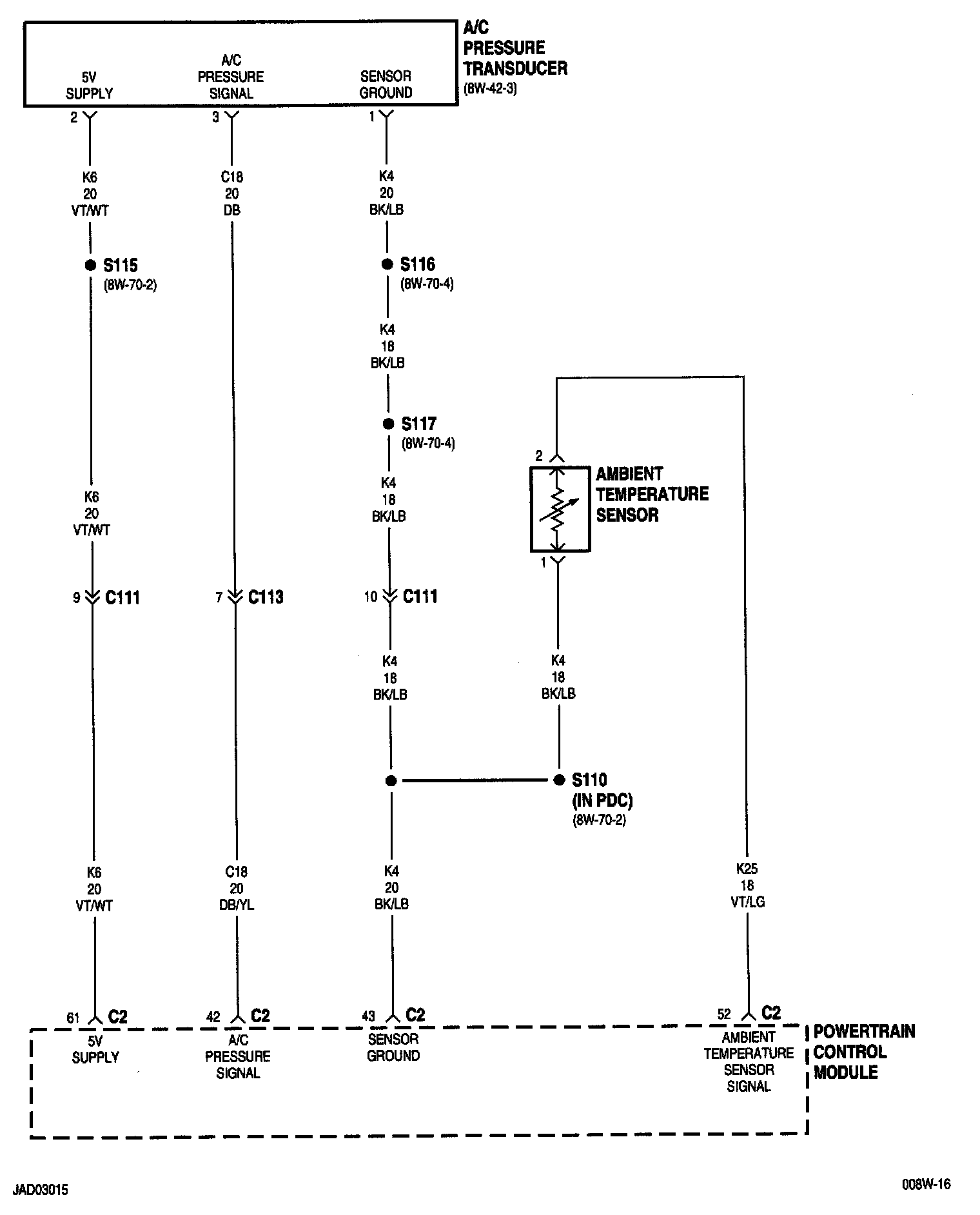

8w-30-15:
A/C Pressure Transducer
Ambient Temperature Sensor
Powertrain Control Module

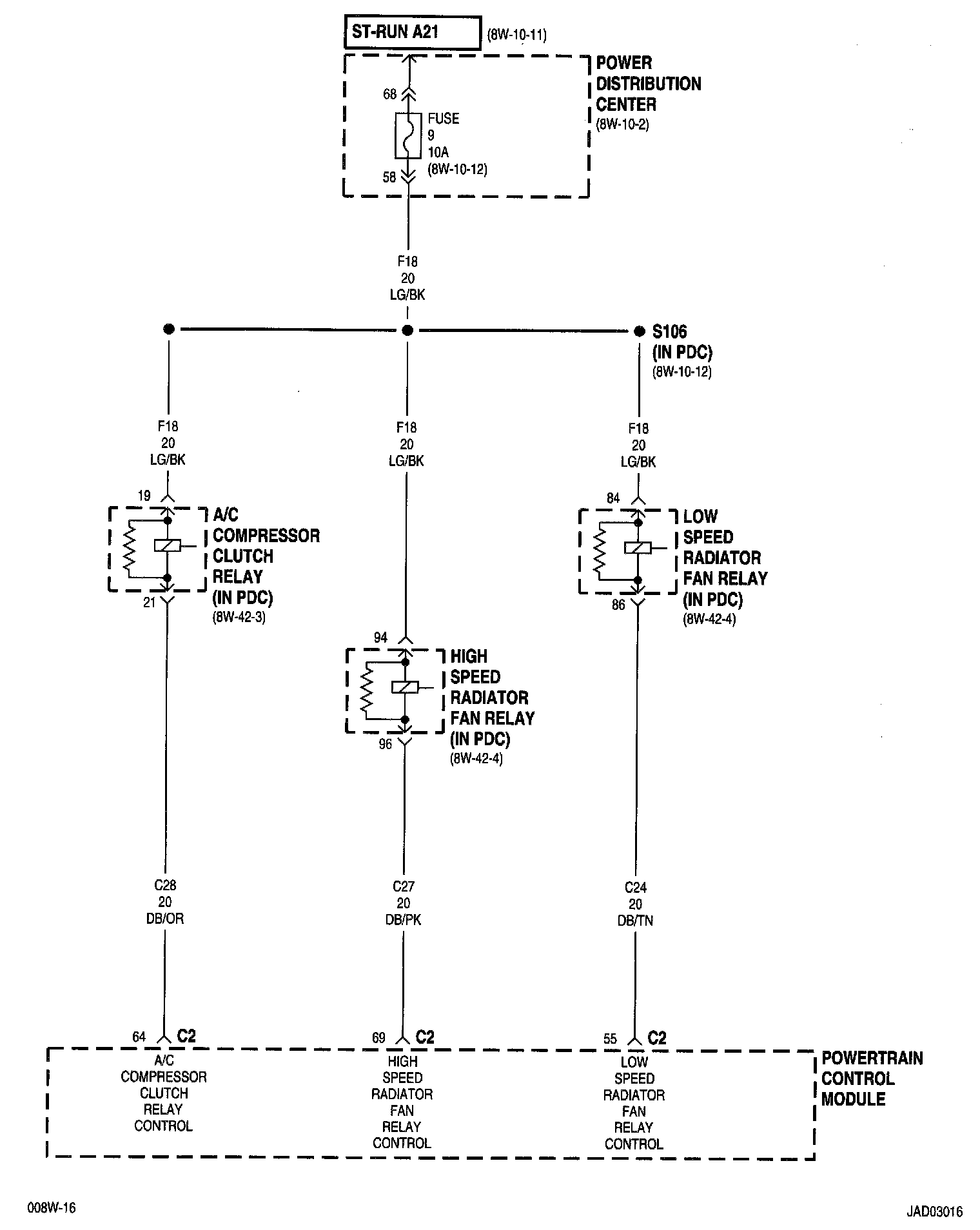

8w-30-16:
A/C Compressor Clutch Relay
Fuse 9 (PDC)
High Speed Radiator Fan Relay
Low Speed Radiator Fan Relay
Powertrain Control Module

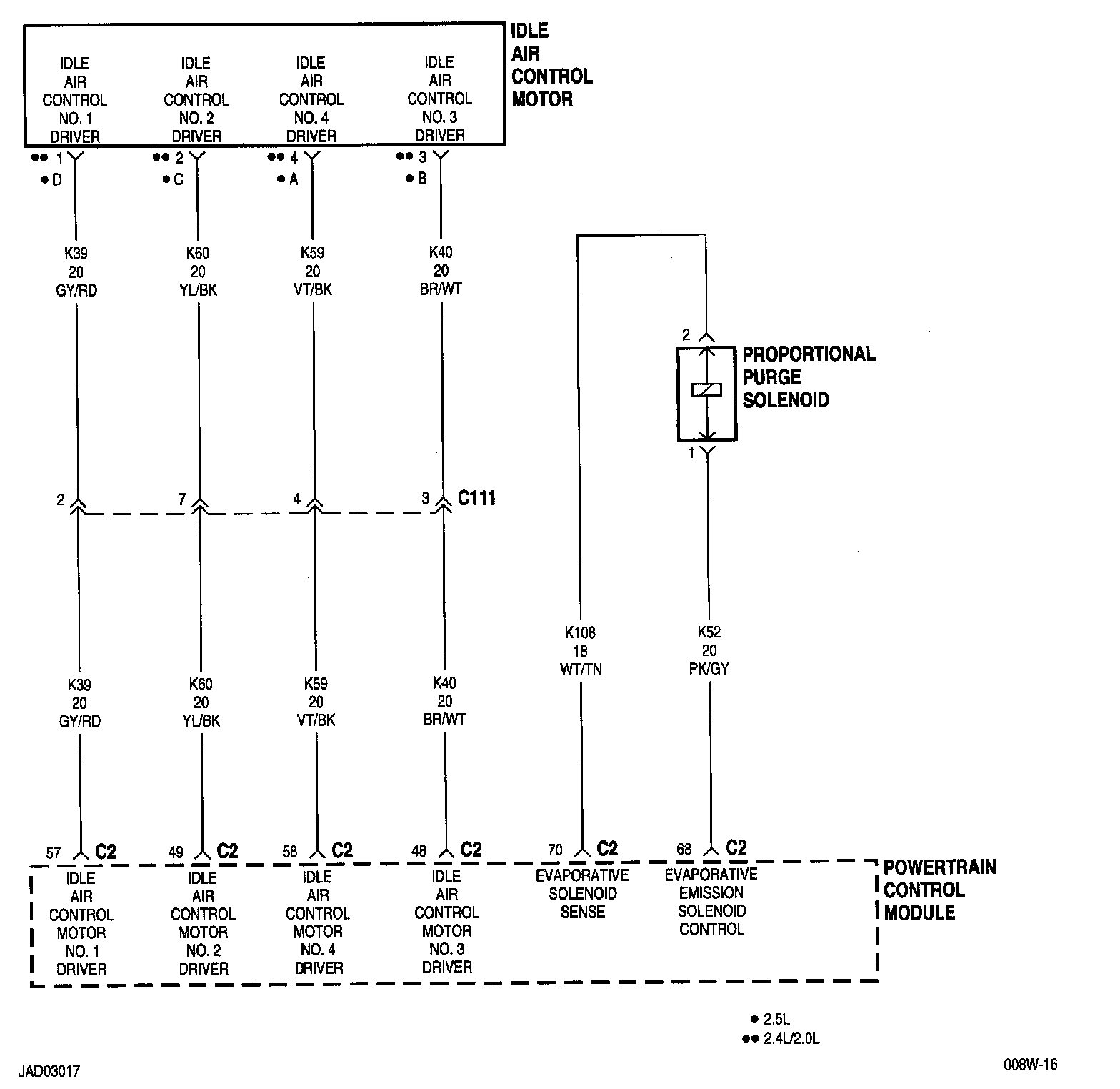

8w-30-17:
Idle Air Control Motor
Powertrain Control Module
Proportional Purge Solenoid
8w-30-18:
Body Control Module
G301
Junction Block
Powertrain Control Module
Transmission Control Module

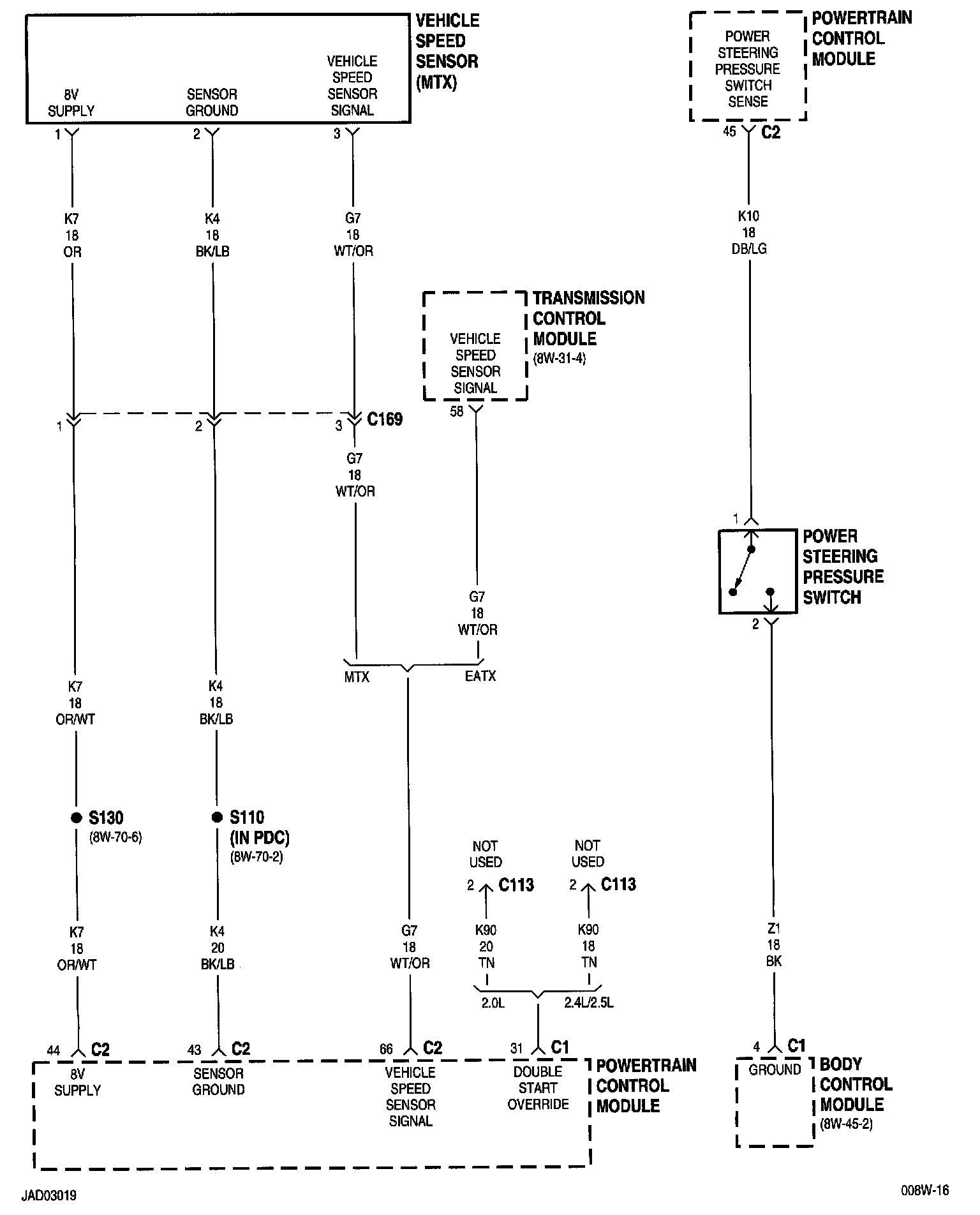

8w-30-19:
Body Control Module
Power Steering Pressure Switch
Powertrain Control Module
Transmission Control Module
Vehicle Speed Sensor
NOTE: To view sheets referred to in these diagrams, see Complete Body and Chassis Diagrams.
