Rear Lighting

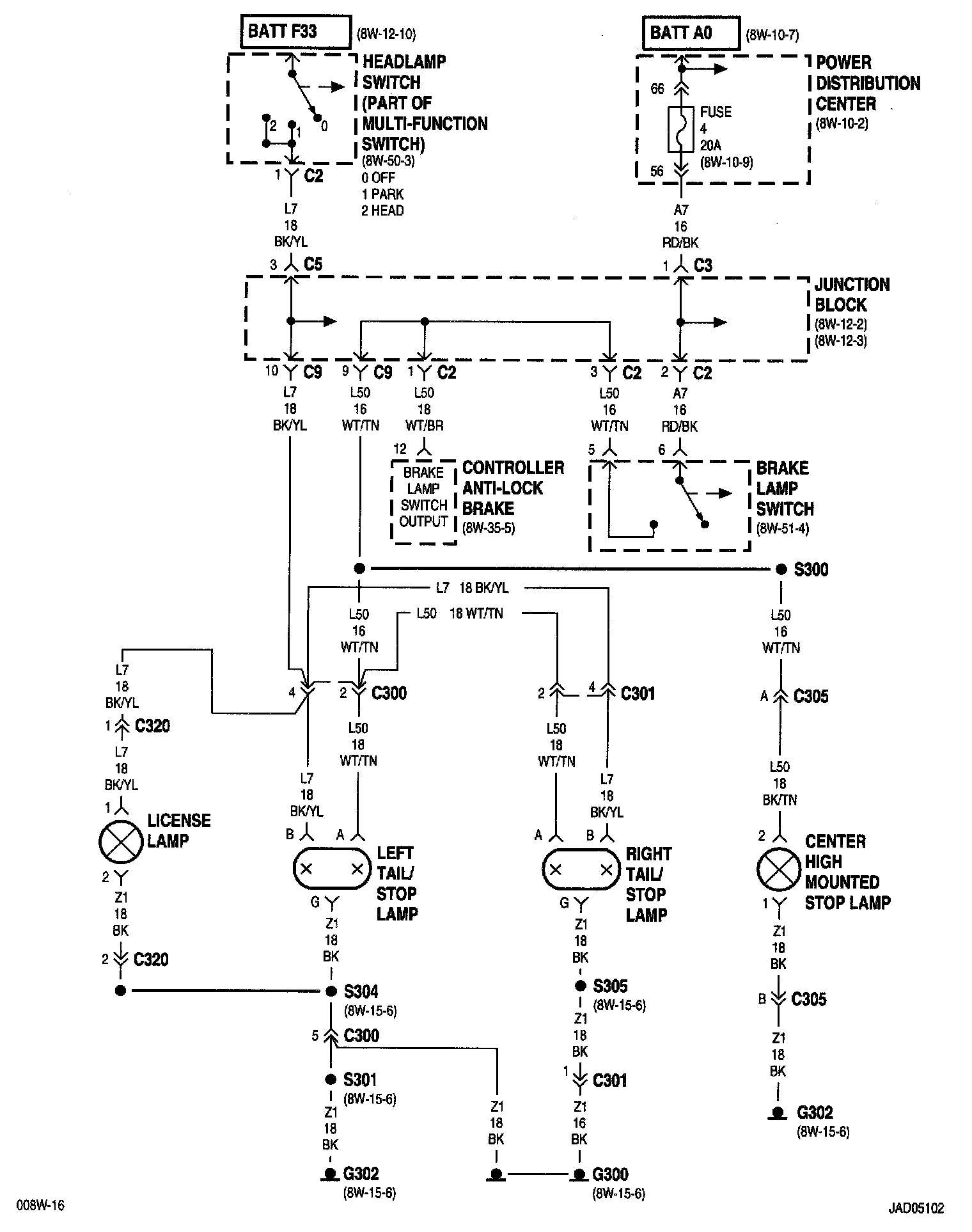

8w-51-2:

Brake Lamp Switch
Center High Mounted Step Lamp
Controller Anti-Lock Brake
Fuse 4 (PDC)
G300
G302
Headlamp Switch
Junction Block
Left Tail/Stop Lamp
License Lamp
Power Distribution Center
Right Tail/Stop Lamp

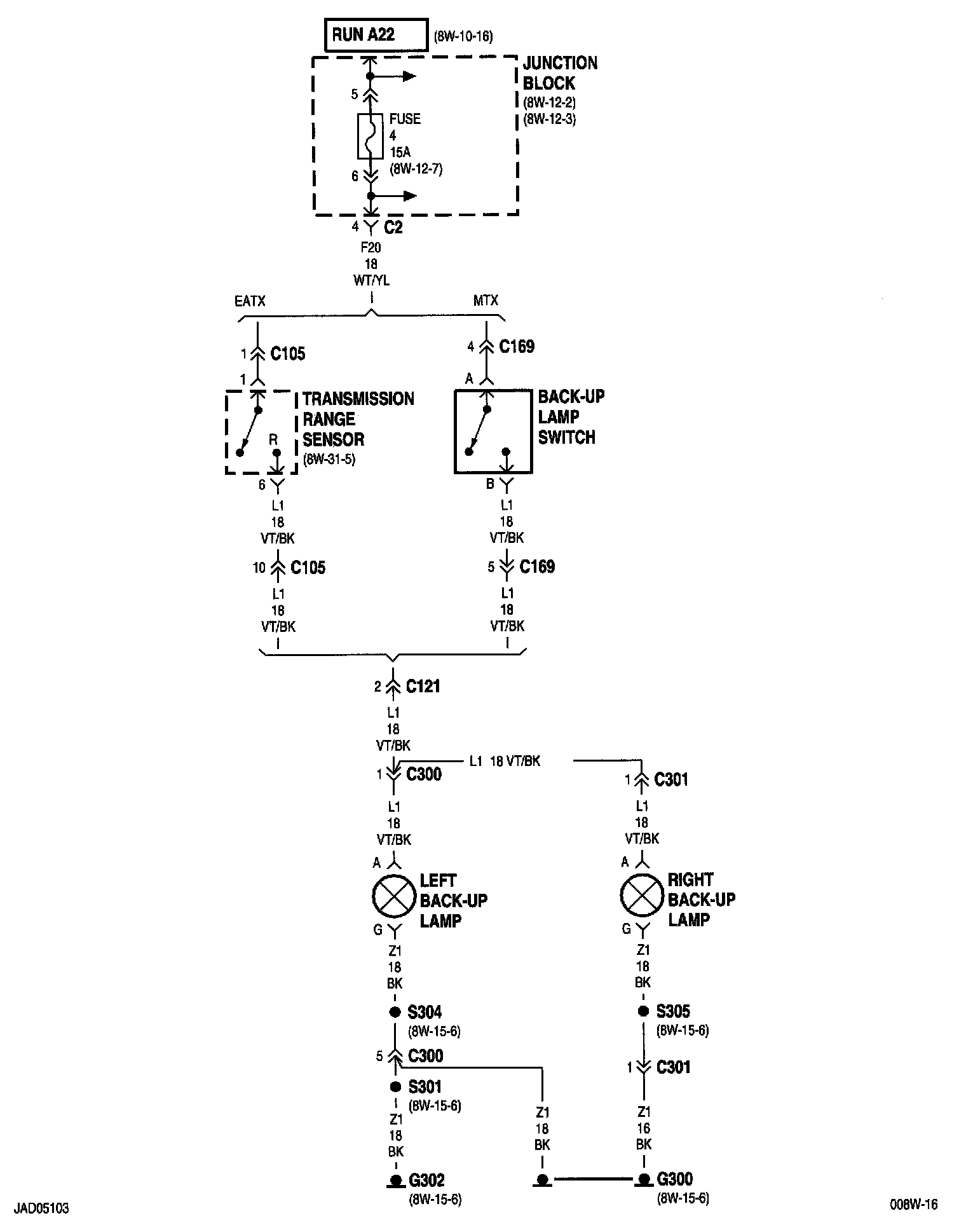

8w-51-3:

Back-Up Lamp Switch
Fuse 4 (JB)
G300
G302
Junction Block
Left Back-Up Lamp
Right Back-Up Lamp
Transmission Range Sensor

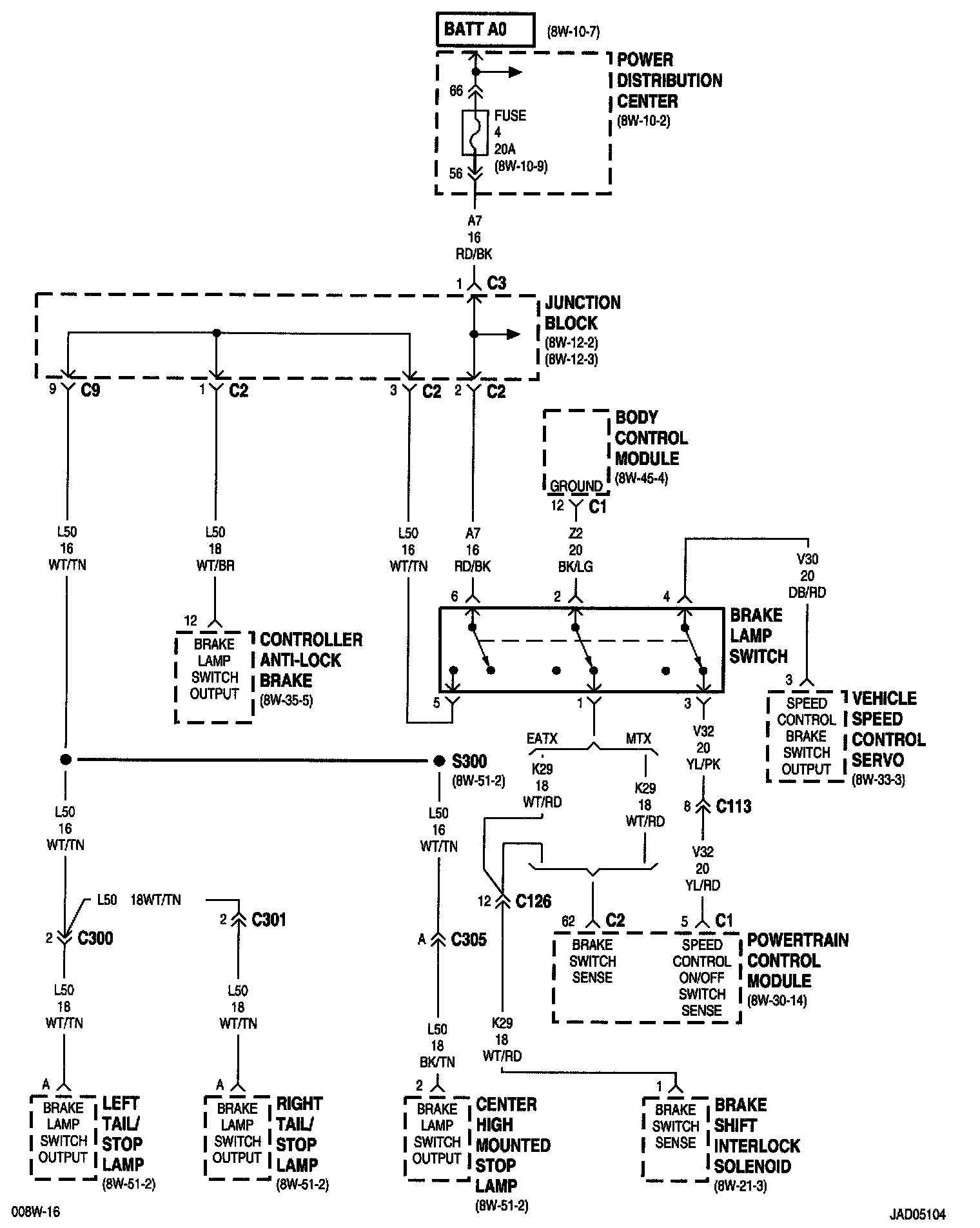

8w-51-4:

Body Control Module
Brake Lamp Switch
Brake Shift Interlock Solenoid
Center High Mounted Step Lamp
Controller Anti-Lock Brake
Fuse 4 (PDC)
Junction Block
Left Tail/Stop Lamp
Power Distribution Center
Powertrain Control Module
Right Tail/Stop Lamp
Vehicle Speed Control Servo


NOTE: To view sheets referred to in these diagrams, see Complete Body and Chassis Diagrams.
Electrical Diagrams
