Front Lighting

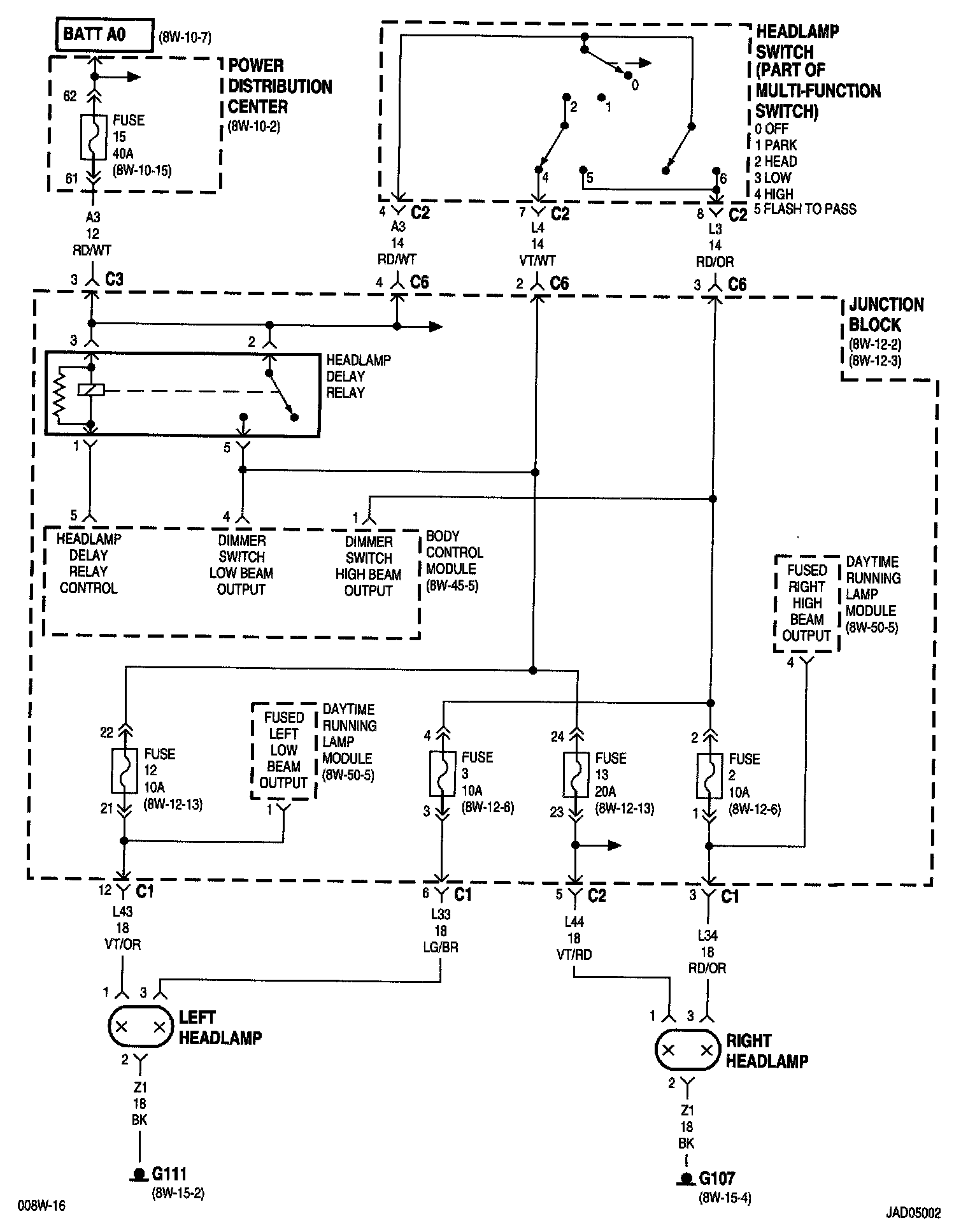

8w-50-2:

Body Control Module
Daytime Running Lamp Module
Fuse 2 (JB)
Fuse 3 (JB)
Fuse 12 (JB)
Fuse 13 (JB)
Fuse 15 (PDC)
G107
G111
Headlamp Delay Relay
Headlamp Switch
Junction Block
Left Headlamp
Power Distribution Center
Right Headlamp

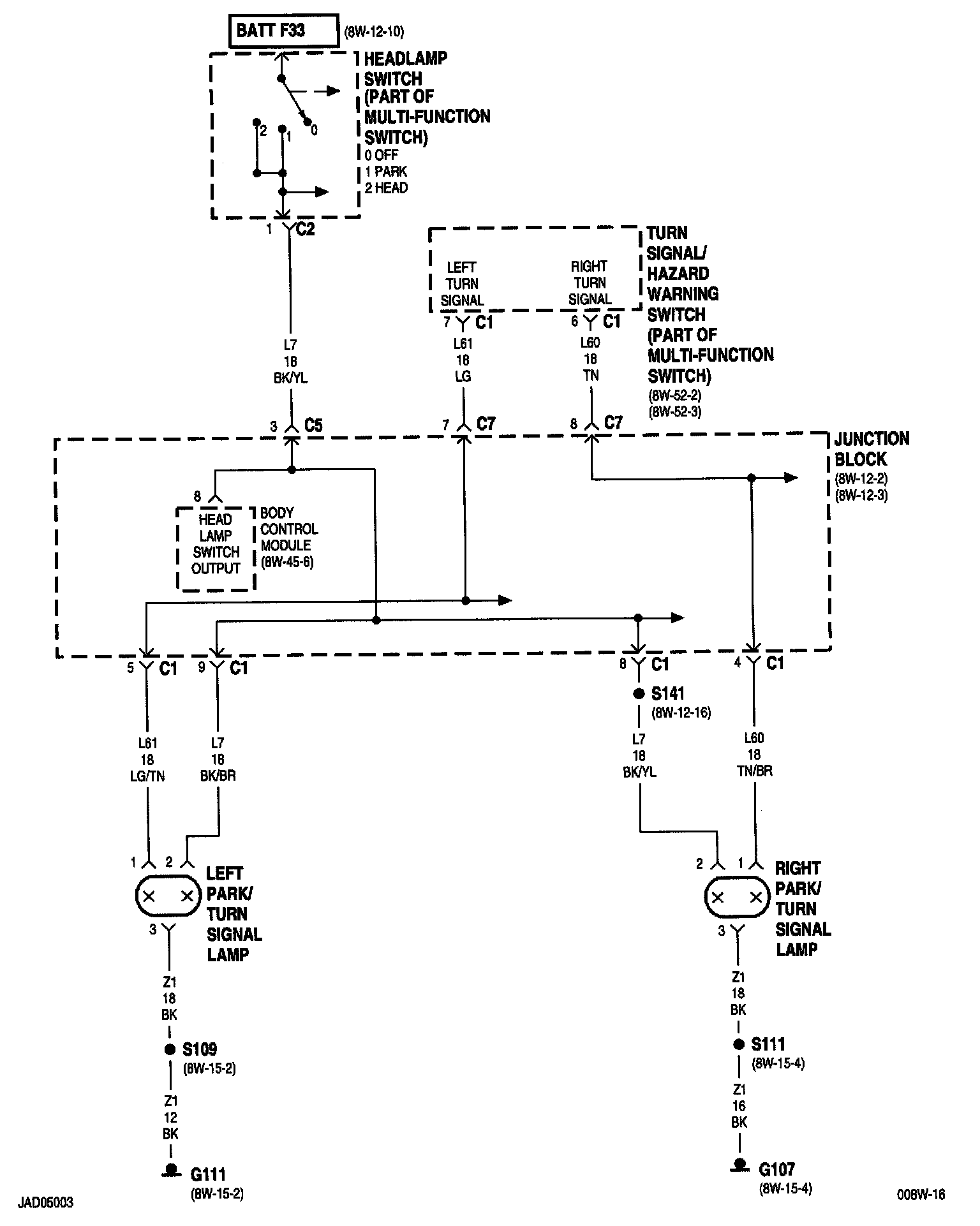

8w-50-3:

Body Control Module
G107
G111
Headlamp Switch
Junction Block
Left Park/Turn Signal Lamp
Right Park/Turn Signal Lamp
Turn Signal/Hazard Warning Switch

8w-50-4:

Body Control Module
Fog Lamp Switch
Fuse 13 (JB)
G107
G111
G301
Headlamp Switch
Instrument Cluster
Junction Block
Left Fog Lamp
Right Fog Lamp

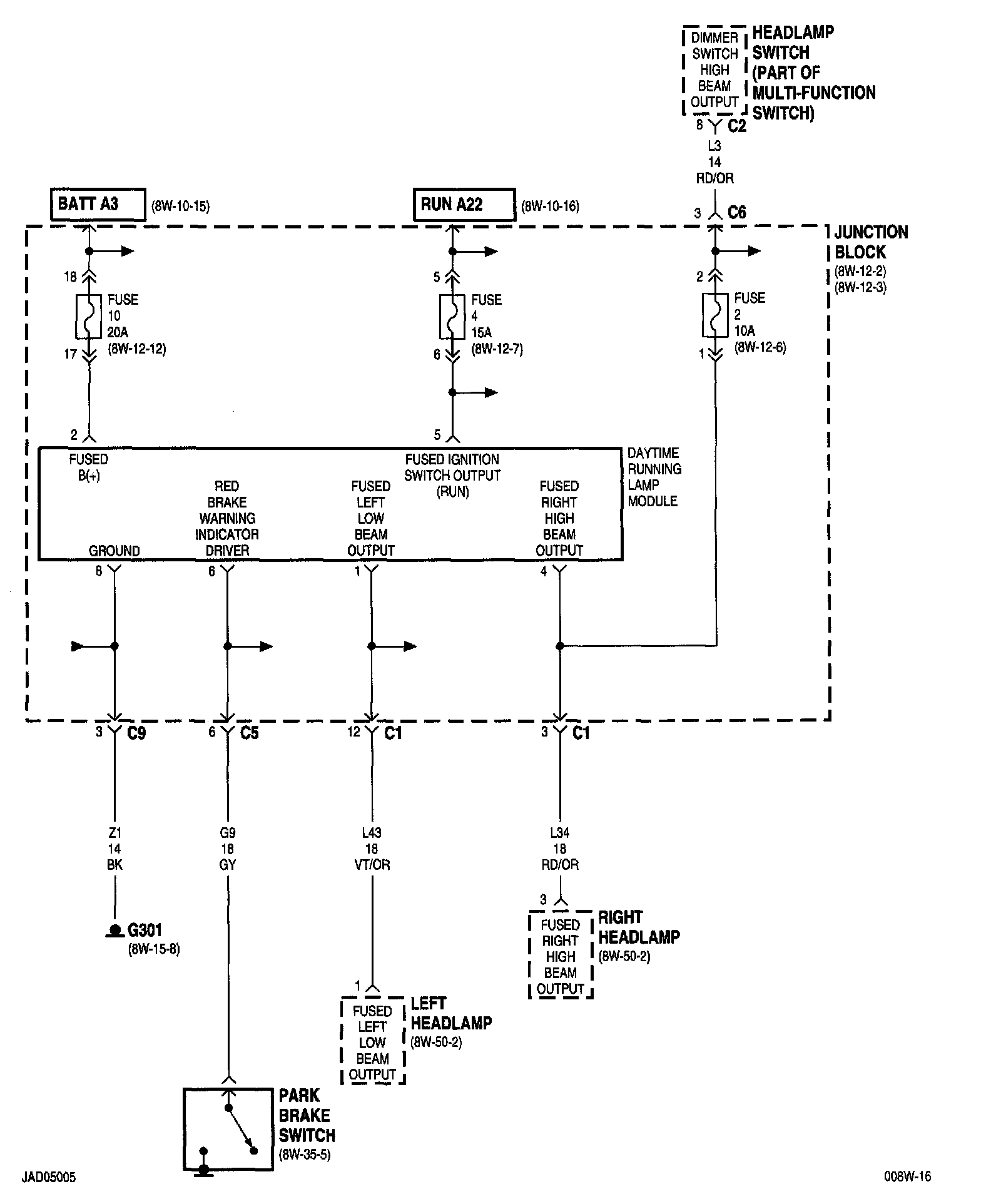

8w-50-5 (DRL):

Daytime Running Lamp Module
Fuse 2 (JB)
Fuse 4 (JB)
Fuse 10 (JB)
G301
Headlamp Switch
Junction Block
Left Headlamp
Park Brake Switch
Right Headlamp


NOTE: To view sheets referred to in these diagrams, see Complete Body and Chassis Diagrams.
