Wiring Diagrams

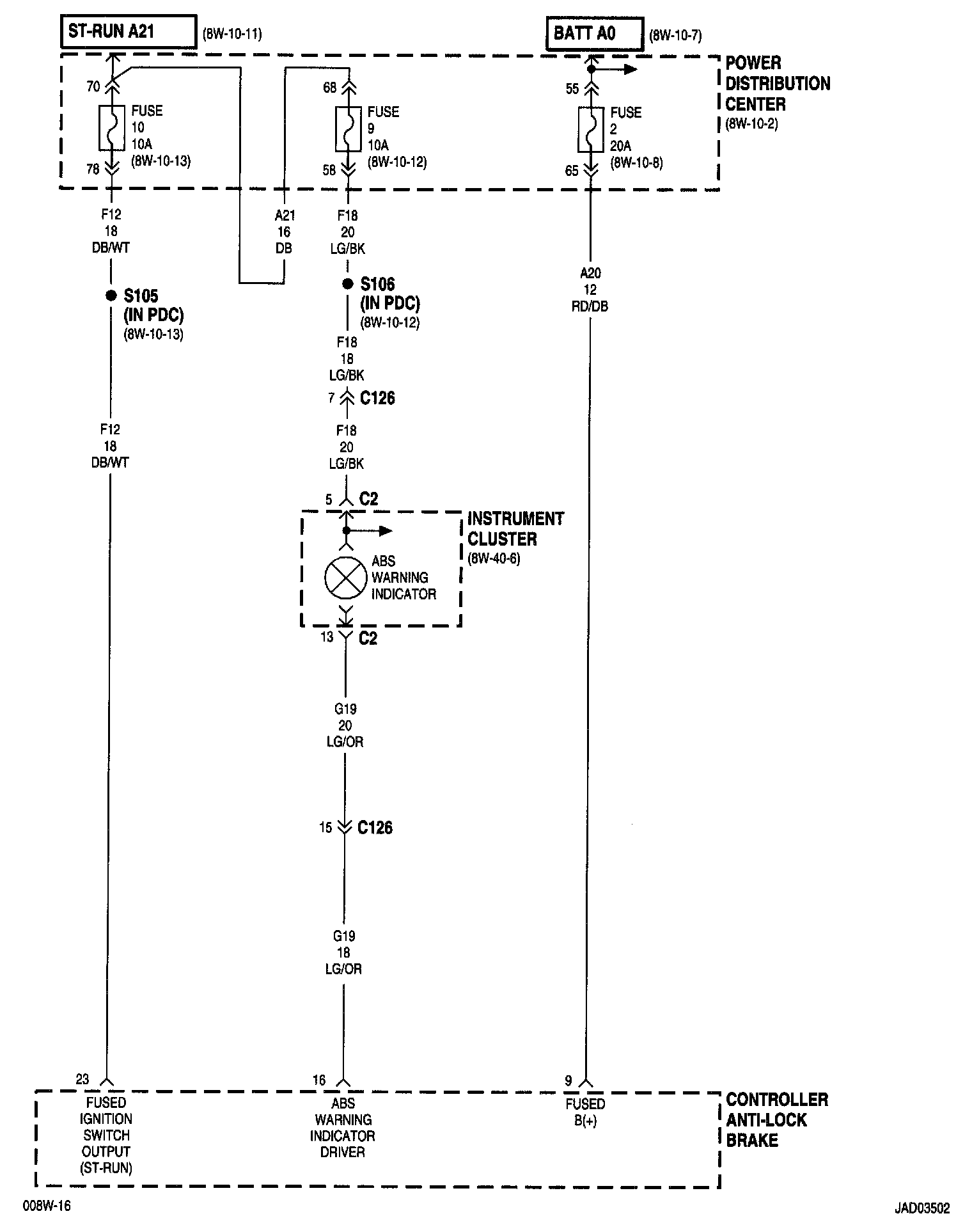

8w-35-2:

ABS Warning Indicator
Controller Anti-Lock Brake
Fuse 2 (PDC)
Fuse 9 (PDC)
Fuse 10 (PDC)
Instrument Cluster
Power Distribution Center

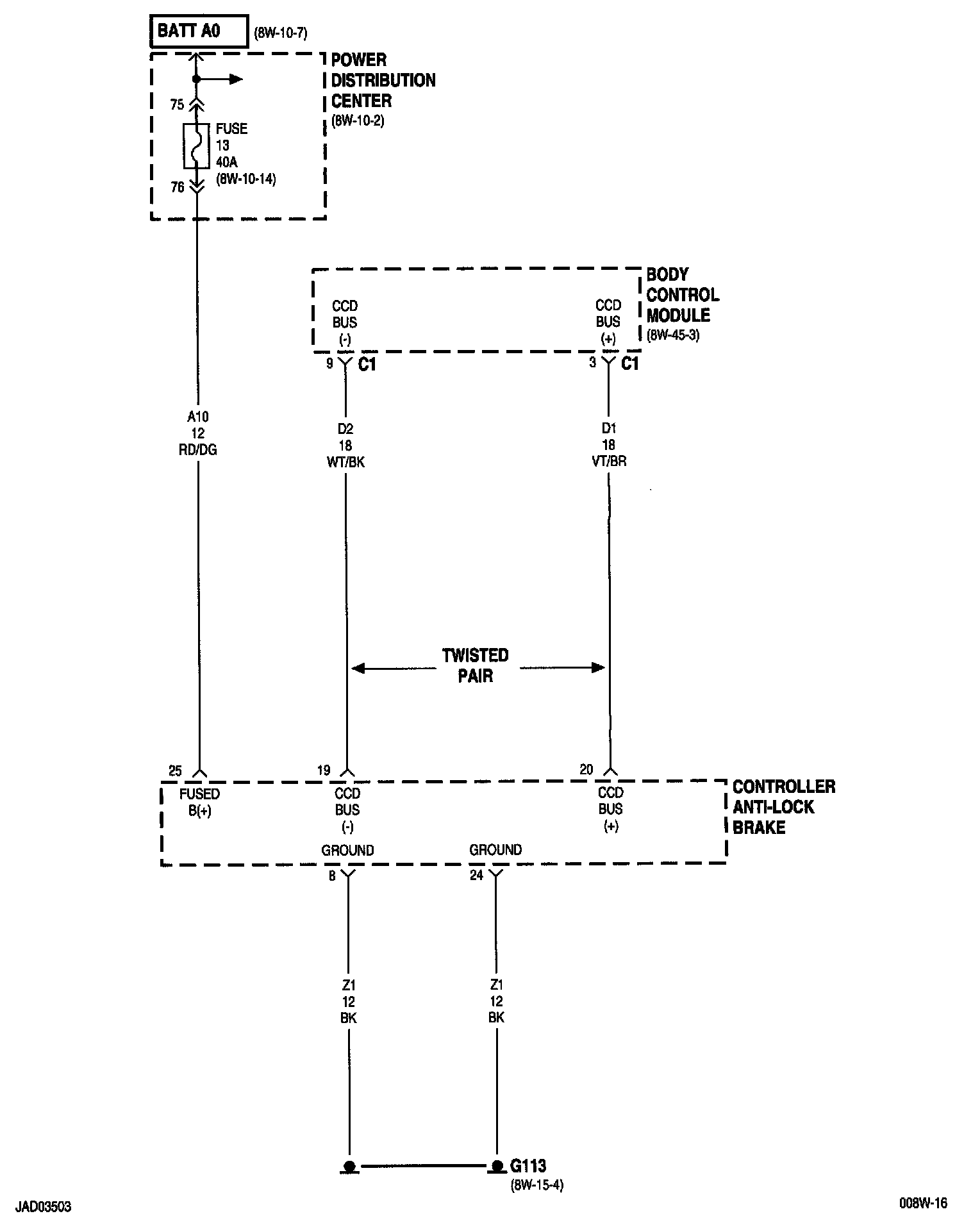

8w-35-3:

Body Control Module
Controller Anti-Lock Brake
Fuse 13 (PDC)
G113
Power Distribution Center

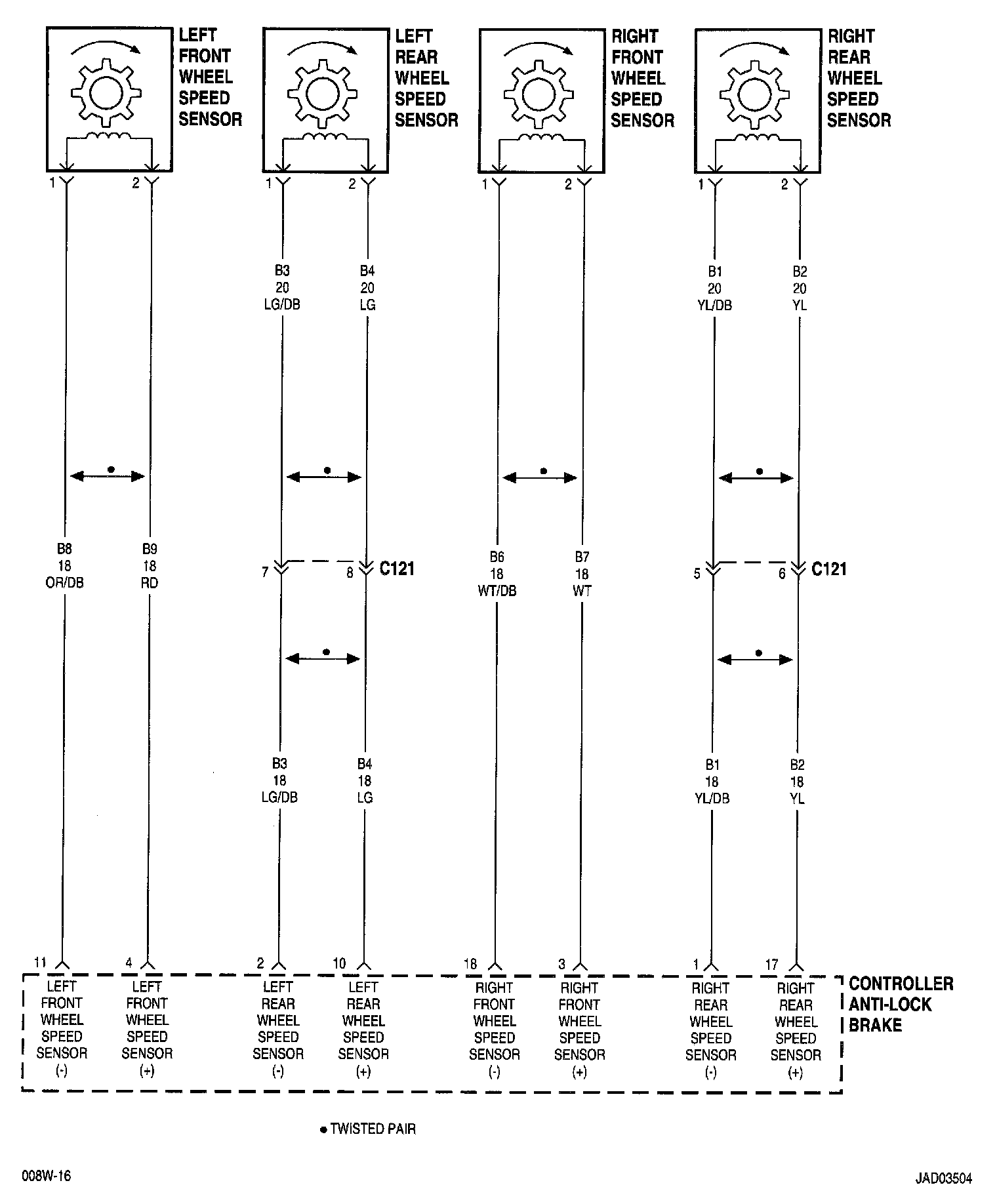

8w-35-4:

Controller Anti-Lock Brake
Left Front Wheel Speed Sensor
Left Rear Wheel Speed Sensor
Right Front Wheel Speed Sensor
Right Rear Wheel Speed Sensor

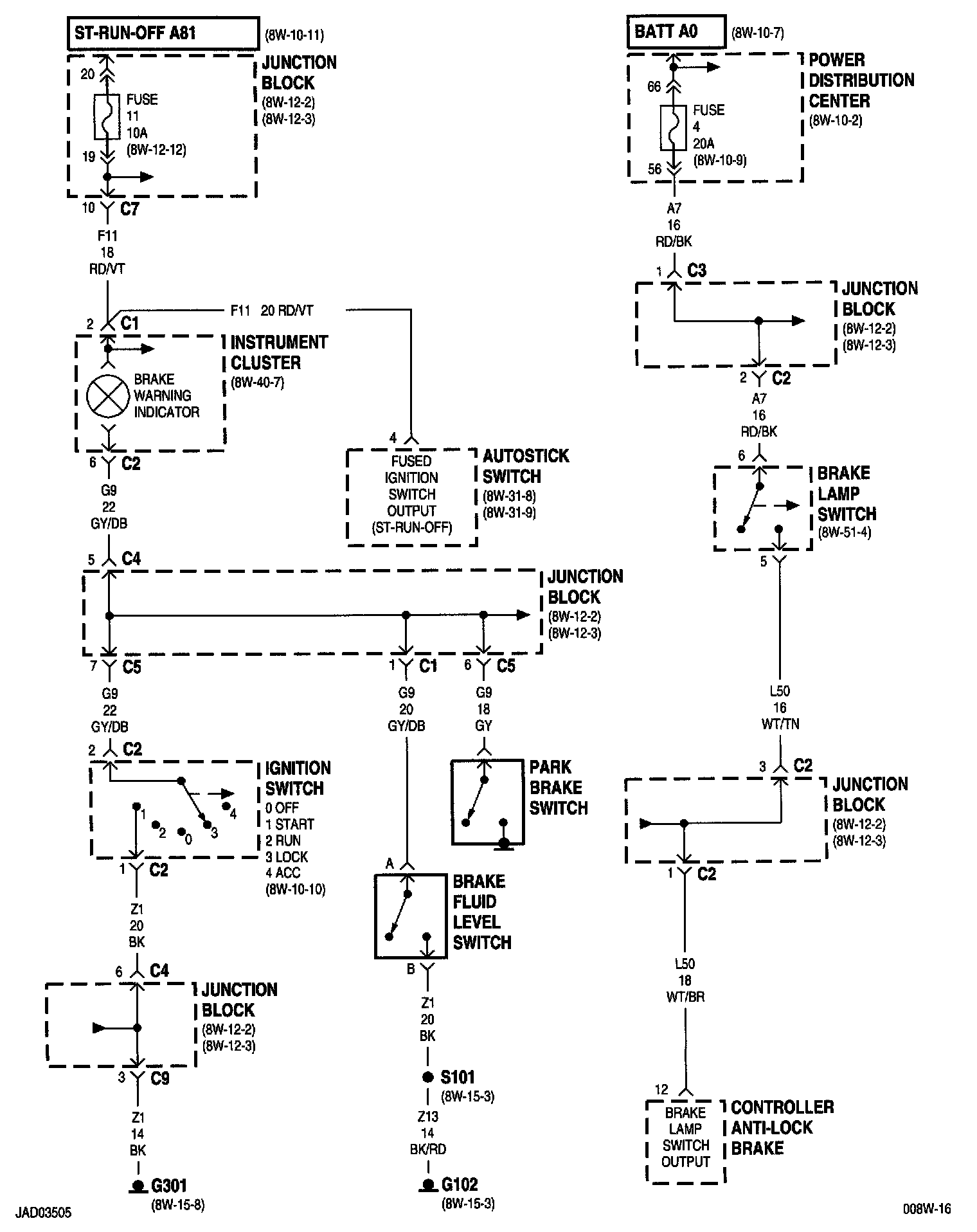

8w-35-5:

Autostick Switch
Brake Lamp Switch
Brake Warning Indicator
Brake Fluid Level Switch
Controller Anti-Lock Brake
Fuse 4 (PDC)
Fuse 11 (JB)
G102
G301
Ignition Switch
Instrument Cluster
Junction Block
Park Brake Switch
Power Distribution Center


NOTE: To view sheets referred to in these diagrams, see Complete Body and Chassis Diagrams Electrical Diagrams
