Dodge
>>
2000
>>
Stratus L4-2.0L VIN C
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Door Lock Actuator
Power Door Lock Actuator

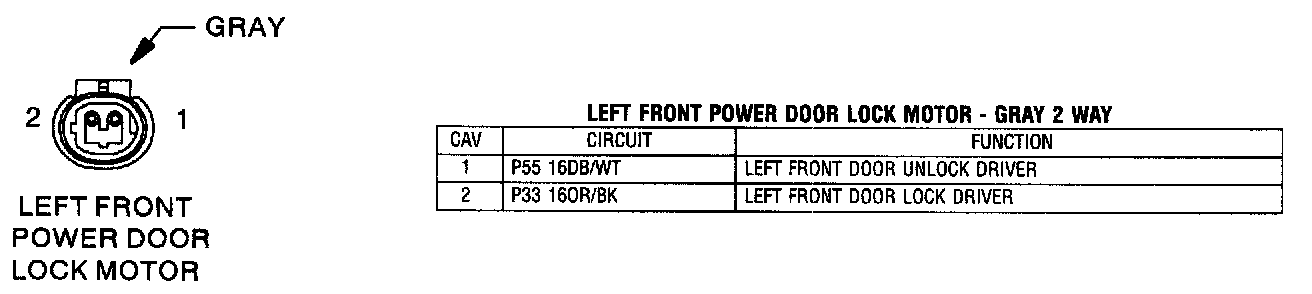

Left Front Power Door Lock Motor:

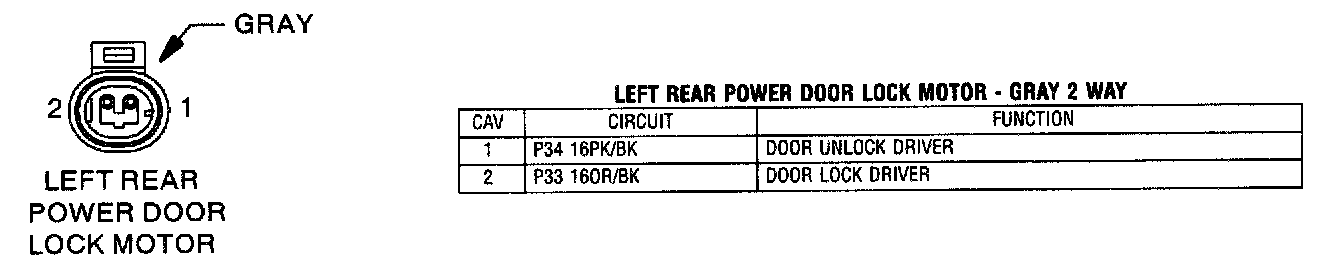

Left Rear Power Door Lock Motor:

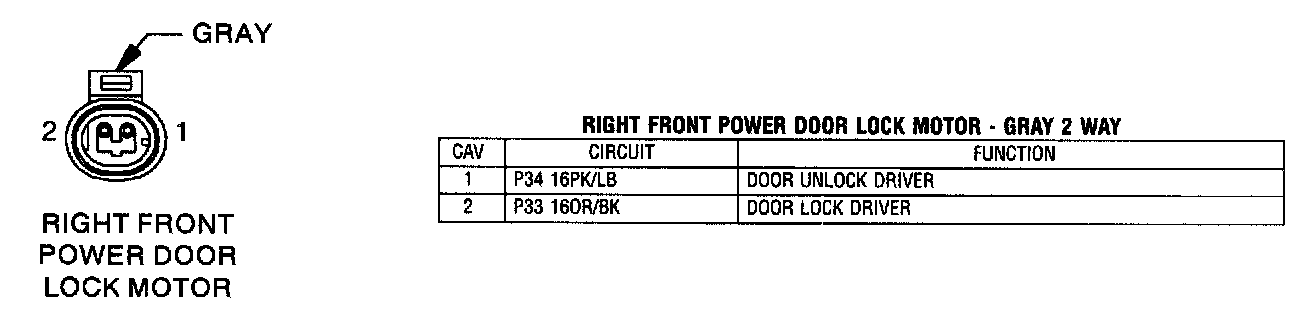

Right Front Power Door Lock Motor:

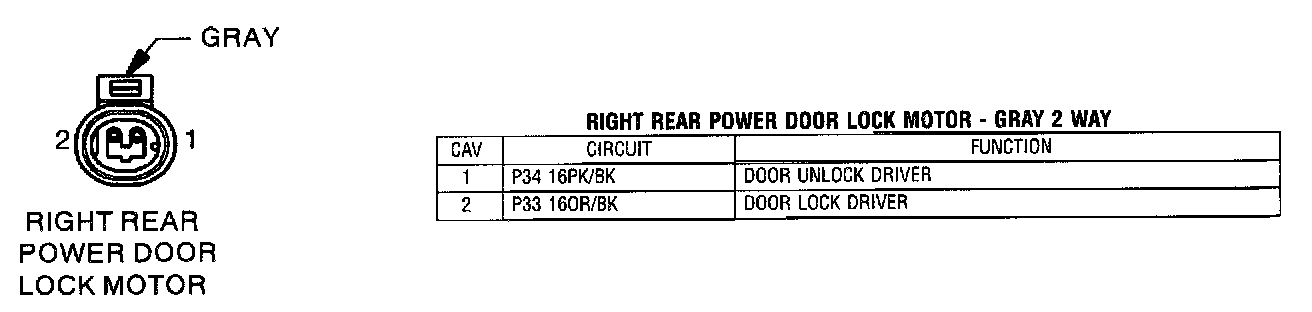

Right Rear Power Door Lock Motor:
