Body Control Module
Body Control Module

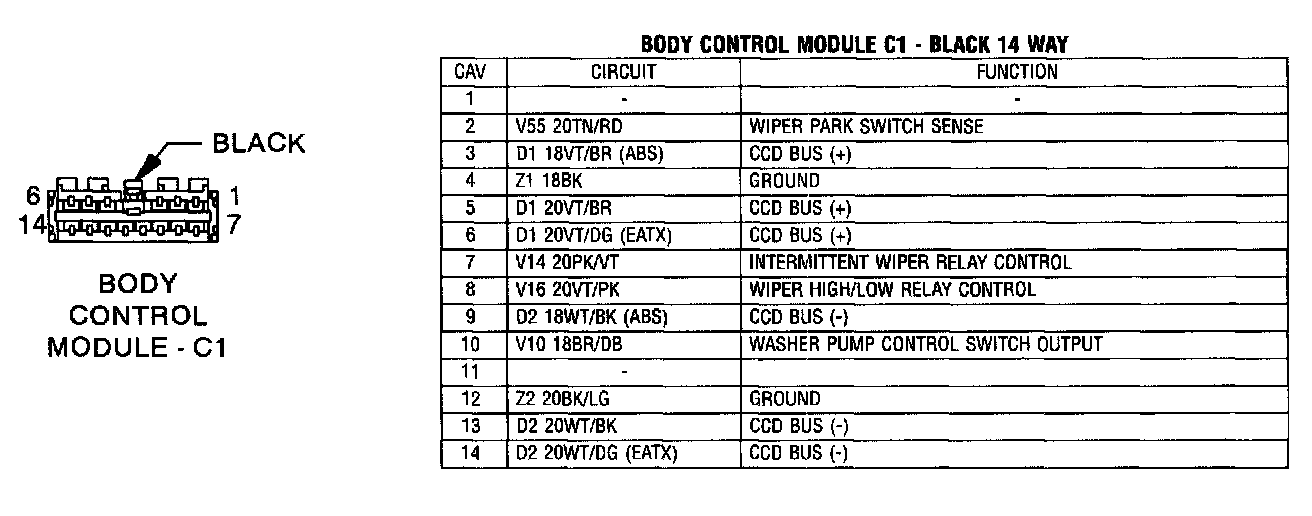

Body Control Module - C1:

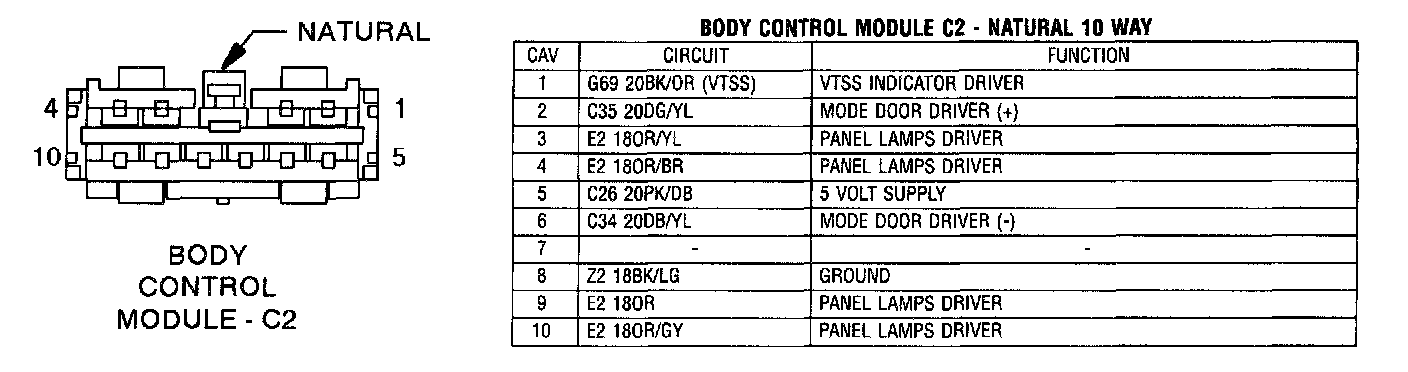

Body Control Module - C2:

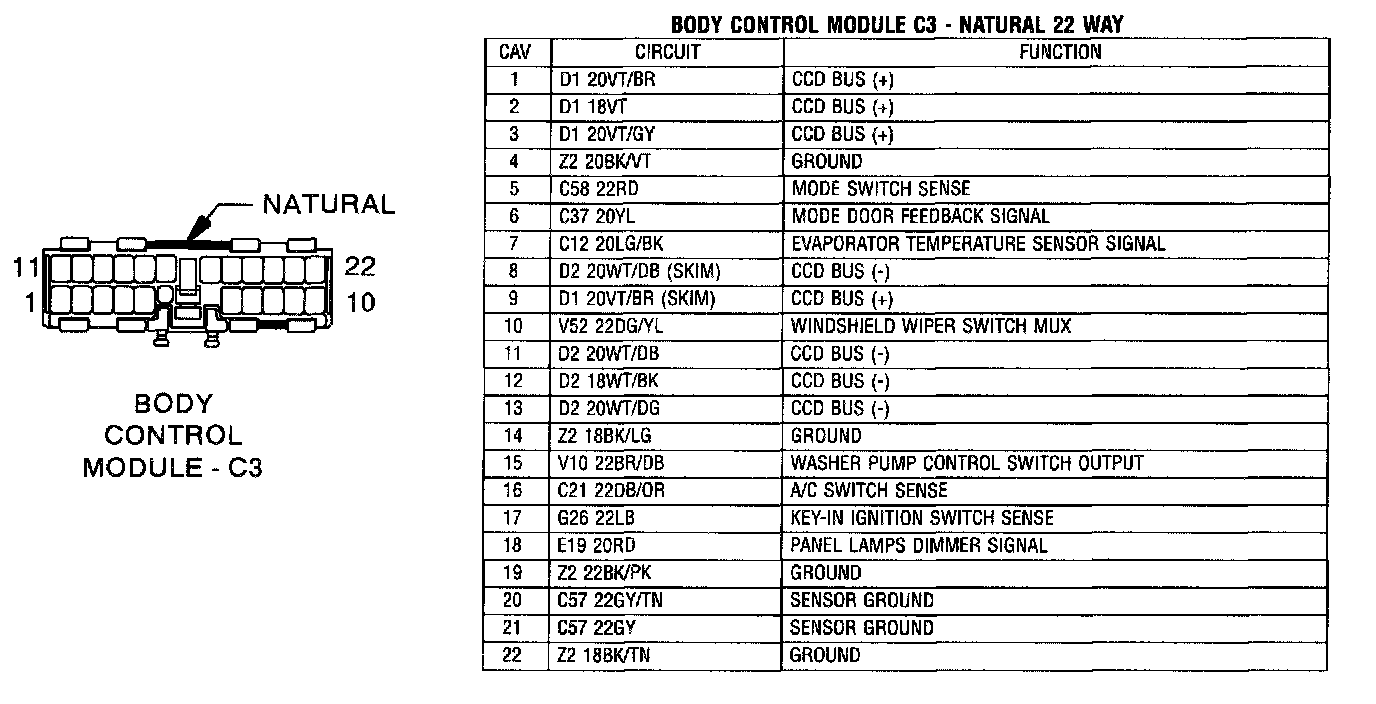

Body Control Module - C3:

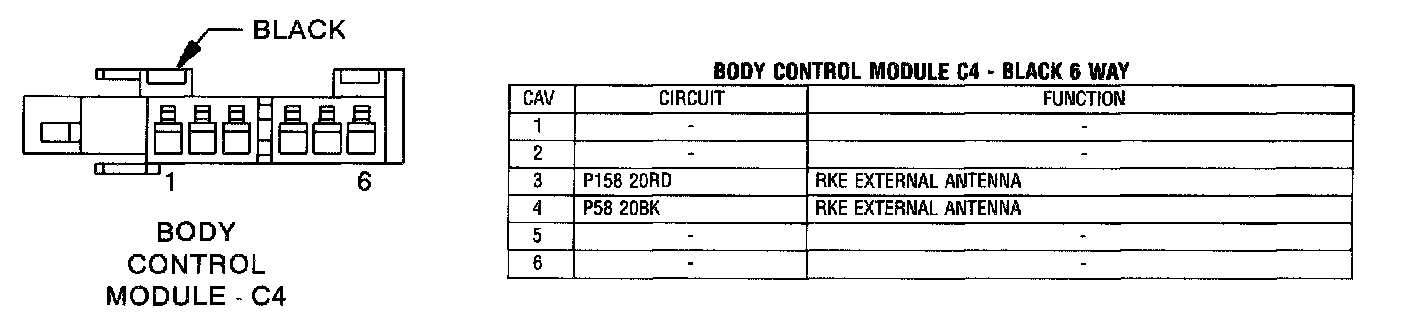

Body Control Module - C4:

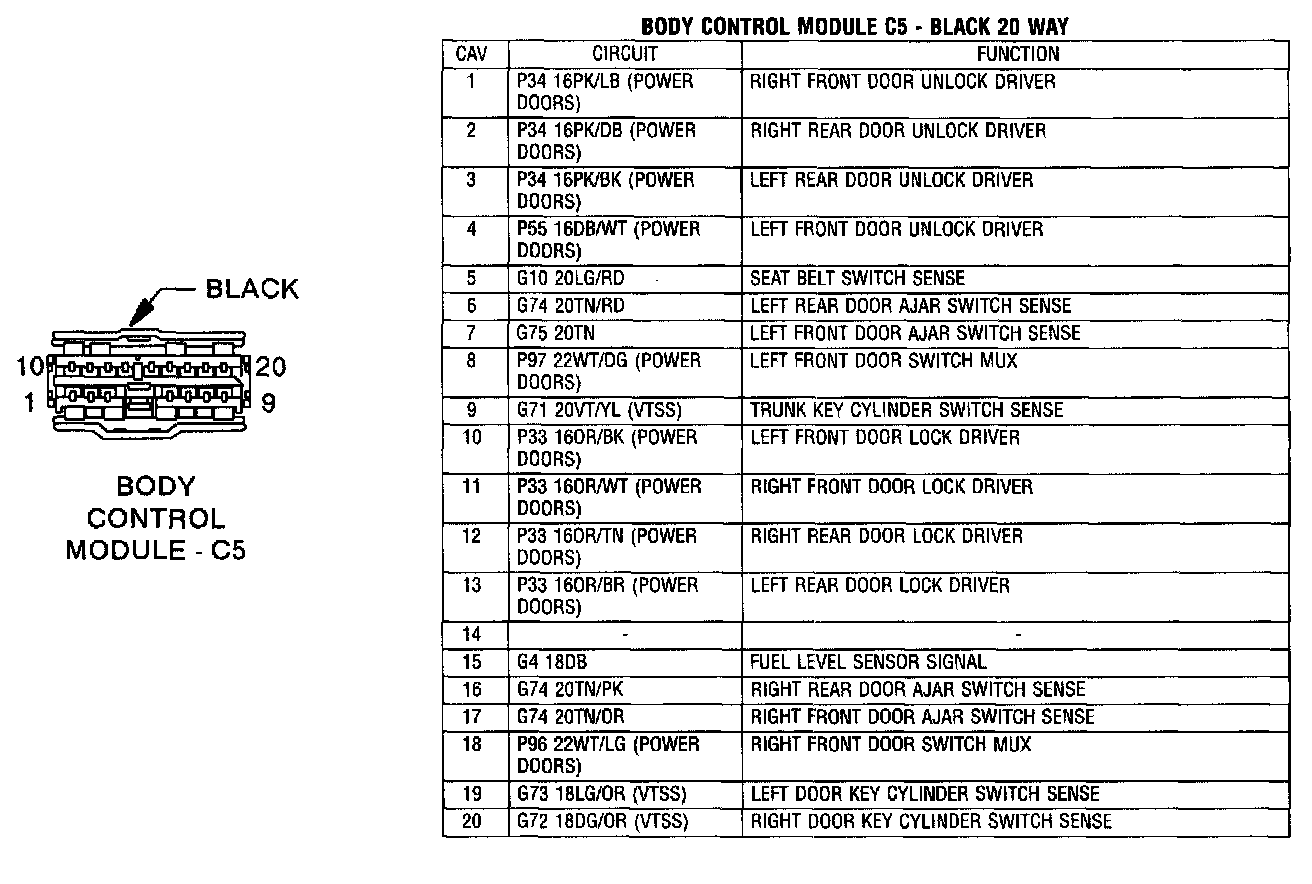

Body Control Module - C5:

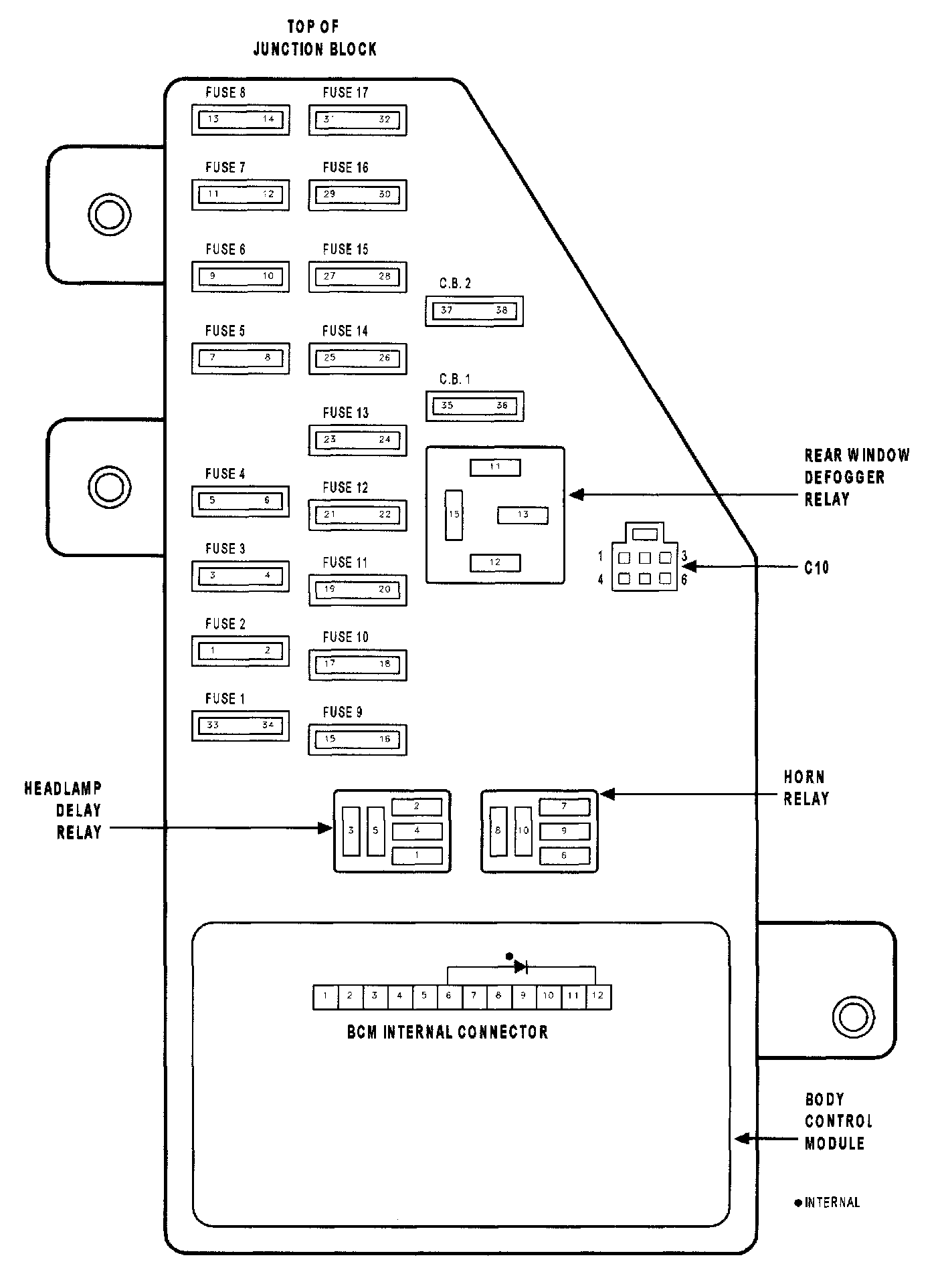

Junction Block:

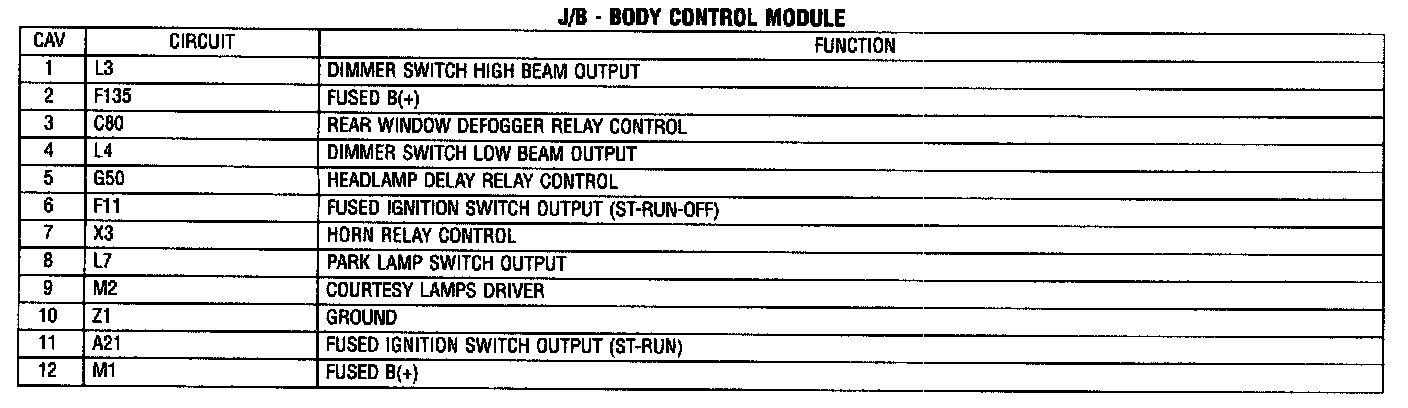

J/B - Body Control Module:
