Intake Air Temp/Manifold Absolute Pressure Sensor

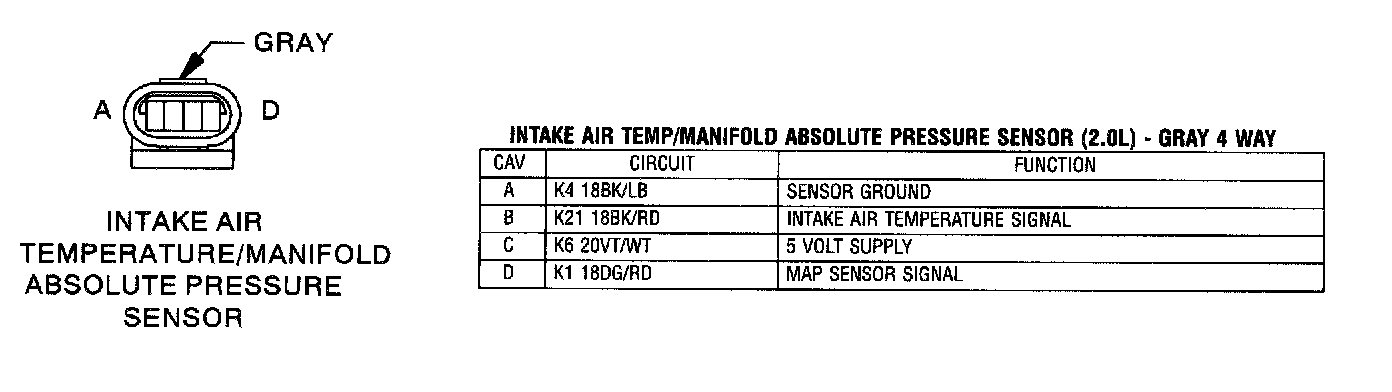

Intake Air Temperature/Manifold Absolute Pressure Sensor:

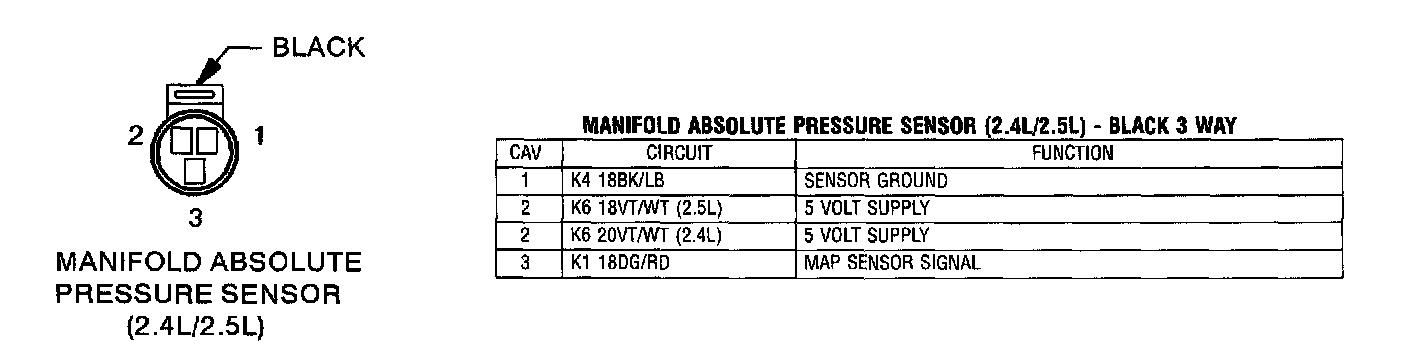

Manifold Absolute Pressure Sensor:
