Secondary Rear Sill Weatherstrip

SECONDARY REAR SILL WEATHERSTRIP

REMOVAL

1. Open rear door.
2. Using fork tool (C-4828), disengage push in fasteners attaching secondary sill weatherstrip to bottom of door.

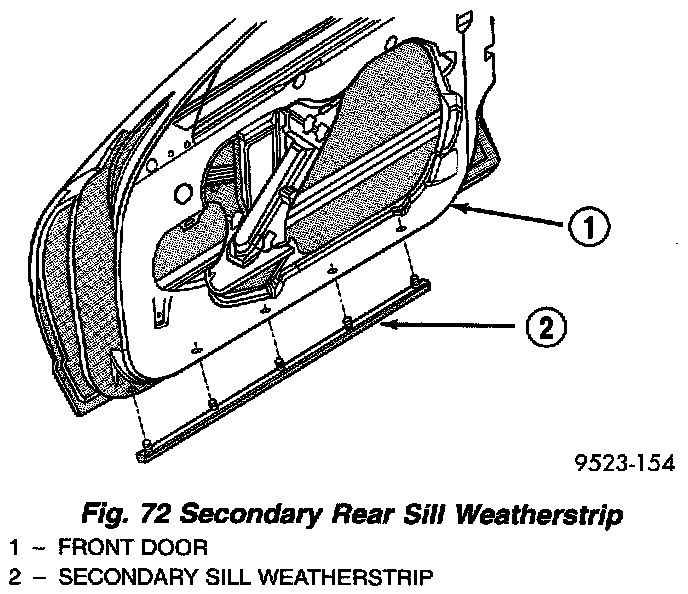

Fig. 72:

3. Remove secondary rear sill weatherstrip from vehicle (Fig. 72).

INSTALLATION

1. Place secondary rear sill weatherstrip into position.
2. Engage push in fasteners attaching secondary sill weatherstrip to bottom of door.
3. Close rear door.
