Rear Door B-Pillar Seal

REAR DOOR B-PILLAR SEAL

REMOVAL

1. Using a suitable heat gun, warm seal to approximately 100 degrees F to ease adhesive separation.

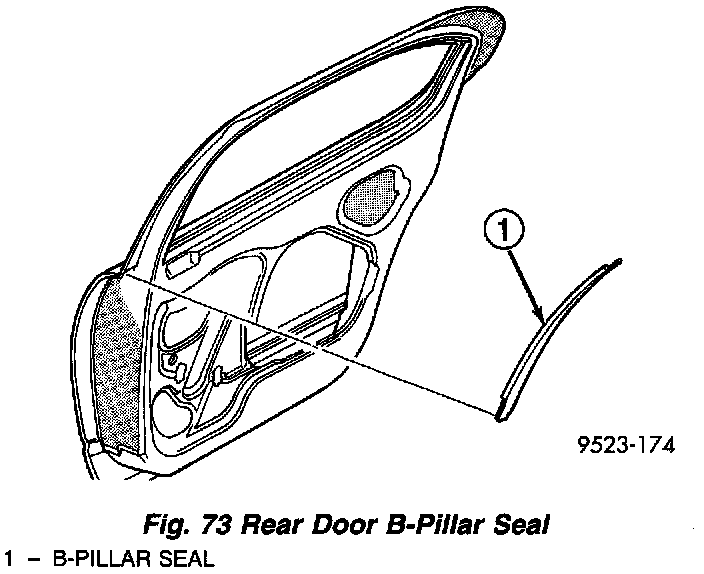

Fig. 73:

2. Peel B-pillar seal from upper door frame, top to bottom (Fig. 73).
3. Clean adhesive residue from door frame.

INSTALLATION

1. If original seal is reused, clean adhesive residue from back of seal.
2. Apply body side molding tape to back of seal.
3. Peel protective paper from back of tape.
4. Place cutout in seal around screw head at bottom of seal location.
5. Align seal to edge of door frame.
6. Press adhesive onto door frame.
