Drip Rail Weatherstrip

DRIP RAIL WEATHERSTRIP

REMOVAL

1. Open front and rear doors.
2. Starting at the bottom of the A-pillar; pull the drip rail weatherstrip from the windshield side molding.
3. Pull the drip rail weatherstrip from the roof rail pinch flange above door openings.

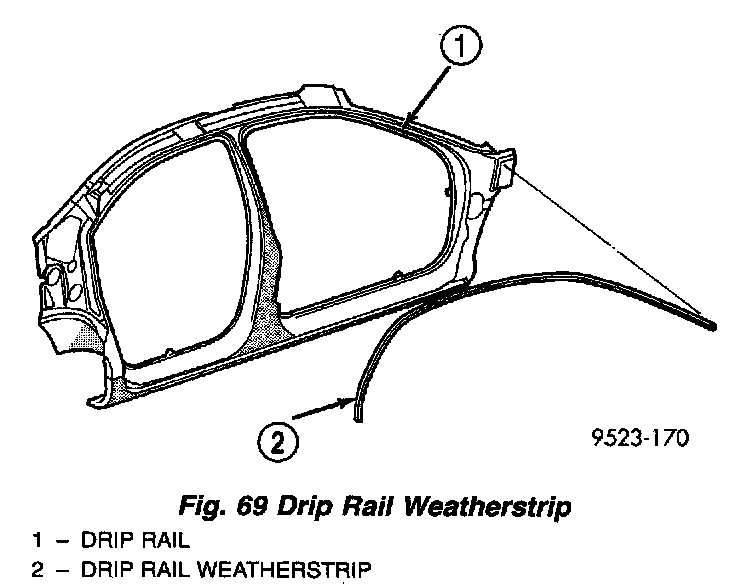

Fig. 69:

4. Remove drip rail weatherstrip from vehicle (Fig. 69).

INSTALLATION

1. Place drip rail weatherstrip into position.
2. Push drip rail weatherstrip on to the roof rail pinch flange above door openings.
3. Starting at the bottom of the A-pillar; push the drip rail weatherstrip on to the windshield side molding.
4. Close front and rear doors.
