Accessory Drive Belt Splash Shield

ACCESSORY DRIVE BELT SPLASH SHIELD

REMOVAL

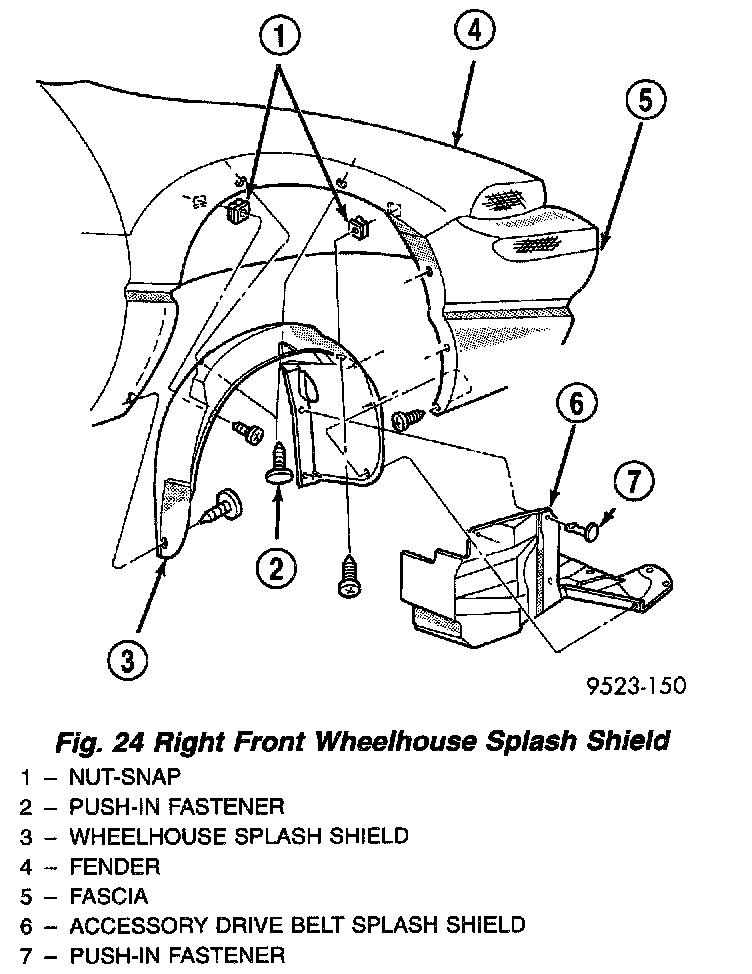

Fig. 24:

1. Remove screw attaching accessory drive belt splash shield to front fender (Fig. 24).
2. Remove push-in fasteners attaching accessory drive belt splash shield to frame rail.
3. Remove accessory drive belt splash shield from vehicle.

INSTALLATION

1. Place accessory drive belt splash shield into position.
2. Install push-in fasteners attaching accessory drive belt splash shield to frame rail.
3. Install screw attaching accessory drive belt splash shield to front fender.
