Power Door Lock Switch: Testing and Inspection

Door Lock Switch Continuity Test:

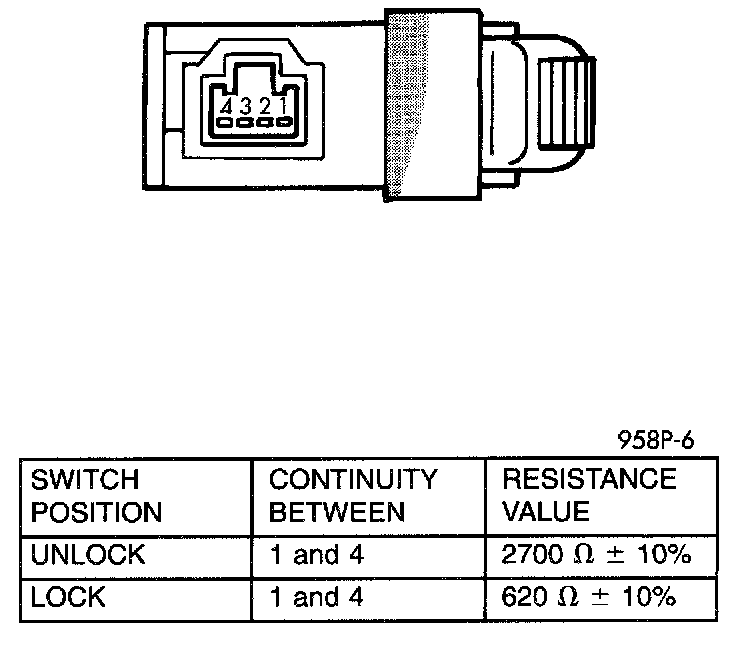

Remove the switch from its mounting location. Using an ohmmeter, test door lock switch continuity. Refer to the above diagram and move the switch to the Lock and Unlock positions. If the resistance values are not obtained, replace the switch.
