Rear Seat Cushion Cover

REAR SEAT CUSHION COVER

REMOVAL

1. Remove rear seat cushion.

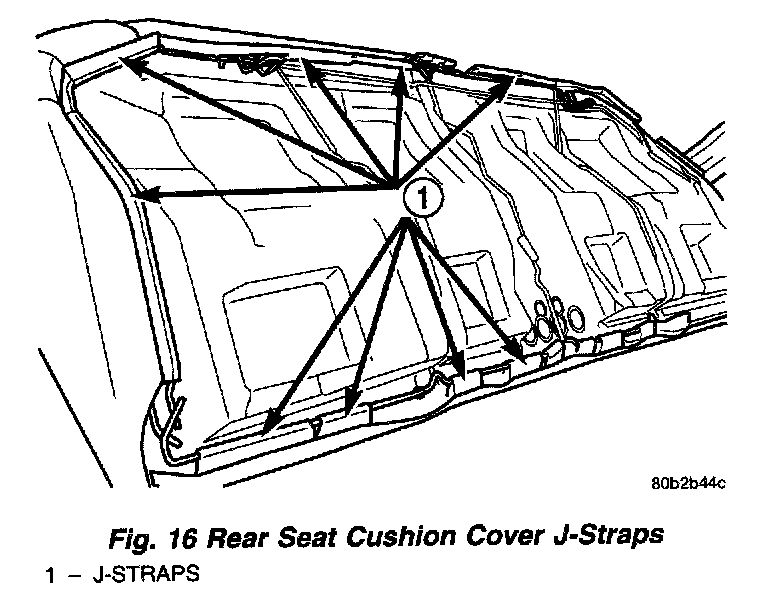

Fig. 16:

2. Disengage the J-strap retainers (Fig. 16).

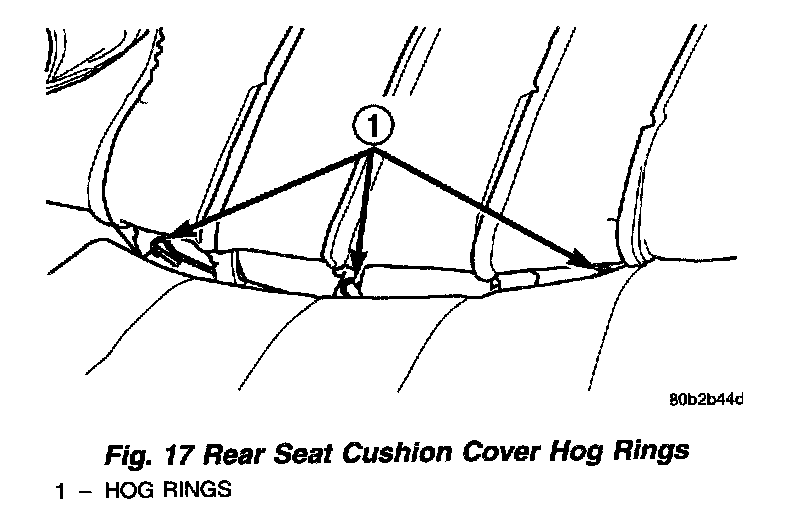

Fig. 17:

3. Cut hog rings to free cover (Fig. 17).
4. Remove seat cushion cover from seat cushion.

INSTALLATION

1. Position seat cushion cover on cushion.
2. Install hog rings to seat cover.
3. Engage the J-strap retainers.
4. Steam wrinkles from seat cushion, if necessary.
5. Install seat cushion.
