Rear Seat Cushion

REAR SEAT CUSHION

NOTE: Fabric covered cushions are serviced as an assembly.

REMOVAL

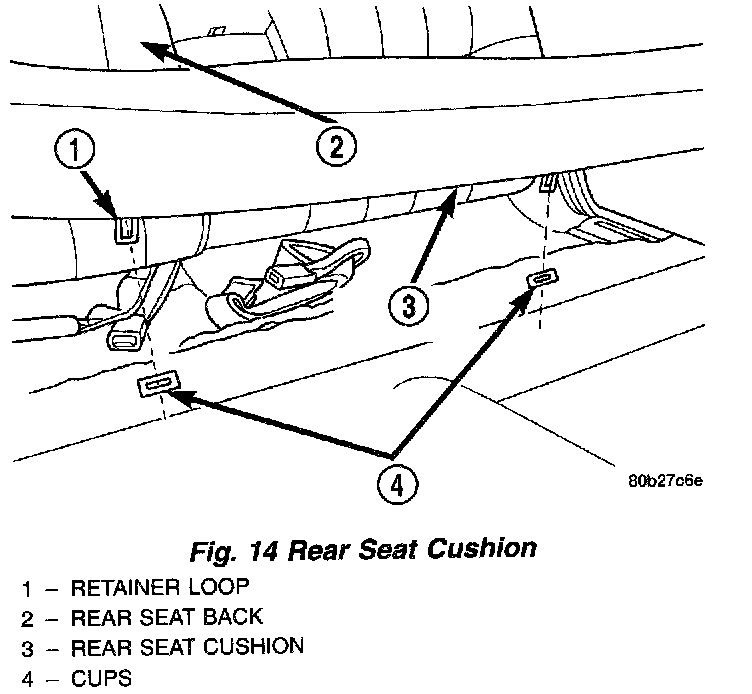

Fig. 14:

1. Pull upward at forward edge of cushion each retainer loop of the rear seat cushion to disengage retainer loops from cups in floor (Fig. 14).
2. Guild seat belts through loops.
3. Remove rear seat cushion from vehicle.

INSTALLATION

1. Place rear seat cushion in position.
2. Guild seat belts through loops.
3. Engage retainer loops into cup on floor kick-up.
4. Push downward at forward edge at each retainer loop of the rear seat cushion to engage retainers.
