Rear Seat Back Latch

REAR SEAT BACK LATCH

REMOVAL

1. Release seat back from latch and fold down.
2. Remove push button trim bezel.

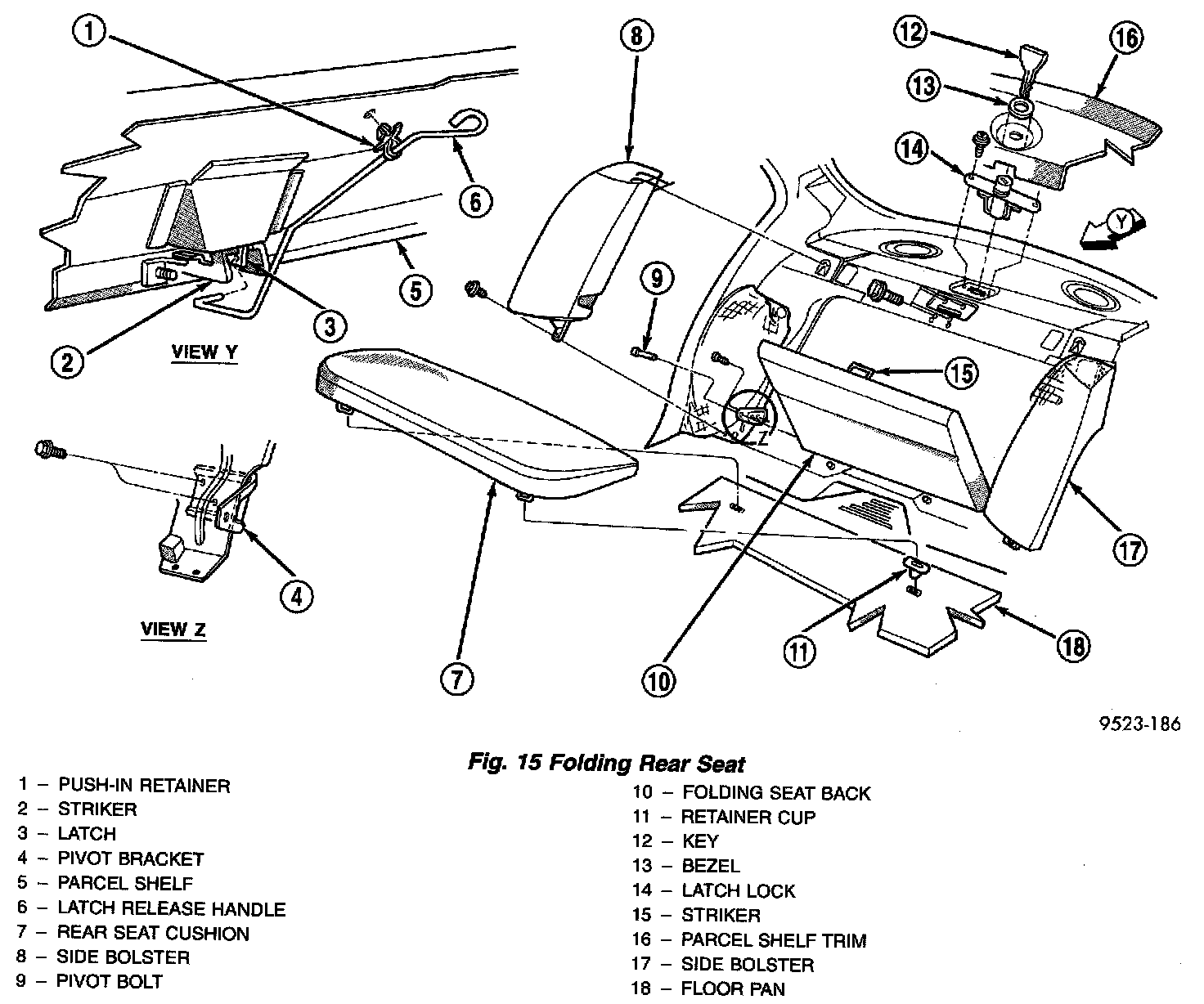

Fig. 15:

3. Partially remove closeout trim for access to latch screws (Fig. 15).
4. Remove four screws from latch lock and remove latch from vehicle.
5. Transfer push button.

INSTALLATION

1. Position push button.
2. Place latch lock in position and install screws.
3. Place latch lock button down into latch lock and install screws.
4. Raise seat back upward and latch into position.
