Front Seat Cushion Side Shields
FRONT SEAT CUSHION SIDE SHIELDREMOVAL
1. Remove seat from vehicle.

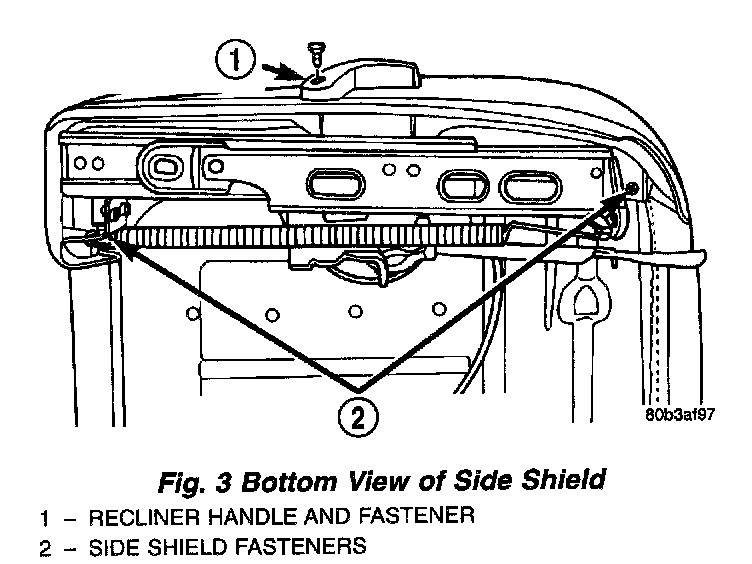

Fig. 3:

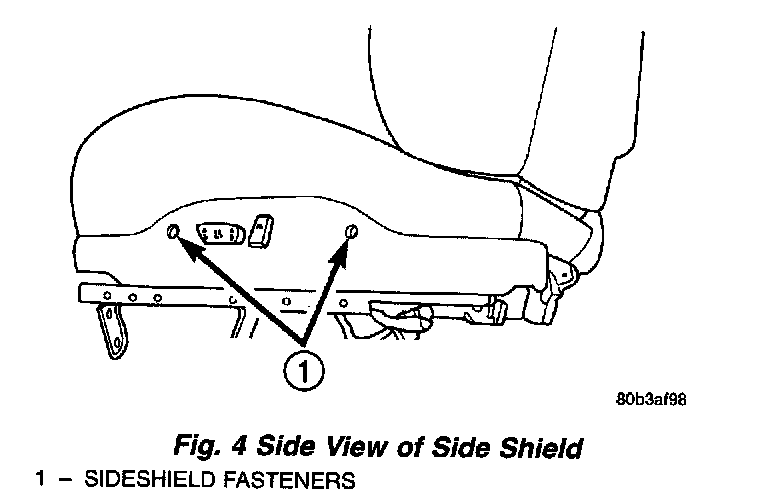

Fig. 4:
2. Remove screws attaching seat cushion side shield to the bottom and side of seat cushion (Fig. 3) and (Fig. 4).
3. Remove shield from seat
4. Disconnect switch wire connectors, if equipped.
5. Remove seat switches, if equipped.
INSTALLATION
1. Transfer seat switches, if equipped.
2. Connect switch wire connectors to cushion side shield, if equipped.
3. Place shield in position on seat cushion.
4. Install screws attaching seat cushion side shield
5. Install seat. Tighten front screws to 61 N.m (45 ft.lbs.) and the rear screws to 61 N.m (45 ft.lbs.).
