Front Seat Back

FRONT SEAT BACK

REMOVAL

1. Remove seat from vehicle.
2. Remove seat cushion side shields.

NOTE: Do not reuse the recliner assembly attaching bolts.

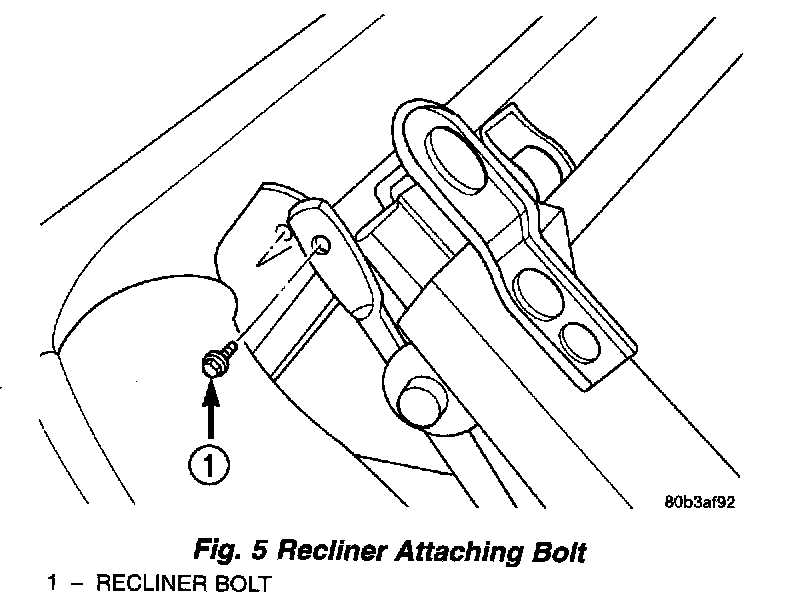

Fig. 5:

3. Remove bolts attaching recliner to seat back cushion frame (Fig. 5).

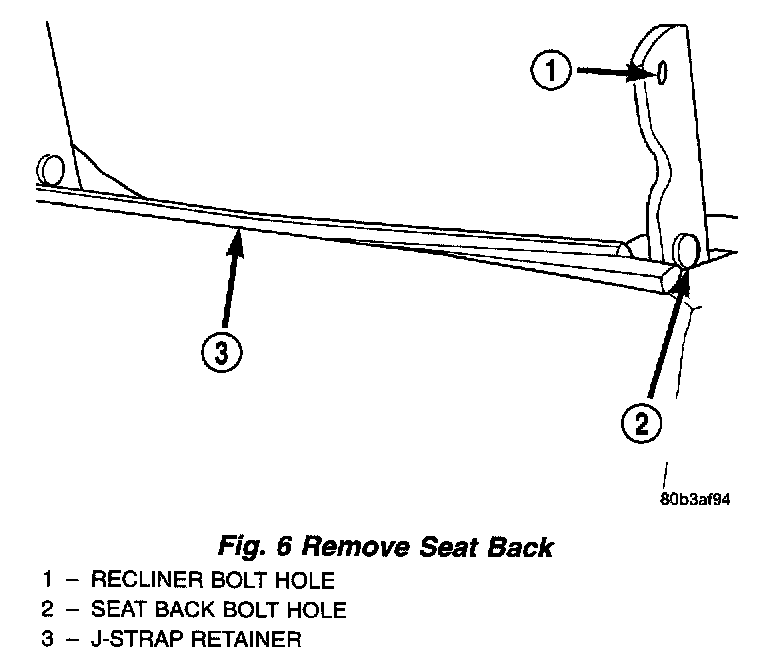

Fig. 6:

4. Remove pivot bolts (Fig. 6).
5. Disconnect any electrical connectors to the seat back, if equipped.
6. Remove seat back from seat cushion.

INSTALLATION

1. Position seat back on cushion.
2. Install inboard pivot bolt. Tighten bolt to 40 N.m (30 ft.lbs.) torque.

NOTE: Do not reuse the recliner assembly attaching bolts.

3. Install bolts attaching recliner to seat cushion frame. Tighten bolts to 12 N.m (9 ft.lbs.) torque.
4. Install seat cushion side shields.
5. Install seat in vehicle.
