Front Seat Adjusters - Power
FRONT SEAT ADJUSTER - POWER SEATREMOVAL
1. Remove front seat from vehicle.
2. Remove seat cushion side shield and disconnect switch connector.
3. Remove seat back.

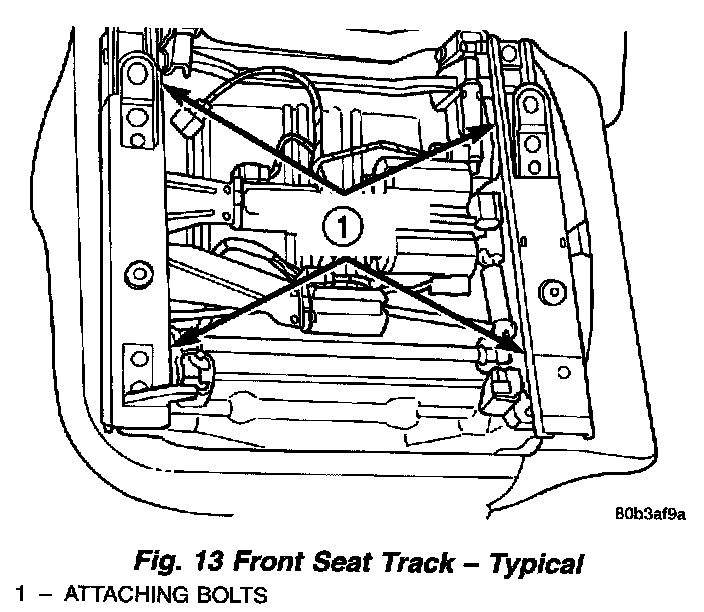

Fig. 13:
4. Remove bolts attaching seat adjuster to cushion pan (Fig. 13).
5. Disconnect wire harness fasteners from cushion pan.
6. Remove seat adjuster from seat cushion.
INSTALLATION
1. Place seat adjuster in position on seat cushion pan.
2. Connect wire harness fasteners to the cushion pan.
3. Install bolts attaching seat adjuster to cushion pad.
4. Install seat back.
5. Install bolt to attach seat back recliner to seat back on each side of seat. Tighten bolt to 12 N.m (9 ft.lbs.) torque.
6. Connect wire connectors and install the cushion side shields.
7. Install front seat in vehicle
